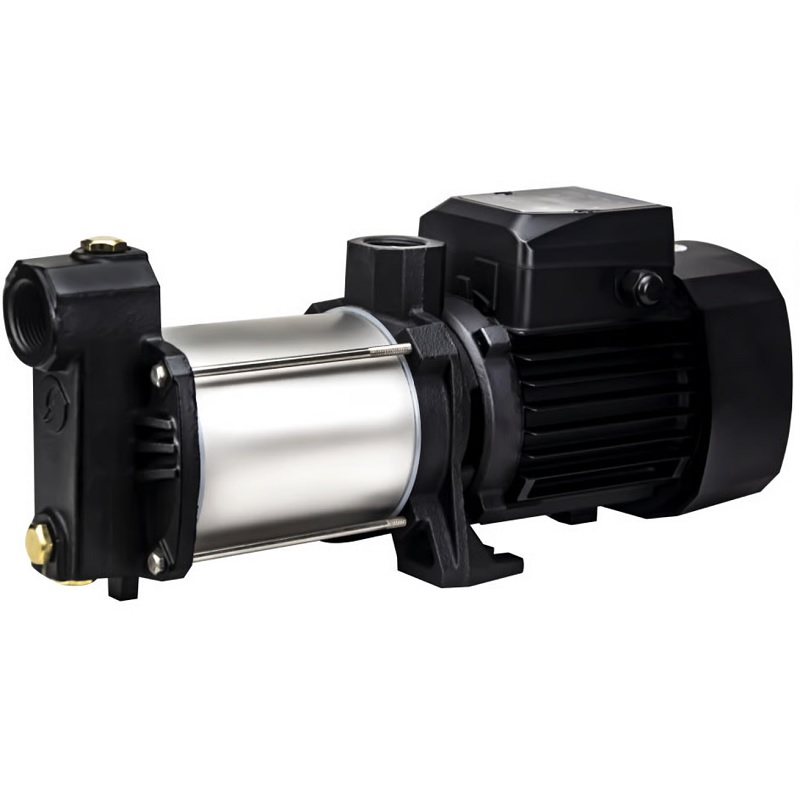

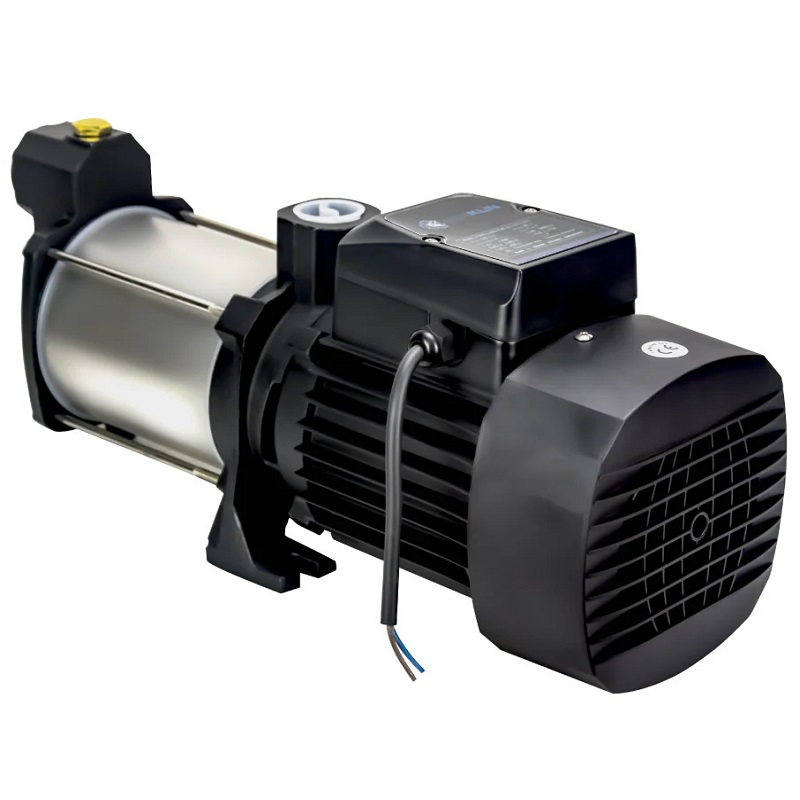

GUT GMK 2200 Centrifugal Pump 1.5 kW. 2.0 HP. 230 V. 8.5 A
Multi-stage centrifugal pump.
Multistage
For domestic, industrial, agricultural, and gardening use.
Silent.
Self-priming up to 8 m if fully primed.
Materials
Pump body in AISI 304.
Pump shaft in AISI 431.
Diffusers and impellers in technopolymer.
Cast iron suction and discharge ports with cataphoresis treatment.
Mechanical seal
Ceramic-graphite.
Ceramic-graphite
Motor housing in aluminum.
NBR/EPDM seals.
Motor
2-pole asynchronous. 2-pole asynchronous.
IPX4 protection.
With external ventilation.
IPX4 Protection
Class B Insulation
Single-phase version with integrated thermal protection.
Limits
Minimum water temperature: 0°C
Maximum water temperature: 60°C
Maximum ambient temperature: 40°C
Maximum permissible pressure: 6 bar
Model: GMK 2100
Voltage: 220 W
Nominal Power: 1500 W
HP: 2 HP
Current: 8.5 A
Length: 534 mm
Height: 258 mm
