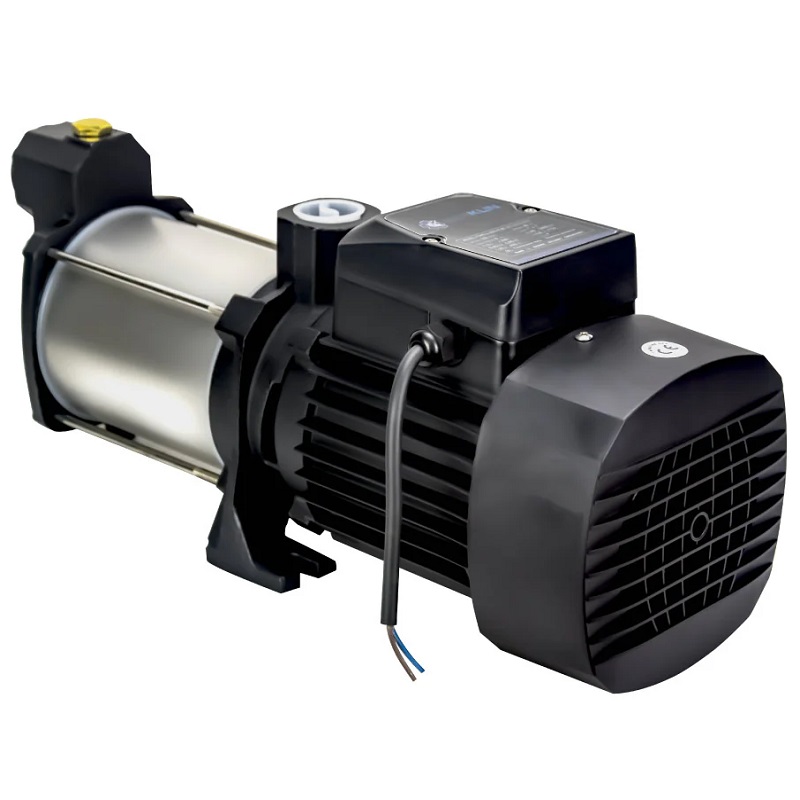

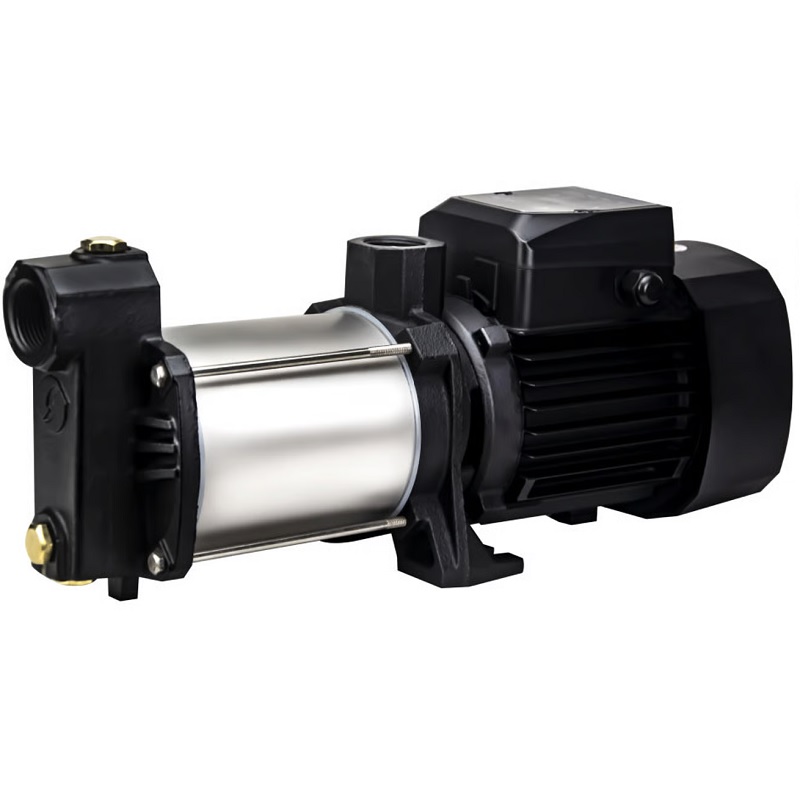

GUT GMK 2150 Centrifugal Pump 1.1 kW. 1.5 HP. 230 V. 7.2 A
Multi-stage centrifugal pump.
Multistage
For domestic, industrial, agricultural, and gardening use.
Silent.
Self-priming up to 8 m if fully primed.
Materials
Pump body in AISI 304.
Pump shaft in AISI 431.
Diffusers and impellers in technopolymer.
Cast iron suction and discharge with cataphoresis treatment.
Ceramic-graphite.
Aluminum motor housing.
NBR/EPDM seals.
Motor
2-pole asynchronous. 2-pole asynchronous.
IPX4 protection.
With external ventilation.
IPX4 Protection
Class B insulation.
Single-phase version with integrated thermal protection.
Limits
Minimum water temperature: 0°C.
Maximum water temperature: 60°C.
Maximum ambient temperature: 40°C.
Maximum permissible pressure: 6 bar
Model: GMK 2150
Voltage: 220 W
Nominal power: 1100 W
HP: 1.5 HP
Current: 5.4 A
Length: 509 mm
Height: 258 mm
