Home/DIY and home automation/Heaters and boilers/Heat pump/Panasonic KIT-WC16K6E5 16 kW heat pump. Bibloc (230 V) R32, Wi-Fi included
Please sign in so that we can notify you about a reply

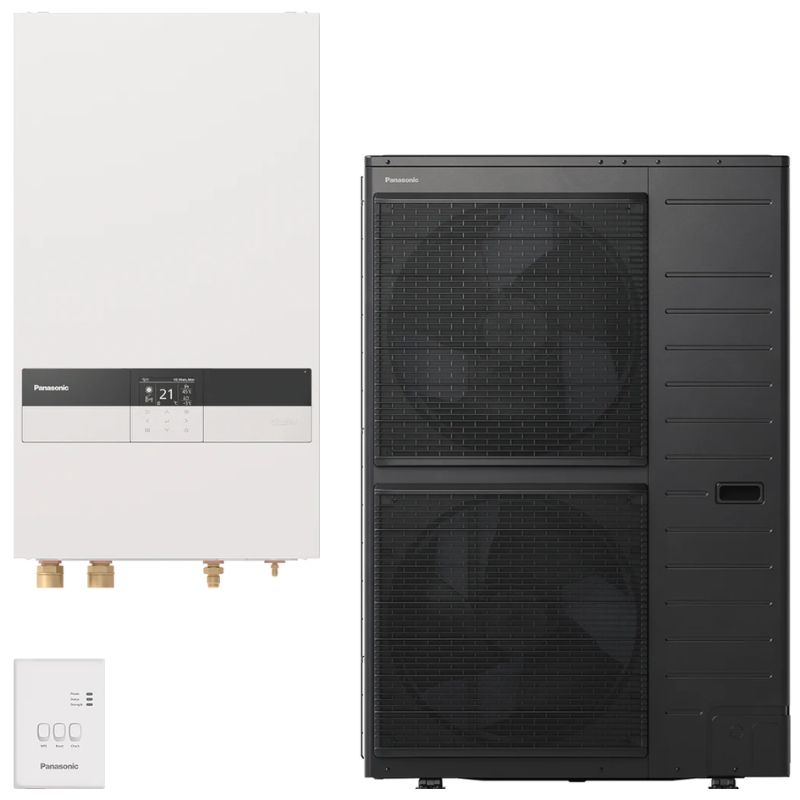

Panasonic KIT-WC16K6E5 16 kW heat pump. Bibloc (230 V) R32, Wi-Fi included
Flexibility and efficiency thanks to split connection. The Panasonic Aquarea Split High Performance K Series Single-Phase range offers a high-performance air conditioning and domestic hot water (DHW) production solution using the environmentally friendly R32 refrigerant. Split technology separates the outdoor unit from the indoor unit, providing greater installation flexibility and is ideal for homes with limited interior space.
With power ranging from 3 to 16 kW, this series adapts to different heating needs and offers excellent energy performance. Common technical features Split technology: separate indoor and outdoor units Single-phase range from 3.2 to 16 kW R32 refrigerant, more efficient and with low environmental impact Energy class A+++ / A++ (heating 35°C / 55°C) SCOP up to 5.12, ensuring high performance even in temperate climates Large cooling and heating capacities Ideal for integration with underfloor heating, radiators, and fan coil units
Description
Heating capacity / COP (at +7°C, W 35°C): 16.00 / 4.31
Heating capacity / COP (at +2°C, W 35°C): 13.00 / 3.18
Seasonal energy efficiency: 6.20 / 4.30 (245 / 169)
Energy class: A+++ / A++

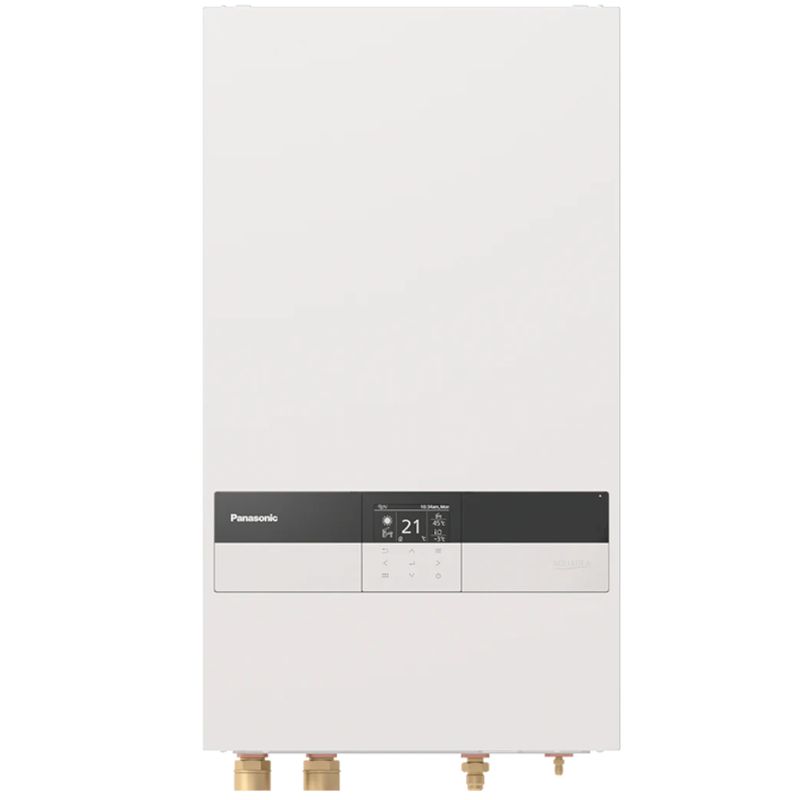

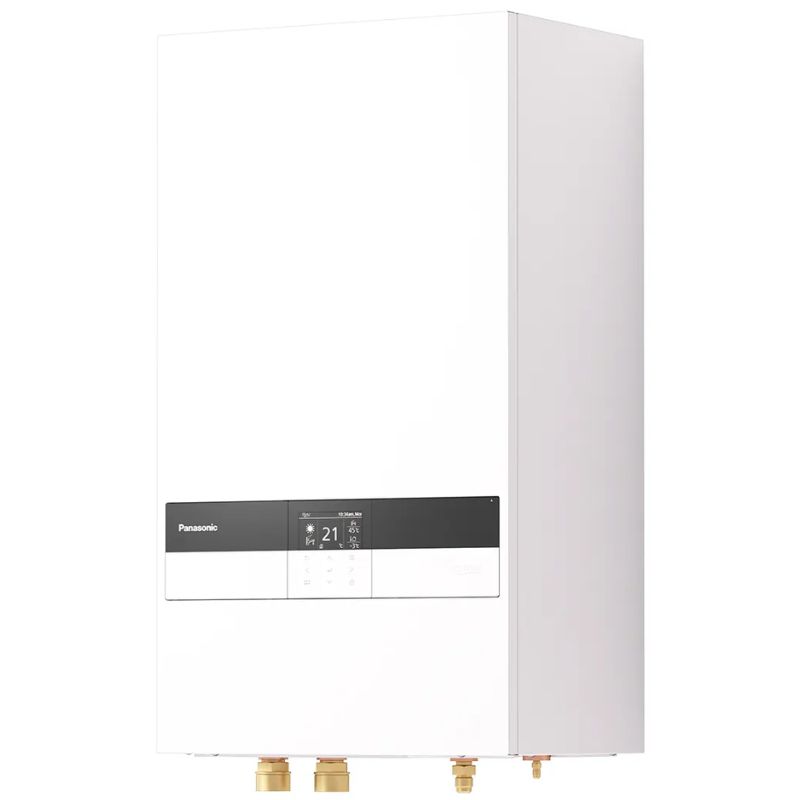

Indoor unit with auxiliary heater: SDC16K6E5
Sound pressure: 33 / 33 dB(A)
Water pipe connection: R 1¼ inches
Speeds: Variable
Power consumption: 145 W
Heating water flow rate (∆T = 5 K, 35 °C): 45.8
Dimensions H x W x D: 892 x 500 x 348 mm
Net weight: 41 kg

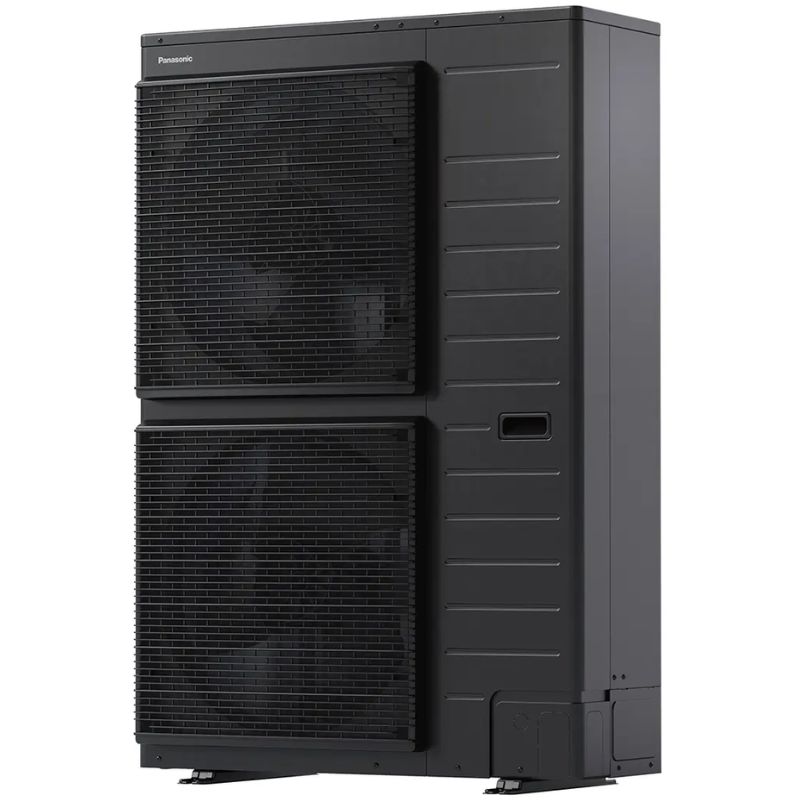

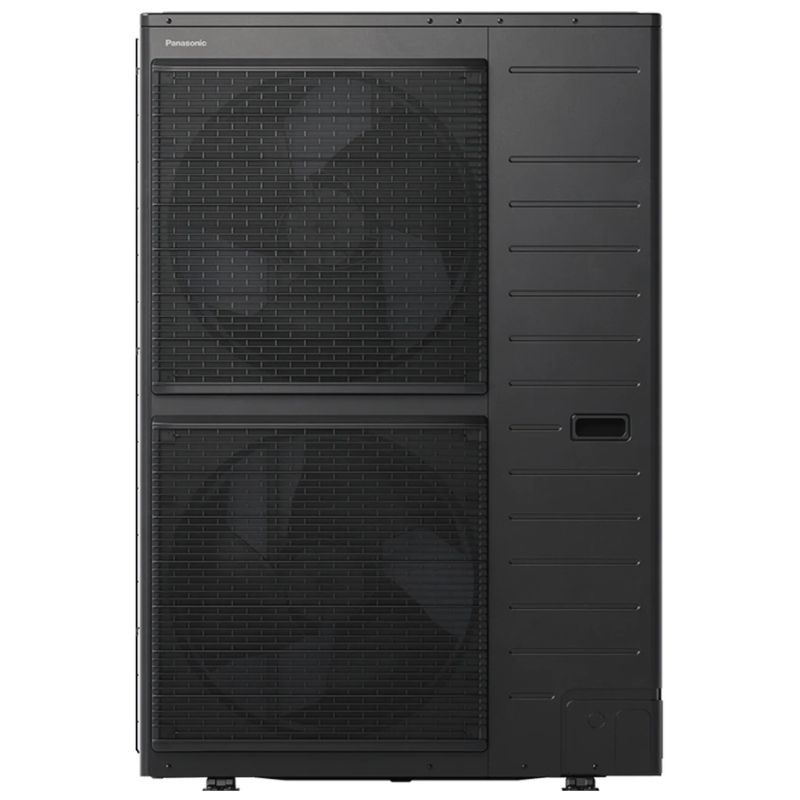

Outdoor unit: WH-UDZ16KE5
Sound level 2) heating: 65 dB(A)
Refrigerant (R32) / CO2: 1.6 / 1.080
Liquid / gas pipe diameter: 1/4 (6.35) / 5/8 (15.88)
Pipe length: 3 to 30 meters
Height difference (inlet/outlet): 20 meters
Precharged hose length: 10 meters
Additional gas quantity: 30 g/m
Operating range
Outdoor temperature
Heating: -25 to +35 °C
Cooling: -10 to +43 °C
Water outlet 4) Heating / Cooling / 20 to 60 / 5 to 20 °C
Minimum power cable cross-section: 3 x 4.0 / 3 x 4.0 mm²
Dimensions H x W x D: 1340 x 900 x 320 mm
Net weight: 88 kg
Flexibility and efficiency thanks to split connection. The Panasonic Aquarea Split High Performance K Series Single-Phase range offers a high-performance air conditioning and domestic hot water (DHW) production solution using the environmentally friendly R32 refrigerant. Split technology separates the outdoor unit from the indoor unit, providing greater installation flexibility and is ideal for homes with limited interior space.
With power ranging from 3 to 16 kW, this series adapts to different heating needs and offers excellent energy performance. Common technical features Split technology: separate indoor and outdoor units Single-phase range from 3.2 to 16 kW R32 refrigerant, more efficient and with low environmental impact Energy class A+++ / A++ (heating 35°C / 55°C) SCOP up to 5.12, ensuring high performance even in temperate climates Large cooling and heating capacities Ideal for integration with underfloor heating, radiators, and fan coil units
Description
Heating capacity / COP (at +7°C, W 35°C): 16.00 / 4.31
Heating capacity / COP (at +2°C, W 35°C): 13.00 / 3.18
Seasonal energy efficiency: 6.20 / 4.30 (245 / 169)
Energy class: A+++ / A++
Indoor unit with auxiliary heater: SDC16K6E5
Sound pressure: 33 / 33 dB(A)
Water pipe connection: R 1¼ inches
Speeds: Variable
Power consumption: 145 W
Heating water flow rate (∆T = 5 K, 35 °C): 45.8
Dimensions H x W x D: 892 x 500 x 348 mm
Net weight: 41 kg
Outdoor unit: WH-UDZ16KE5
Sound level 2) heating: 65 dB(A)
Refrigerant (R32) / CO2: 1.6 / 1.080
Liquid / gas pipe diameter: 1/4 (6.35) / 5/8 (15.88)
Pipe length: 3 to 30 meters
Height difference (inlet/outlet): 20 meters
Precharged hose length: 10 meters
Additional gas quantity: 30 g/m
Operating range
Outdoor temperature
Heating: -25 to +35 °C
Cooling: -10 to +43 °C
Water outlet 4) Heating / Cooling / 20 to 60 / 5 to 20 °C
Minimum power cable cross-section: 3 x 4.0 / 3 x 4.0 mm²
Dimensions H x W x D: 1340 x 900 x 320 mm
Net weight: 88 kg
