Home/DIY and home automation/Heaters and boilers/Gas water heaters/Wolf HA-11/14-230V Monobloc Air-to-Air Heat Pump, 14.0 kW
Please sign in so that we can notify you about a reply
Wolf HA-11/14-230V Monobloc Air-to-Air Heat Pump, 14.0 kW

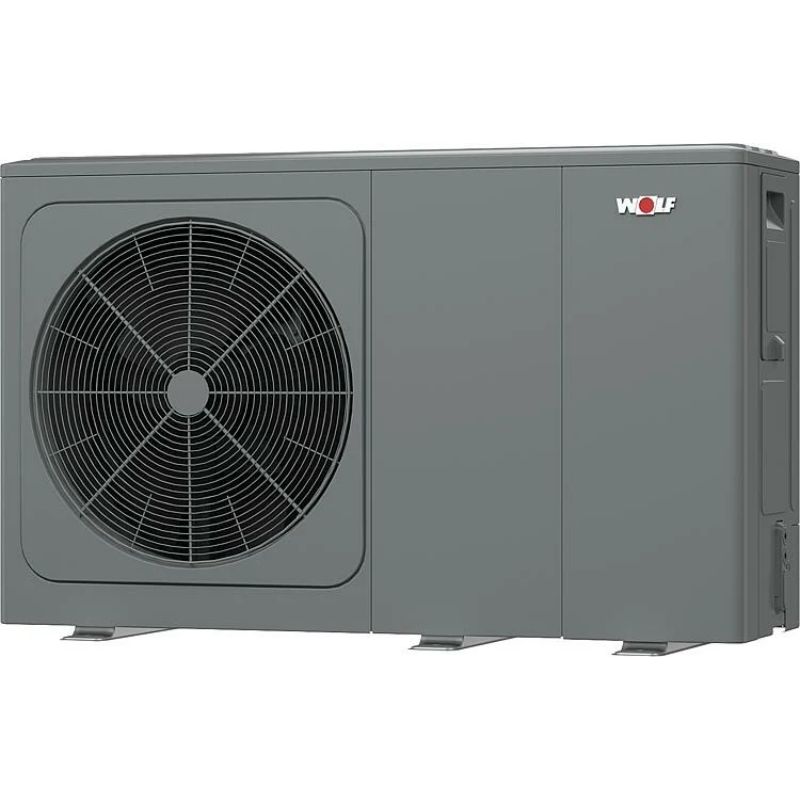

Monobloc air-to-water heat pump, outdoor and indoor unit. Available in various versions with a power range from 5 to 17 kW. Twin Rotary with DC inverter for all sizes to ensure optimal dynamic balancing and reduce vibrations, continuous modulation from 40% to 120%, R32 refrigerant gas, thanks to its wide operating range, it is ideal for any type of installation, whether hybrid or monovalent.

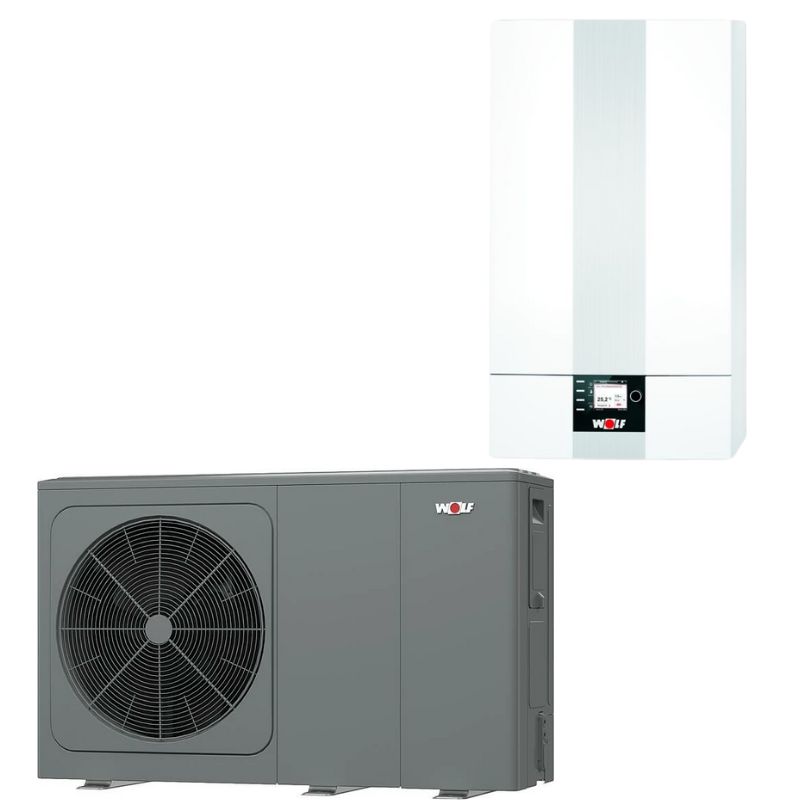

The indoor unit includes the control electronics with the heating circuit controller, circulation pump, electric heater, 3-way switching valve, flow sensor, pressure sensor, and safety valve (3 bar). The 3-way switching valve switches between heating and cooling mode and hot water mode. All components of the cooling circuit are located in the outdoor unit, including the refrigeration circuit controller and fan.
Air/water heat pump, monobloc version
Heating capacity at 7/35°C according to EN 14511: 8.4kW
COP at 7/35°C according to EN 14511 5.1
Suitable for heating (CV): Yes
Room temperature control: Yes
Control type: Weather-dependent control
External control required: No
Optimization type: Room thermostat
Integrated domestic hot water control: Yes
Suitable for active cooling: Yes
Cooling capacity at 35/18°C according to EN14511: 3.2kW, 10.2kW
Suitable for swimming pool water heating: No
Control for storage tank control: Yes
Control for heating boiler control: Yes
Modulating compressor: Yes
Refrigerant charge: 1.75kg
Refrigerant type: R32
Operating noise: 60.8dB(A)
Max. flow temperature: Heating temperature: 65°C
Protection class (IP): IP24
Cascading capability: Yes
Remote control: Yes
Data transfer via USB: No
Data transfer via Internet: Yes
Data transmission via bus connection: Yes
Pump power supply (system pump): AC
Pump type (system pump): Energy-saving
System pump speed control: Automatically controlled by dT
System pump speed control: Integrated
Connection and control of multiple transmitter systems possible: Yes
Integrated soft start: Yes
Width: 1385 mm
Depth: 526 mm
Height: 865 mm
Monobloc air-to-water heat pump, outdoor and indoor unit. Available in various versions with a power range from 5 to 17 kW. Twin Rotary with DC inverter for all sizes to ensure optimal dynamic balancing and reduce vibrations, continuous modulation from 40% to 120%, R32 refrigerant gas, thanks to its wide operating range, it is ideal for any type of installation, whether hybrid or monovalent.
The indoor unit includes the control electronics with the heating circuit controller, circulation pump, electric heater, 3-way switching valve, flow sensor, pressure sensor, and safety valve (3 bar). The 3-way switching valve switches between heating and cooling mode and hot water mode. All components of the cooling circuit are located in the outdoor unit, including the refrigeration circuit controller and fan.
Air/water heat pump, monobloc version
Heating capacity at 7/35°C according to EN 14511: 8.4kW
COP at 7/35°C according to EN 14511 5.1
Suitable for heating (CV): Yes
Room temperature control: Yes
Control type: Weather-dependent control
External control required: No
Optimization type: Room thermostat
Integrated domestic hot water control: Yes
Suitable for active cooling: Yes
Cooling capacity at 35/18°C according to EN14511: 3.2kW, 10.2kW
Suitable for swimming pool water heating: No
Control for storage tank control: Yes
Control for heating boiler control: Yes
Modulating compressor: Yes
Refrigerant charge: 1.75kg
Refrigerant type: R32
Operating noise: 60.8dB(A)
Max. flow temperature: Heating temperature: 65°C
Protection class (IP): IP24
Cascading capability: Yes
Remote control: Yes
Data transfer via USB: No
Data transfer via Internet: Yes
Data transmission via bus connection: Yes
Pump power supply (system pump): AC
Pump type (system pump): Energy-saving
System pump speed control: Automatically controlled by dT
System pump speed control: Integrated
Connection and control of multiple transmitter systems possible: Yes
Integrated soft start: Yes
Width: 1385 mm
Depth: 526 mm
Height: 865 mm
