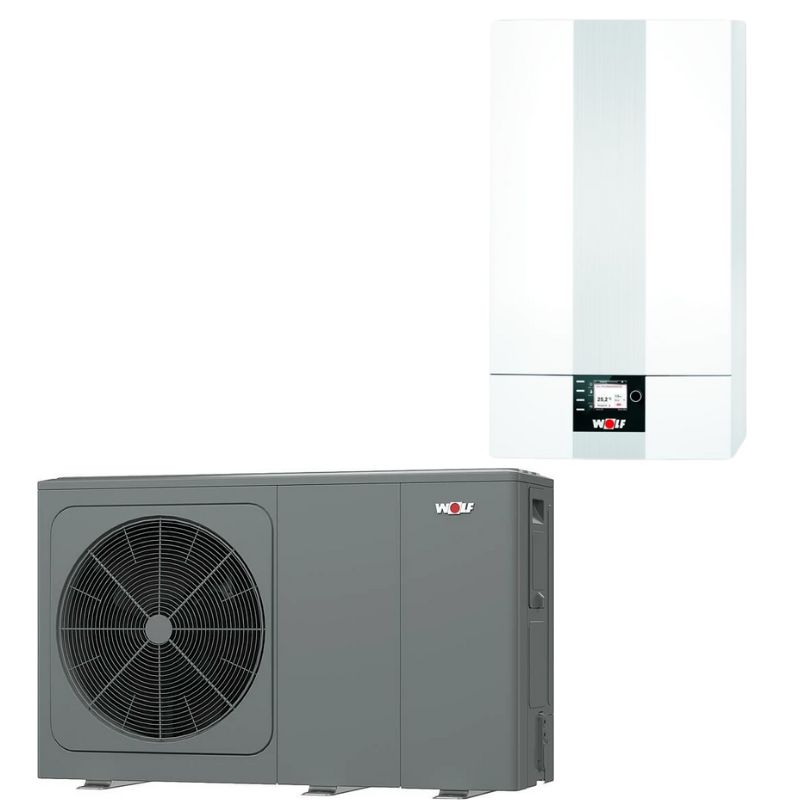

WOLF FHA-08/10-230V 10.0 kW Air-to-Air Heat Pump. Monobloc (230 V) R32
The Wolf FHA 08/10-230V model stands out for its excellent energy efficiency, rated A+++. Its heating capacity ranges from 3.5 to 10.6 kW, with a COP of 4.9. For air conditioning, it covers a power range from 3.9 to 9.7 kW, with an EER of 4.4. Its ability to reach temperatures of up to 65°C ensures efficient and quiet operation, with low noise levels. It uses R32/675 refrigerant, recognized for its low environmental impact, and offers the option of choosing between models with or without electric heaters, thus adapting to the specific needs of each project.
Seasonal Energy Efficiency (ηs), average climate, W35%: 196
Seasonal Energy Efficiency (ηs), average climate, W55%: 133
Heating mode, power range, A7/W35, kW: 3.5-10.6
COP A7/W35: 4.9
Cooling mode, power range, A35/W18, kW: 3.9-9.7
EER A35/W18: 4.4
Max. Without resistance (°C): 65
Sound pressure (reduced mode at 3 m), dB(A): 38
Refrigerant: R32/675
Flow/return/DHW connections: 28 mm
Control power supply: 1fi (3-wire) / 230 V / 50 Hz
Required IDU protection: 16 A (Type B)
Protection rating: IP20
Minimum primary flow rate: 13 l/min
Nominal water flow rate (5 K): 28 l/min
Available pressure at nominal flow rate: 515 mbar
Maximum permissible operating pressure: 3 bar
Flow/return connections: R 1 1/4"
Compressor type: Twin rotary compressor
Compressor speed range: 30-96 rpm
Nominal fan flow rate: 4030 m3/h
Maximum sound power ErP: 59 dB(A)
Power Maximum acoustic noise in Night Mode: 55 dB(A)
Power supply: 1fi (3 wires) / 230 V / 50 Hz
ODU protection required: 25 A (Type B)
Standby consumption: 10 W
Protection rating: IP24
Indoor unit
Dimensions (W x H x D): 440 x 790 x 340 mm
Weight (empty): 27 kg

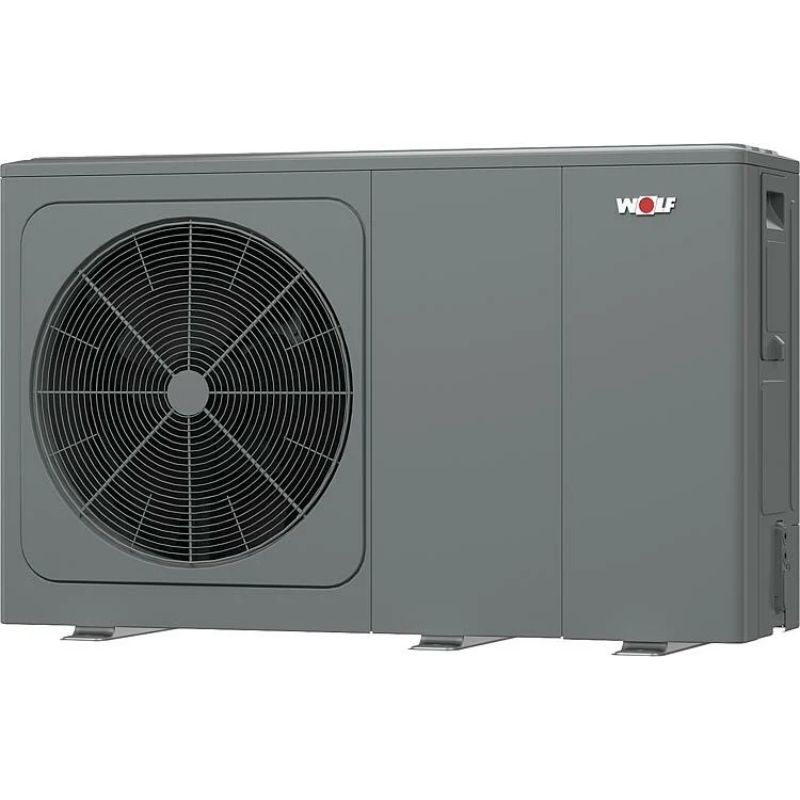

Outdoor unit
Dimensions (W x H x D): 1385 x 865 x 526 mm
Weight: 98 kg
The Wolf FHA 08/10-230V model stands out for its excellent energy efficiency, rated A+++. Its heating capacity ranges from 3.5 to 10.6 kW, with a COP of 4.9. For air conditioning, it covers a power range from 3.9 to 9.7 kW, with an EER of 4.4. Its ability to reach temperatures of up to 65°C ensures efficient and quiet operation, with low noise levels. It uses R32/675 refrigerant, recognized for its low environmental impact, and offers the option of choosing between models with or without electric heaters, thus adapting to the specific needs of each project.
Seasonal Energy Efficiency (ηs), average climate, W35%: 196
Seasonal Energy Efficiency (ηs), average climate, W55%: 133
Heating mode, power range, A7/W35, kW: 3.5-10.6
COP A7/W35: 4.9
Cooling mode, power range, A35/W18, kW: 3.9-9.7
EER A35/W18: 4.4
Max. Without resistance (°C): 65
Sound pressure (reduced mode at 3 m), dB(A): 38
Refrigerant: R32/675
Flow/return/DHW connections: 28 mm
Control power supply: 1fi (3-wire) / 230 V / 50 Hz
Required IDU protection: 16 A (Type B)
Protection rating: IP20
Minimum primary flow rate: 13 l/min
Nominal water flow rate (5 K): 28 l/min
Available pressure at nominal flow rate: 515 mbar
Maximum permissible operating pressure: 3 bar
Flow/return connections: R 1 1/4"
Compressor type: Twin rotary compressor
Compressor speed range: 30-96 rpm
Nominal fan flow rate: 4030 m3/h
Maximum sound power ErP: 59 dB(A)
Power Maximum acoustic noise in Night Mode: 55 dB(A)
Power supply: 1fi (3 wires) / 230 V / 50 Hz
ODU protection required: 25 A (Type B)
Standby consumption: 10 W
Protection rating: IP24
Indoor unit
Dimensions (W x H x D): 440 x 790 x 340 mm
Weight (empty): 27 kg
Outdoor unit
Dimensions (W x H x D): 1385 x 865 x 526 mm
Weight: 98 kg
