Ferroli 30.0 kW Aerothermal Heat Pump. R32. Monobloc (380 V) R32
This highly versatile product offers a wide range of power outputs, efficiently replacing heating, cooling, and domestic hot water systems, all in a single unit.
The new Ferroli Omnia air-to-water heat pumps are the ideal solution for replacing traditional systems such as condensing boilers, air conditioners, or solar thermal panels for domestic hot water production, as they combine these two needs. They allow you to keep your existing radiator or underfloor heating systems operational and run them at low temperatures in both heating and cooling modes.
DC Inverter Compressor. Module capacity from 30% to 120% of the unit's nominal capacity. In addition to the DC Inverter compressor, it includes an electronic expansion valve and axial brushless DC fans. Corrosion-resistant outdoor coil. The fins are made of hydrophilic aluminum.
Hydraulic kit with all necessary components for installation.
Electronic modulating pump (DC brushless motor), flow switch, expansion vessel, etc. Inertia tank not included.
Y-type water filter (installation to be completed by the installer).
Outdoor temperature sensor. Provides climate control to adjust the water pulse temperature according to the outdoor temperature.
Temperature sensor for installation in the domestic hot water tank (this tank is not included; it is available as an option).
Technical Specifications
Power Supply: 380/415 V - Three-phase - 50 Hz
Compressor Type: Twin DC Rotary
Number of Compressors/Circuits: 1 / 1
Heat Exchanger Type (Installation Side): Stainless Steel Plate Heat Exchanger
Heat Exchanger Type (Source Side): Hydrophilic Aluminum Fin Coil
Fan Type: Axial DC
Number of Fans: 2
Expansion Tank Volume: 8 L
Safety Valve Weight: 3 bar
Hydraulic Connections: 1 1/4" M
Minimum System Water Capacity: 40 L
Minimum Domestic Hot Water Tank Heat Exchange Surface Area: Stainless Steel 3.5 m², Enamelled Steel 5 m²
Refrigerant Type (GWP): R32 (675)
Refrigerant Charge Factory refrigerant (kg refrigerant / kg CO₂ equivalent): 5 kg / 3,375 kg CO₂ equivalent

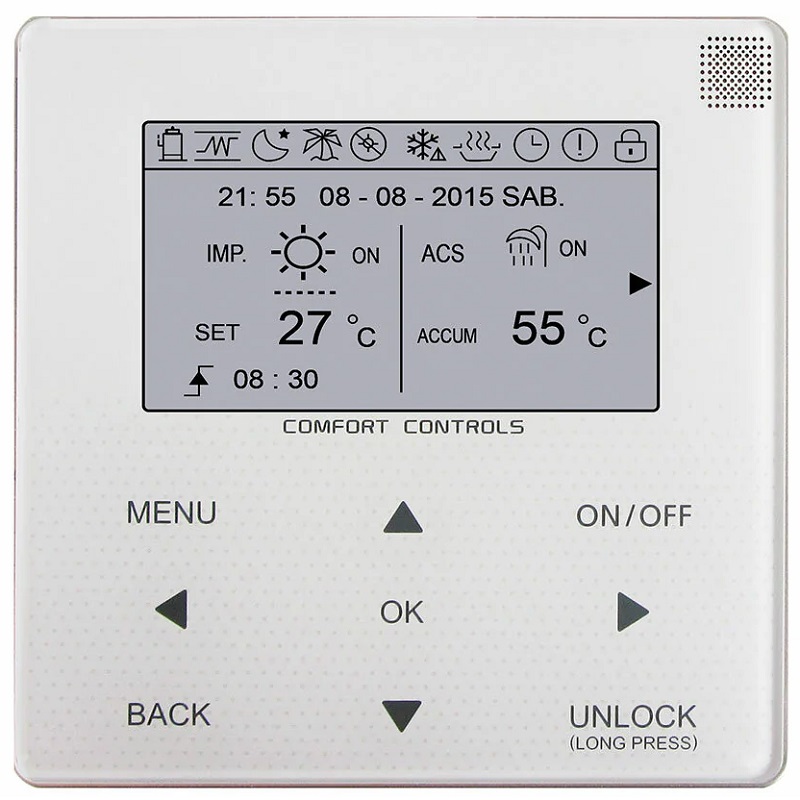

Control type: Wired remote control
Sound power level (heating): A7W35 77 dB(A), SIL 2 69 dB(A)
Sound power level (cooling): A35W18 75 dB(A), SIL 2 69 dB(A)
Maximum input current: 29 A
Dimensions
Length: 1,385 mm
Height: 843 mm
Depth: 523 mm
Weight: 177 kg
This highly versatile product offers a wide range of power outputs, efficiently replacing heating, cooling, and domestic hot water systems, all in a single unit.
The new Ferroli Omnia air-to-water heat pumps are the ideal solution for replacing traditional systems such as condensing boilers, air conditioners, or solar thermal panels for domestic hot water production, as they combine these two needs. They allow you to keep your existing radiator or underfloor heating systems operational and run them at low temperatures in both heating and cooling modes.
DC Inverter Compressor. Module capacity from 30% to 120% of the unit's nominal capacity. In addition to the DC Inverter compressor, it includes an electronic expansion valve and axial brushless DC fans. Corrosion-resistant outdoor coil. The fins are made of hydrophilic aluminum.
Hydraulic kit with all necessary components for installation.
Electronic modulating pump (DC brushless motor), flow switch, expansion vessel, etc. Inertia tank not included.
Y-type water filter (installation to be completed by the installer).
Outdoor temperature sensor. Provides climate control to adjust the water pulse temperature according to the outdoor temperature.
Temperature sensor for installation in the domestic hot water tank (this tank is not included; it is available as an option).
Technical Specifications
Power Supply: 380/415 V - Three-phase - 50 Hz
Compressor Type: Twin DC Rotary
Number of Compressors/Circuits: 1 / 1
Heat Exchanger Type (Installation Side): Stainless Steel Plate Heat Exchanger
Heat Exchanger Type (Source Side): Hydrophilic Aluminum Fin Coil
Fan Type: Axial DC
Number of Fans: 2
Expansion Tank Volume: 8 L
Safety Valve Weight: 3 bar
Hydraulic Connections: 1 1/4" M
Minimum System Water Capacity: 40 L
Minimum Domestic Hot Water Tank Heat Exchange Surface Area: Stainless Steel 3.5 m², Enamelled Steel 5 m²
Refrigerant Type (GWP): R32 (675)
Refrigerant Charge Factory refrigerant (kg refrigerant / kg CO₂ equivalent): 5 kg / 3,375 kg CO₂ equivalent
Control type: Wired remote control
Sound power level (heating): A7W35 77 dB(A), SIL 2 69 dB(A)
Sound power level (cooling): A35W18 75 dB(A), SIL 2 69 dB(A)
Maximum input current: 29 A
Dimensions
Length: 1,385 mm
Height: 843 mm
Depth: 523 mm
Weight: 177 kg
