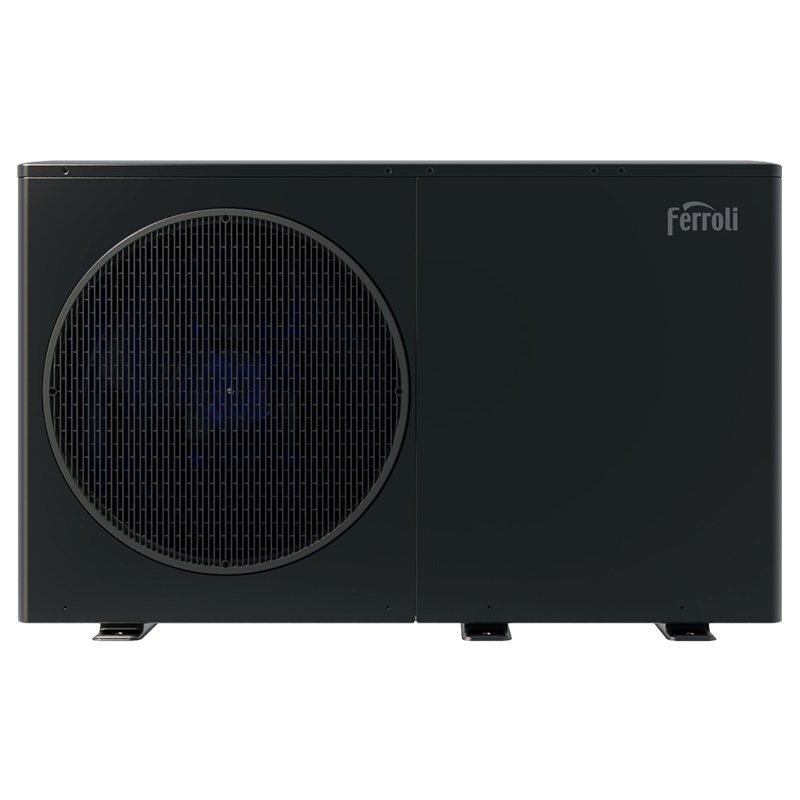

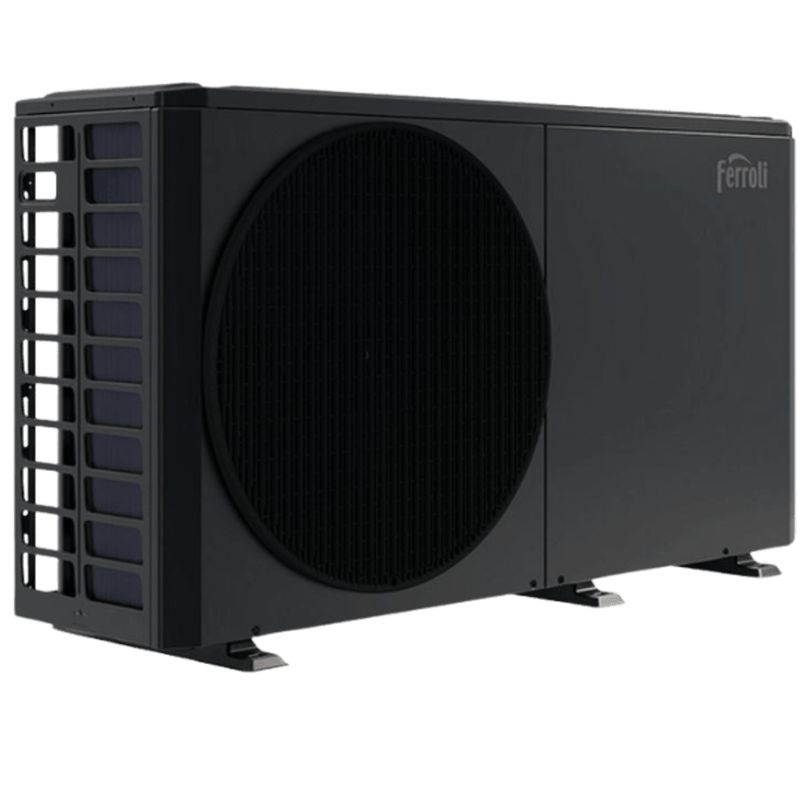

Ferroli OMNIA LIFE M 16 Air Source Heat Pump, 16.0 kW. Monobloc (230 V) R290
Heating and cooling system where the heat pump is the sole energy source. The unit, whether activated in heating or cooling mode, operates by modulating the compressor frequency to maintain the produced water temperature at the setpoint set by the controller. This setting allows you to use the remote control (e.g., for single-zone systems) as a room thermostat.
Domestic hot water (DHW) production: the unit is activated in heating mode to maintain the temperature of a DHW tank (not supplied) at the setpoint. It requires a 3-way diverter valve (not supplied) and a temperature sensor (T5 sensor, L = 10 m, supplied) to be inserted into a well in the DHW tank. This function can be activated manually and prioritizes DHW production by activating all energy sources (heat pumps, electric heaters, boiler) available for DHW production in order to bring the DHW tank to the required setpoint as quickly as possible.
Disinfection function: you can set weekly disinfection cycles for the water in the DHW tank from the controller. To complete these cycles, the heat pump must be integrated with an electric water heater or boiler.
On/Off: Using an external contact, the unit can be turned on and off (e.g., thermostat/remote switch). In this case, the unit will operate in the mode defined by the controller keypad.
Heating and Cooling: Using External Contacts: The unit can be activated in heating or cooling mode via two external contacts (e.g., a thermostat that manages the heating and cooling demand/remote switch).
For heating mode, it is possible to define a daily time range and the corresponding setpoint for ECO mode.
Photovoltaic input and smart grid input: The device has two digital inputs to control the injection of electricity from the photovoltaic systems and the electrical grid. Operating logic:
If the photovoltaic input is closed, the device switches to hot water mode with a hot water setpoint of 70°C and (if available) to the hot water tank. The device operates in cooling/heating mode according to normal logic.
Specifications
Heating power: 15 kW (heating mode, at 35°C)
COP (A7W35): 4.4
Water flow rate: 2,580 l/h
Refrigerant: R290 (low GWP)
Power supply: 380/415 V - 3-phase - 50 Hz
Operating pressure: 1.5-5.0 bar
Operating temperature: -25°C to 46°C (heating and cooling mode)
Wi-Fi connectivity: Yes, remote control via app (Android and iOS).
Compressor: Dual DC rotary compressor, single circuit
Heat exchanger: Stainless steel plate heat exchanger
Hydraulic connections: 1 1/4"
Expansion tank volume: 8 liters
Sound level
Heating sound level (A7W35): 65 dB(A) max., 58 dB(A) in SIL 2 mode
Cooling sound level (A35W18): 65 dB(A) max., 58 dB(A) in SIL 2 mode
Dimensions
Dimensions: (H) 865 x (W) 385 x (D) 523 mm
Net weight: 135 kg
Gross weight: 157 kg
Heating and cooling system where the heat pump is the sole energy source. The unit, whether activated in heating or cooling mode, operates by modulating the compressor frequency to maintain the produced water temperature at the setpoint set by the controller. This setting allows you to use the remote control (e.g., for single-zone systems) as a room thermostat.
Domestic hot water (DHW) production: the unit is activated in heating mode to maintain the temperature of a DHW tank (not supplied) at the setpoint. It requires a 3-way diverter valve (not supplied) and a temperature sensor (T5 sensor, L = 10 m, supplied) to be inserted into a well in the DHW tank. This function can be activated manually and prioritizes DHW production by activating all energy sources (heat pumps, electric heaters, boiler) available for DHW production in order to bring the DHW tank to the required setpoint as quickly as possible.
Disinfection function: you can set weekly disinfection cycles for the water in the DHW tank from the controller. To complete these cycles, the heat pump must be integrated with an electric water heater or boiler.
On/Off: Using an external contact, the unit can be turned on and off (e.g., thermostat/remote switch). In this case, the unit will operate in the mode defined by the controller keypad.
Heating and Cooling: Using External Contacts: The unit can be activated in heating or cooling mode via two external contacts (e.g., a thermostat that manages the heating and cooling demand/remote switch).
For heating mode, it is possible to define a daily time range and the corresponding setpoint for ECO mode.
Photovoltaic input and smart grid input: The device has two digital inputs to control the injection of electricity from the photovoltaic systems and the electrical grid. Operating logic:
If the photovoltaic input is closed, the device switches to hot water mode with a hot water setpoint of 70°C and (if available) to the hot water tank. The device operates in cooling/heating mode according to normal logic.
Specifications
Heating power: 15 kW (heating mode, at 35°C)
COP (A7W35): 4.4
Water flow rate: 2,580 l/h
Refrigerant: R290 (low GWP)
Power supply: 380/415 V - 3-phase - 50 Hz
Operating pressure: 1.5-5.0 bar
Operating temperature: -25°C to 46°C (heating and cooling mode)
Wi-Fi connectivity: Yes, remote control via app (Android and iOS).
Compressor: Dual DC rotary compressor, single circuit
Heat exchanger: Stainless steel plate heat exchanger
Hydraulic connections: 1 1/4"
Expansion tank volume: 8 liters
Sound level
Heating sound level (A7W35): 65 dB(A) max., 58 dB(A) in SIL 2 mode
Cooling sound level (A35W18): 65 dB(A) max., 58 dB(A) in SIL 2 mode
Dimensions
Dimensions: (H) 865 x (W) 385 x (D) 523 mm
Net weight: 135 kg
Gross weight: 157 kg
