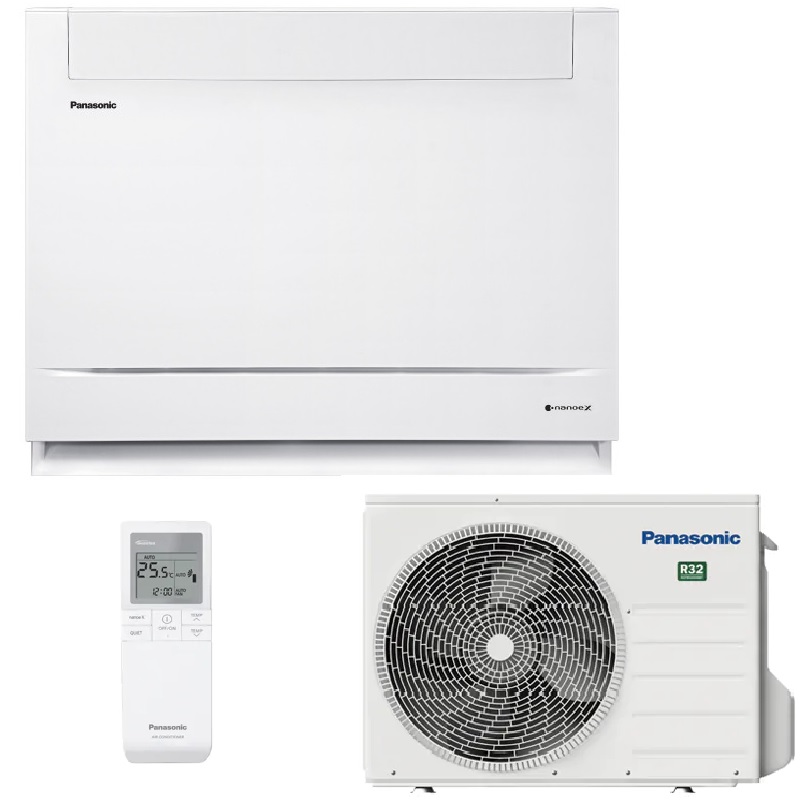

Panasonic KIT-Z25-UFE Floor-Standing Air Conditioner, 2.5 kW (230V) R32, Wi-Fi Included
This floor-standing unit features the new nanoe™ X technology: exceptional A++ efficiency, optimal comfort (ultra-quiet operation at only 20 dB at low speed), and healthy air, all in a cutting-edge design. nanoe™ X technology, which harnesses the benefits of hydroxyl radicals, improves air quality 24/7.
High-end infrared control. An innovative design that blends seamlessly into modern interiors. We have selected the best materials and processes for a refined and elegant design. The ideal solution for replacing older boiler heating systems. Dual airflow for optimal comfort and temperature distribution: top airflow for efficient operation.
Key Benefits
nanoe™ X technology for continuous protection (nanoe™ X Generator Mark 1).

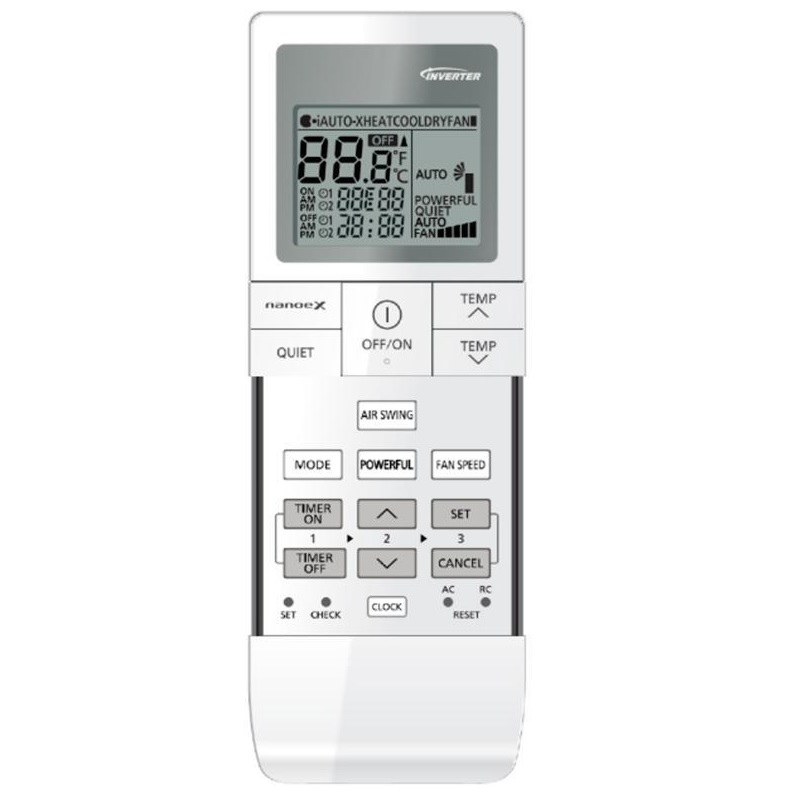

Premium wireless remote control.
An innovative design that blends seamlessly into modern interiors.
Specifications

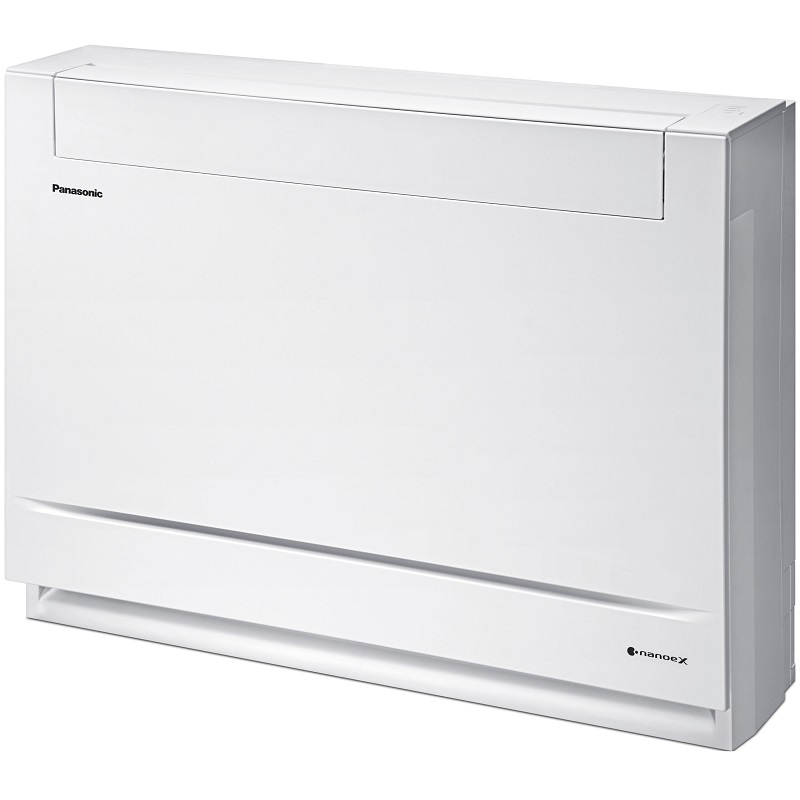

Indoor Unit: CS-Z25UFEAW
nanoe X Mark 1 Generator
Power Supply: 230 V
Indoor Airflow (Cooling): 9.6 m³/h
Indoor Airflow (Heating): 9.9 m³/h
Dehumidification Rate: 1.5 L/min
Indoor Sound Pressure Level (Cooling - Al): 38 dB
Indoor Sound Pressure Level (Cooling - Ba): 25 dB
Indoor Sound Pressure Level (Cooling - Ba - Silen): 20 dB
Indoor Sound Pressure Level (Heating - Al): 38 dB
Indoor Sound Pressure Level (Heating - Ba): 25 dB
Indoor Sound Pressure Level (Heating - Ba - Silen): 19 dB
Indoor Unit Dimensions (Height): 600 mm
Indoor unit dimensions (width): 750 mm
Indoor unit dimensions (depth): 207 mm
Indoor unit net weight: 13 kg

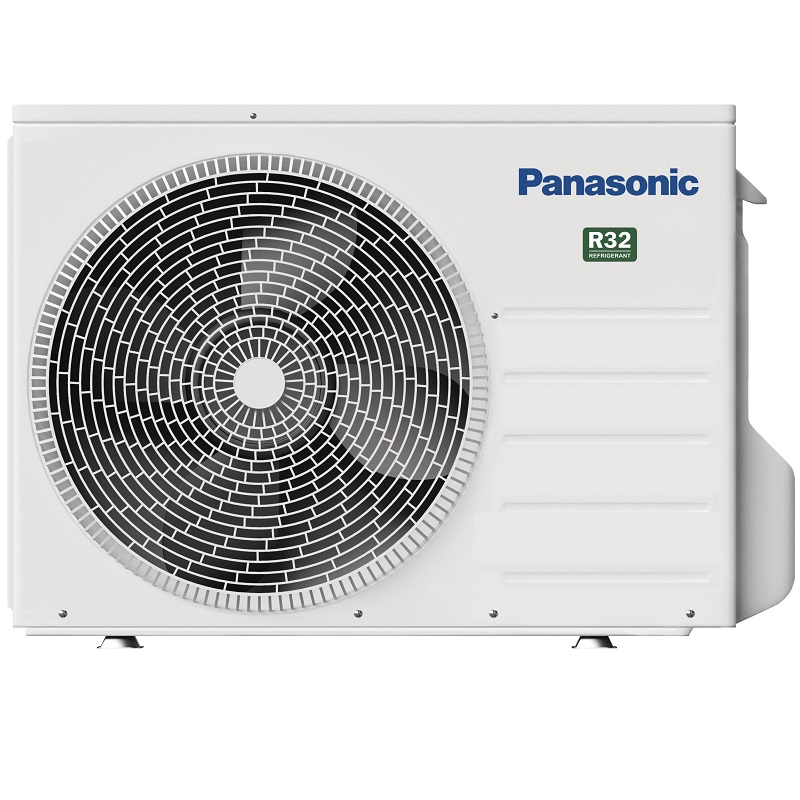

Outdoor unit: CU-Z25UBEA
Outdoor power supply: 230 V
Recommended outdoor fuse: 16 A
Indoor/outdoor connection
Outdoor airflow (cooling): 28.7 m³/h
Outdoor airflow (heating): 27.2 m³/h
Outdoor sound pressure level (cooling): 46 dB
Outdoor sound pressure level (heating): 47 dB
Pipe diameter (liquid): 1/4" (6.35 in)
Pipe diameter (gas): 3/8" (9.52 in)
Pipe length: 3 to 20 meters
Height difference (indoor/outdoor): 15 meters
Additional gas hose length: 7.5 g Gas quantity: 10 g
Refrigerant (R32) / CO₂ equivalent: 0.88 / 0.594
Operating range (minimum cooling): -10 °C
Operating range (maximum cooling): +43 °C
Operating range (minimum heating): -15 °C
Operating range (maximum heating): +24 °C
Outdoor unit dimensions (height): 542 mm
Outdoor unit dimensions (width): 780 mm
Outdoor unit dimensions (depth): 289 mm
Outdoor unit net weight: 33 kg
