Mitsubishi PEAD-M35JA / PEAD-M50JA Supply Plenum

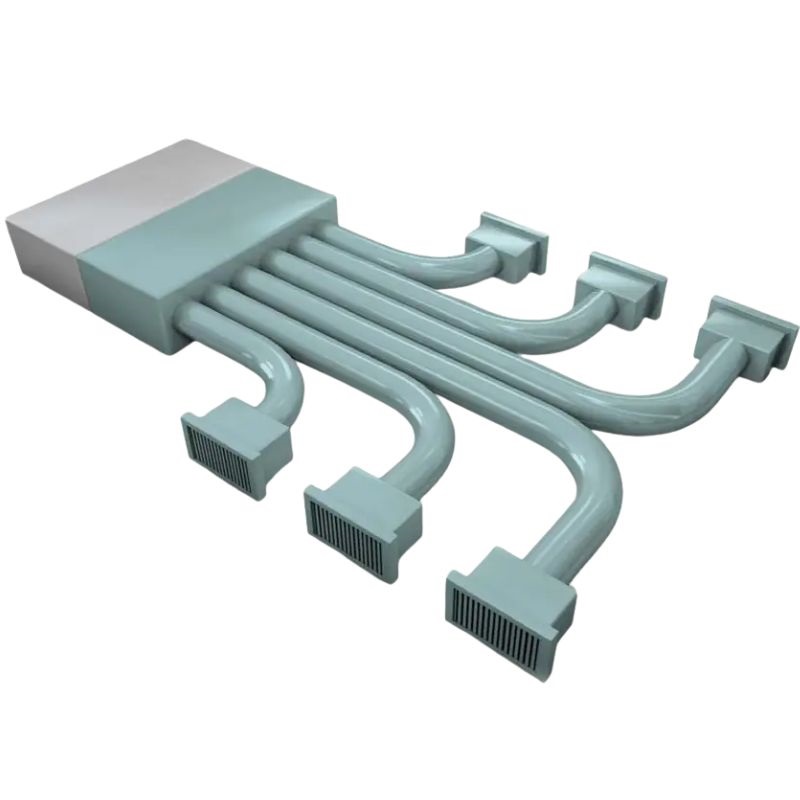

This plenum connects the indoor unit of the ducted air conditioning system to the ductwork, which leads to the supply grilles. This plenum delivers hot or cool air to the desired rooms and also draws air back from the home via the return grilles.
We recommend using 160mm supply ducts and grilles for smaller rooms (bedrooms) and 200mm or 250mm supply ducts and grilles for larger rooms (living rooms).
Technical Specifications
Supply Plenum
Compatibility with Ducted Indoor Unit: PEAD-M35JA / PEAD-M50JA
Plenum Type: Standard Supply and Return
For Brand: Mitsubishi
Galvanized Plenums
Front Outlet Diameter 160 mm: 3
Front Outlet Diameter 200 mm: 2
Front Outlet Diameter 250 mm: 0
Side Outlet Diameter 200 mm: 1
Side Outlet Diameter 250 mm: 0
Return Plenum
Inlet Diameter 200 mm: 2
Inlet Diameter 250 mm: 0
Dimensions (H x W x D): 250 x 894 x 80 mm
