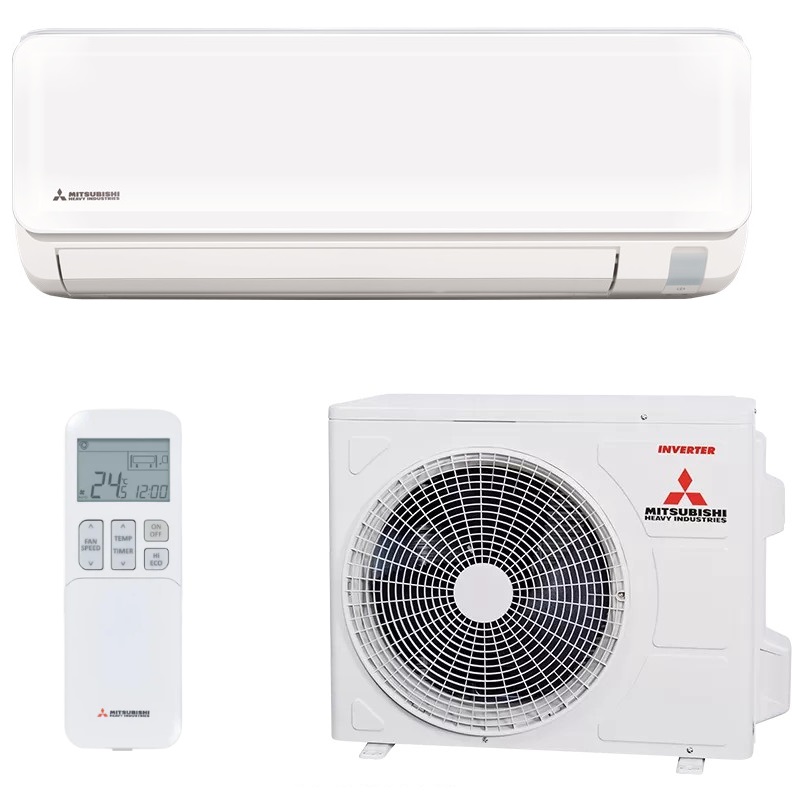

Mitsubishi Heavy Industries SRK20ZTL-W + SRC20ZTL-W Global Series Air Conditioner

Mitsubishi Heavy Industries SRK20ZTL-W + SRC20ZTL-W Global Series Air Conditioner

MHI's SRK range of wall-mounted systems is highly regarded for residential, office, and commercial applications. The new, sleekly designed indoor wall units feature a slimmer, smoother profile and are significantly easier to clean. This model is available in pure white, titanium, or contrasting black and white.

Thanks to innovative Jet technology, the Mitsubishi Heavy Industries Smart Plus air conditioner generates a high airflow while minimizing energy consumption. The powerful and uniform airflow reaches the entire room. For even more optimal temperature and air distribution, the 3D Auto function can be activated. Three independent motors control the airflow, ensuring optimal thermal comfort, reduced energy consumption, and minimal losses. By activating High Power mode, the set temperature is reached in just 15 minutes, in either cooling or fan mode.

The unit then automatically returns to standard operating mode. The Smart Plus maintains air quality thanks to a three-stage filtration system: an allergen-neutralizing filter, a self-cleaning function that prevents moisture buildup in the indoor unit, and an increased surface area dust filter. This air conditioner is designed to provide efficient heating even in low outdoor temperatures, down to -15°C, thanks to a precisely controlled compressor with Mitsubishi Heavy Industries' Inverter technology.

This system delivers high performance with minimal energy consumption. This range of air conditioners also operates in cooling mode down to -15°C, making it ideal for rooms where work equipment needs to be kept cool, even in sub-zero outdoor temperatures. The Smart Plus's outdoor unit is equipped with an intelligent defrosting system that quickly removes frost buildup on the heat exchanger in heating mode, ensuring optimal performance. Thanks to its integrated Wi-Fi remote control, the Smart Plus is easy to control anytime, anywhere.

Wi-Fi compatible
An elegant and timeless design for optimal efficiency in all seasons, maximum thermal comfort, and seamless integration into any environment.
Low power output up to 2.0 kW, ideal for small or well-insulated rooms.
Wireless control system included.

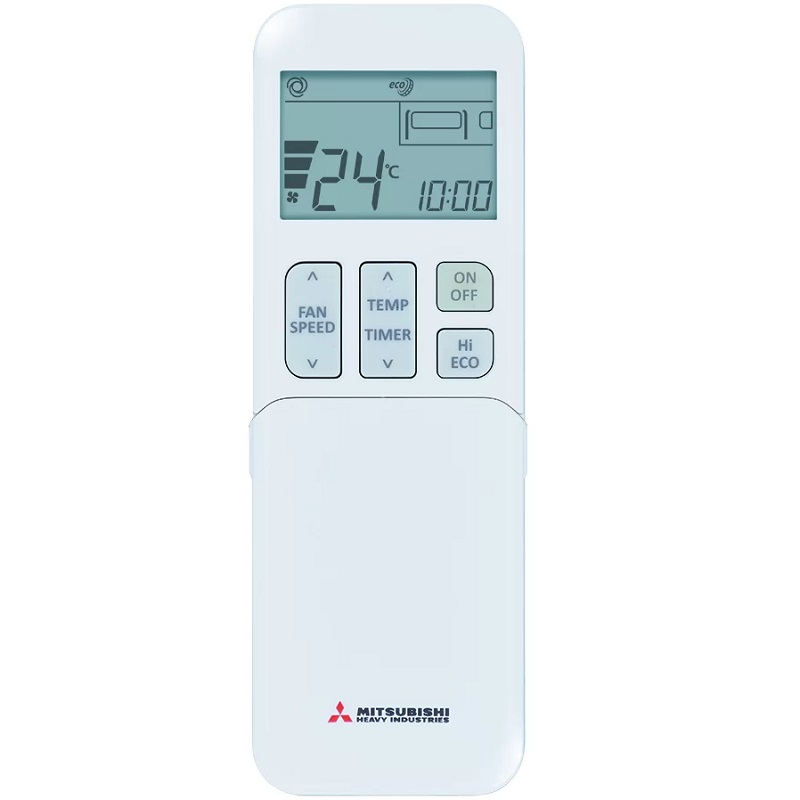

New remote control with a sleek design.
Two silent modes for reduced noise levels.
Long piping and maximum height difference.
Lightweight outdoor unit for flexible installation.
Automatic louver mode.
Anti-allergen filter and washable photocatalytic filter.
Shape-memory louver.
Automatic vertical and horizontal oscillation.
R32 Refrigerant

Technical Information
Suitable for rooms up to: 20 m²
Wi-Fi: Built-in
Cooling Capacity (Min./Nom./Max.): 0.7 / 2.0 / 2.8 kW
Heating Capacity (Min./Nom./Max.): 0.9 / 2.7 / 4.2 kW
Power Consumption - Cooling (Min./Nom./Max.): - / 0.51 / - kW
Power Consumption - Heating (Min./Nom./Max.): - / 0.64 / - kW
Capacity: 7000 BTU
Nominal EER Cooling: 3.92
Seasonal Efficiency Ratio (SEER) Cooling: 6.7
SCOP: 4.4
Energy Label (Cooling/Heating) - Average Climate: A++ / A+
Operating Range (Cooling): -15 ~ 46 °C
Operating Range (Heating): -15 ~ 24 °C
Refrigerant: R-32
Power Supply (Phase/Frequency/Voltage): 1~/50/220-240
Indoor Unit
Sound Pressure Level - Cooling (High/Nominal/Low/Silent): 37 / 31 / 23 / 19 dB
Sound Pressure Level - Heating (High/Nominal/Low/Silent): 39 / 34 / 25 / 19 dB
Dimensions (H x W x D): 294 x 798 x 210 mm
Weight: 8.5 kg

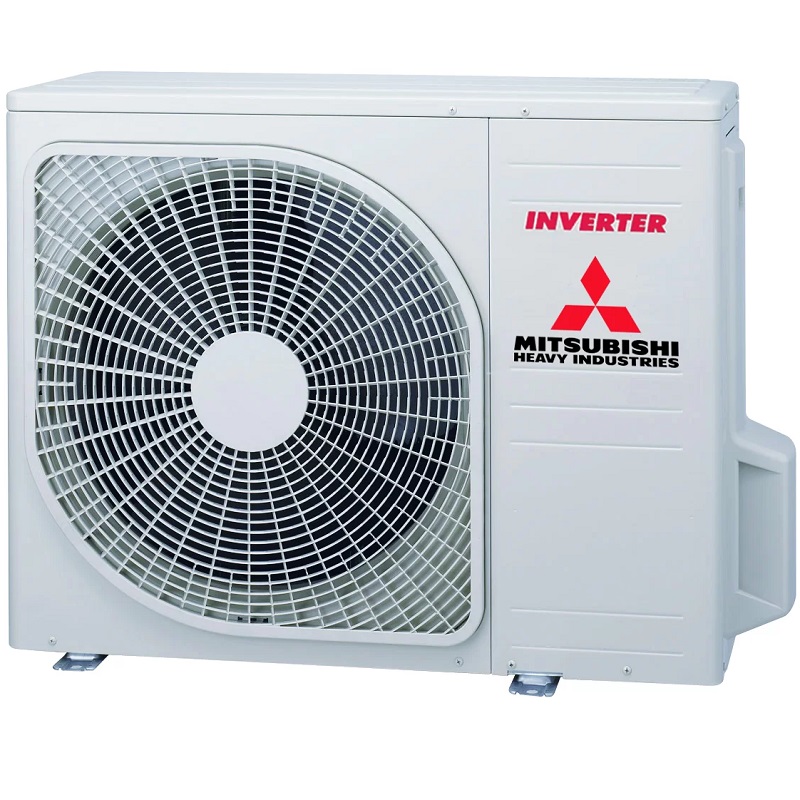

Outdoor Unit
Refrigerant Piping - Liquid / Gas: 6.35 / 9.52 mm (1/4" / 3/8") mm
Sound Pressure Level - Cooling (High/Nominal/Low/Silent): - / 45 / 31 / 29 dB
Sound pressure - heating (high/nominal/low/silent): - / 46 / 29 / 27 dB
Dimensions (H x W x D): 540 x 645 x 275 mm
Weight: 22 kg
