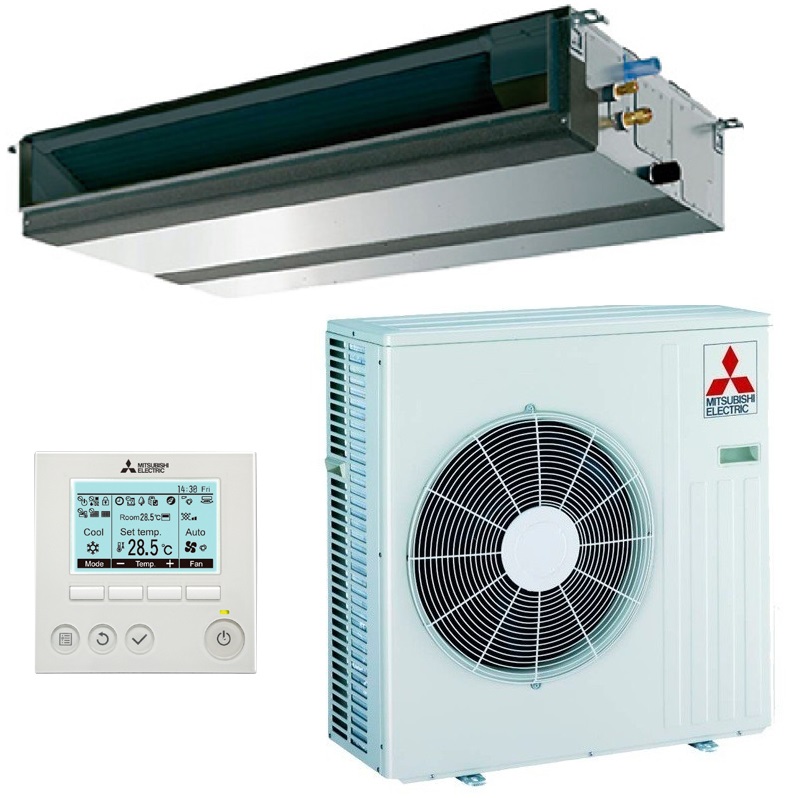

Mitsubishi gainable air conditioner MGPEZ-125VJA2, 12.5 kw Monophasé 230V

Mitsubishi gainable air conditioner MGPEZ-125VJA2, 12.5 kw Monophasé 230V

The new range of Mitsubishi air conditioners offers an extra-platform model with a height of 250 mm, with a static pressure all the way up to 150 Pa, an integrated life pump and a replacement technology. Ceci simplifie l'installation and offers a maximal adaptability to all the pieces, même cells avec des plafonds bas et un espace réduit.

The Standard Inverter range from Mitsubishi Electric is superior to the Pro range, offering accrue energy efficiency and donc a réduite consumption. De nouvelles rainures dans l'échangeur de chaleur augmentent la surface d'échange, optimisant ainsi son efficacité.
A high performance CC engine entails the ventilation of the outdoor unit, the most performant vehicle with a modèle equivalent to alternating current. A special process improves the effectiveness of the filter, prolonging it even during the last day of life.

The ventilator speed is adjusted automatically based on noise.
Automatic tilting between cooling and heating modes according to the ambient temperature.
After a coupure de courant, the air conditioning system redémarre automatiquement des le rétablissement du courant.
Allow the programmer to operate the operating rules for different plages during the last week.
The intelligent ventilation of the outdoor unit guarantees optimal performances at low outdoor temperatures.

The hot release system guarantees a pleasant temperature during operation. Function of autodiagnosis
La function d'autodiagnostic vérifie l'état de fonctionnement de l'appareil.
La pompe de vidange facilitate l'evacuation des eaux de l'unité intérieure. It is proposed as an option or even depending on the models.

Technical specifications

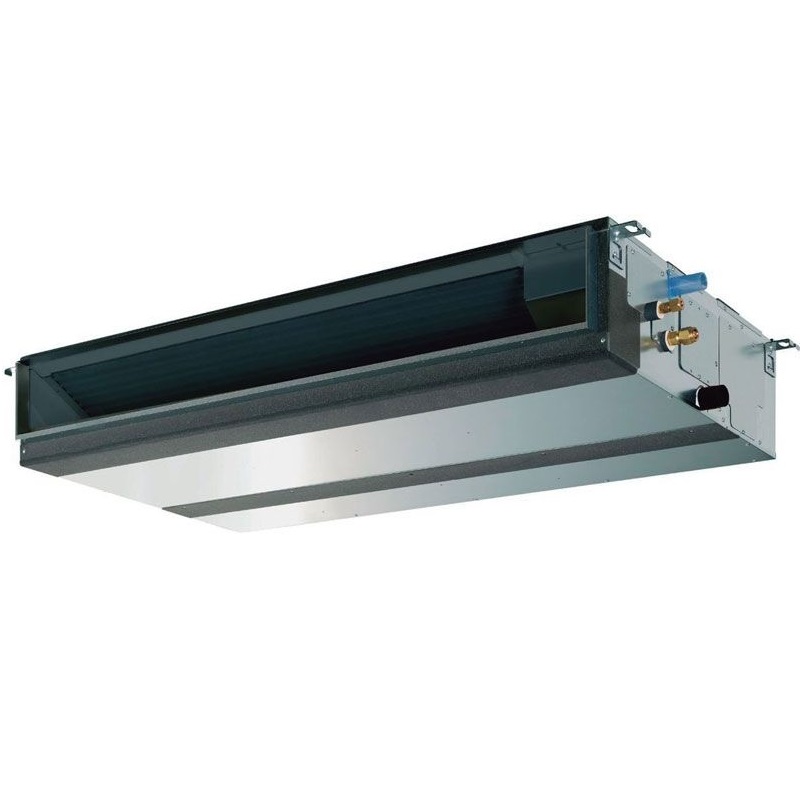

Internal unit: PEAD-M125JA2

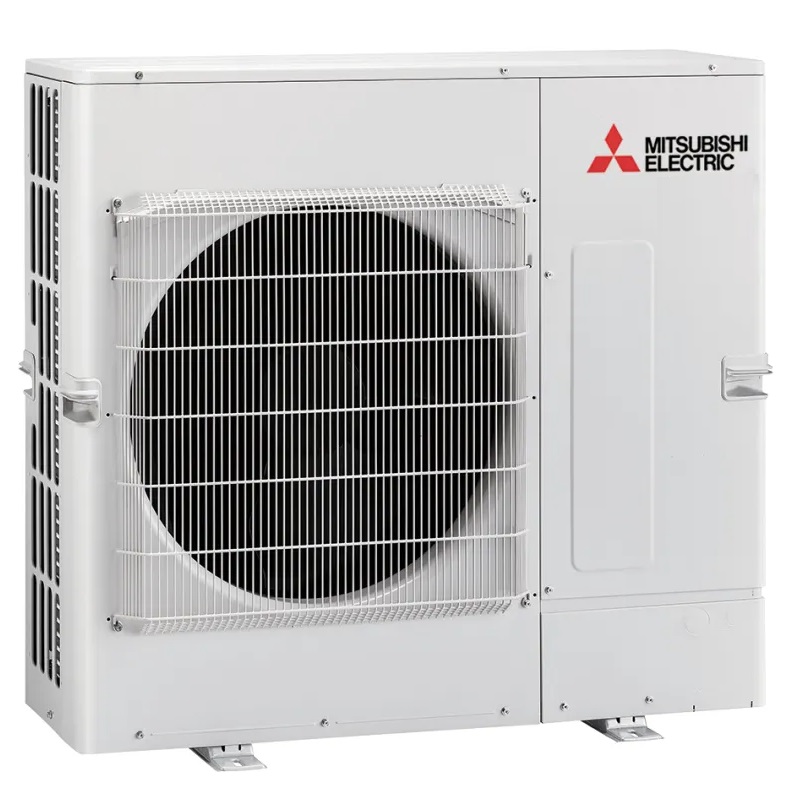

Outdoor unit: PUZ-M125VKA2
Nominal refrigerant power: 12.1 kW
Nominal heating power: 13.5 kW
EER/COP: 3.01/3.61
SEER: 5.3A
SCOP: 150.6%
Nominal consumption in refroidissement mode: 4.01 kW
Consumption in chauffage mode: 3.73 kW
Air debit: 86 M³/min
Acoustic power level (indoor unit) : 66 dB(A)
Acoustic power level (outdoor unit) : 72 dB(A)
Refrigerant fluid: R32
Diameter of liquid/gas tubes: 3/8" - 5/8"
Longueur maximal de tuyaux (verticale/total) : 30/65 meters
Outdoor temperature range of function (refroidissement) : -15 to +46 °C
Outdoor operating temperature range (chauffage) : -15 to +24 °C
Dimensions (interior unit) (H x L x D) : 250 x 1400 x 732 mm
Poids de l'unité intérieure: 40 kg
External unit dimensions (H × L × D): 981 × 1050 × 330 mm
Poids external unit: 84 kg
