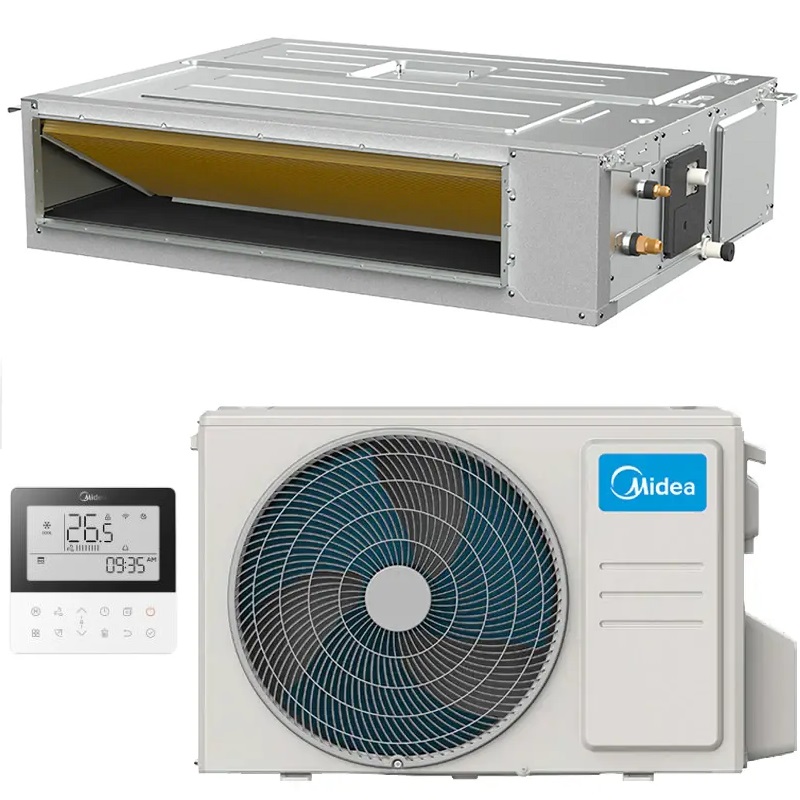

Midea MTJ-105(36)N8R-1 Ducted Air Conditioner 10.5 kW (380V) R32 Wi-Fi
The Midea MTJ-105 (A7) ducted air conditioner is an excellent solution for spaces requiring even air distribution. It automatically adjusts static pressure and can be installed vertically to suit any location. Smart home. Control your air conditioner remotely via the Midea app. Voice control is also available via Alexa and Google Home (optional accessory required).
On/Off switch. The unit is equipped with an on/off switch for remote operation.
Outdoor air intake. Fresh air is drawn directly into the indoor unit. Dual air intake. The indoor unit offers two air intake options: from the bottom or the rear. Vertical installation. Vertical installation is ideal for all types of installations where ceiling mounting is not possible or where floor mounting is preferable.
Technical specifications

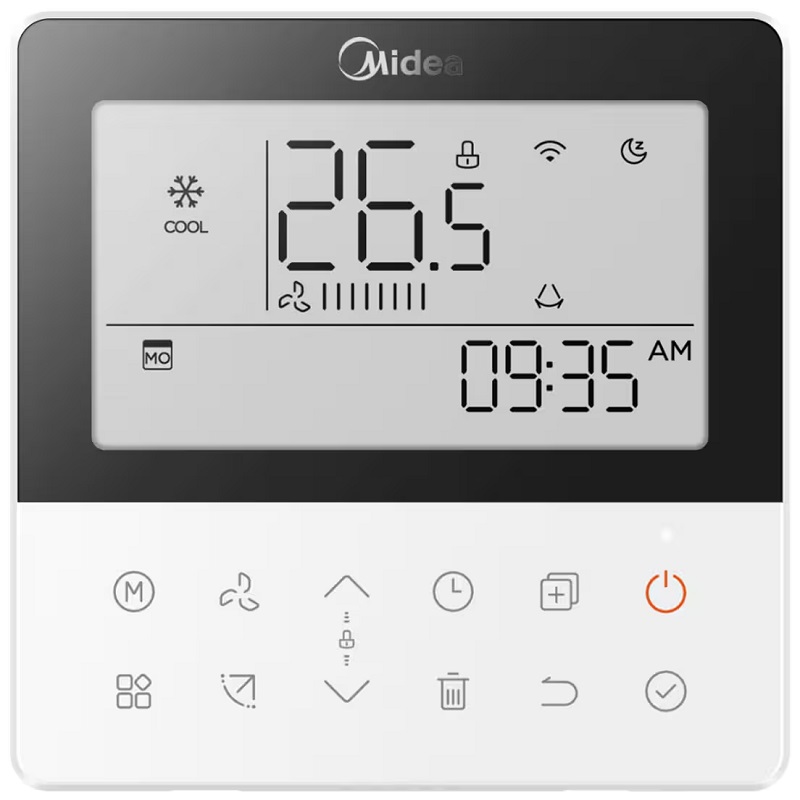

Wi-Fi control included.
Nominal cooling capacity (min./max.): 10.55 (2.75 / 11.14) kW
Nominal heating capacity (min./max.): 11.73 (2.78 / 12.84) kW
Nominal heating capacity at -7°C: 8.51 kW
Nominal cooling consumption (min./max.): 4,000 (890 / 4,200) kW
Nominal heating consumption (min./max.): 3,250 (780 / 4,000) kW
Internal airflow: 1,100 to 1,600 m³/h
External airflow: 4,000 m³/h
Outdoor unit sound level: 63 dB(A)
Refrigerant: R-32 (charge) Initial weight: 2.40 kg)
Refrigerant connections: Ø 3/8" (9.52 mm) / Ø 5/8" (15.88 mm)
Maximum piping length: 50 m (maximum drop: 25 m)
Power supply: 220-240 V / 50 Hz

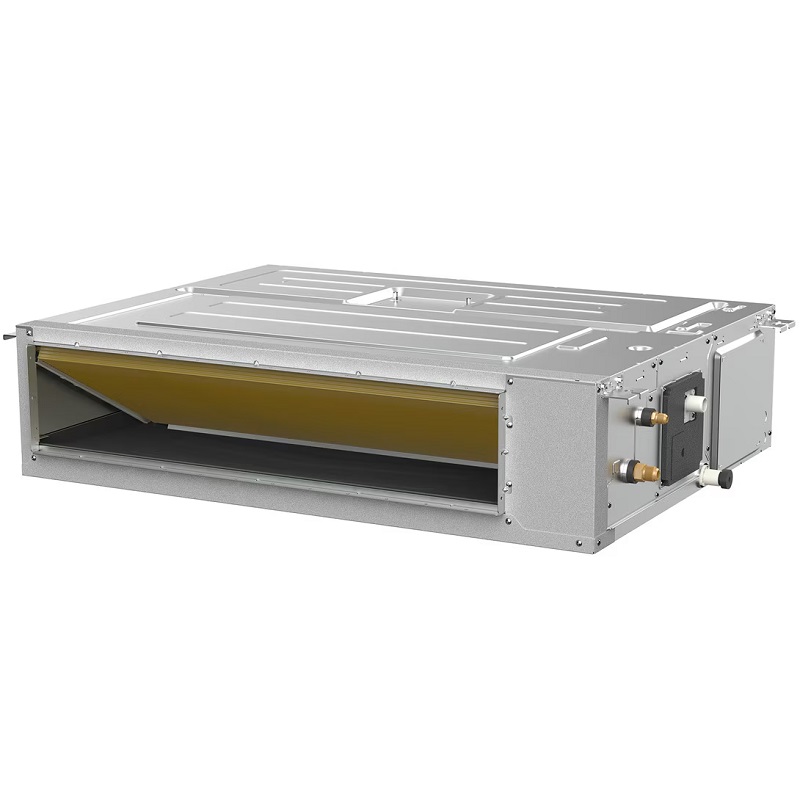

Indoor unit: 1200 x 245 x 750 mm
Weight: 38.4 kg

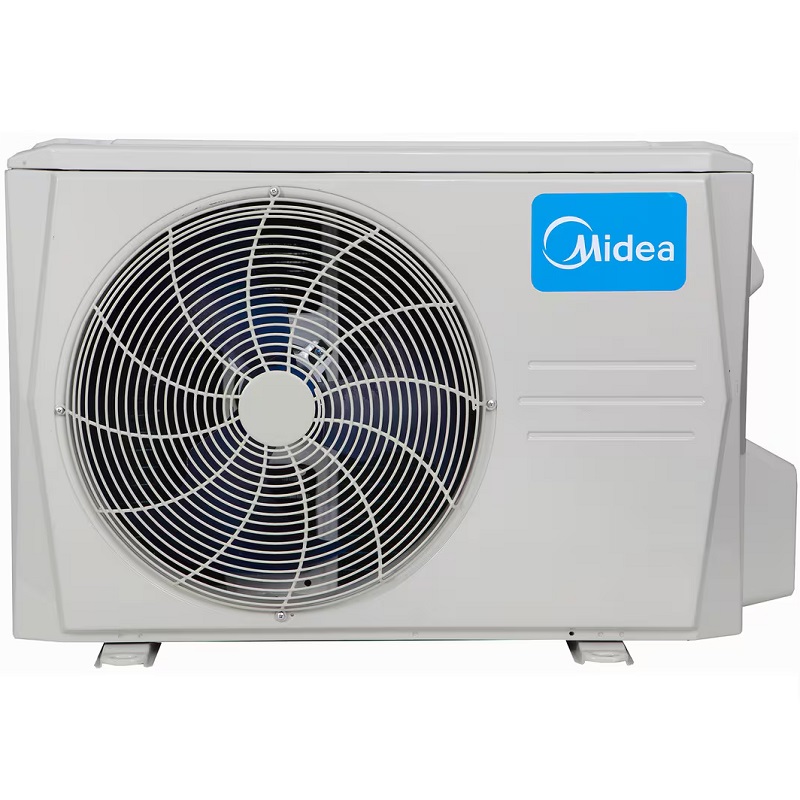

Outdoor unit: 946 x 810 x 410 mm
Weight: 80.5 kg
