HTW MO4-105IX41BR32 Indoor Unit

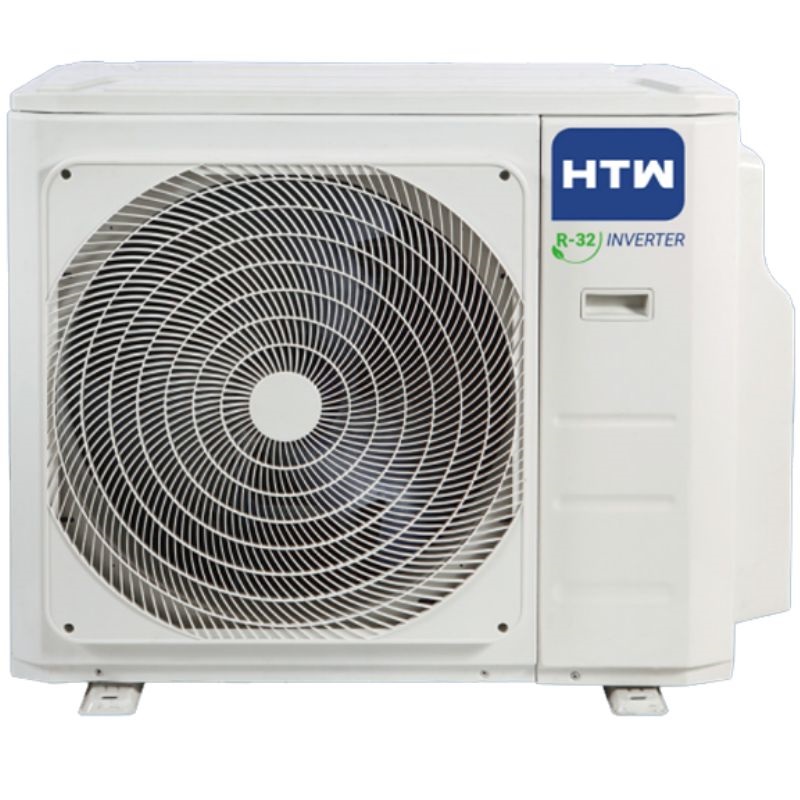

HTW outdoor air conditioning unit with 12.0 kW cooling capacity. Thanks to its ability to power up to 4 indoor units, you can cool large spaces with a single outdoor unit.
Up to 12 operating speeds
Air conditioner protection
Compressor protection
Anti-cold air protection
Design that complements any home décor.
Low noise level thanks to a very low fan speed.
Remote control allows you to control settings such as temperature, speed, mode, and timer on the indoor units from anywhere near them.
Specifications
Power supply: 220-240 V (single-phase ~ 50 Hz)
Cooling capacity
Power: 10.5 kW (6.2 ~ 10.5 kW)
Heating capacity: 36,000 Btu/h (21,000 ~ 36,000 Btu/h)
Power consumption: 3,280 W (2,150 ~ 3,520 W)
SEER: 6.2
Cooling energy class: A++
Heating capacity
Power: 10.5 kW (7.0 ~ 11.1 kW)
Heating capacity: 36,000 Btu/h (24,000 ~ 38,000 Btu/h)
Power consumption: 2630 W (2880 ~ 3360 W)
SCOP: 3.8
Energy Class: A+
Sound Power Level: 67 dB(A)
Sound Pressure Level: 63 dB(A)
Airflow: 4000 m³/h
Operating Temperature: 15~50 °C / -15~24 °C
Refrigerant Type/Charge: 2.1 g R32/kg
Additional Charge > 7.5: 12 g/m³
Connections
Refrigerant Piping
Liquid – Gas: 1/4-3/8 x 3
Maximum Length: 80 m
Maximum Length (Indoor): 35 m
Maximum Length (Indoor/Outdoor): 15 m
Maximum Length (Between Indoor Units): 10 m
Connections Electrical
Power supply: 2 x 4 + T mm²
Interconnection: 3 x 2.5 + T mm²
Weight and dimensions
Outdoor unit
Net dimensions (W x H x D): 946 x 810 x 410 mm
Gross dimensions (W x H x D): 1090 x 875 x 500 mm
Net weight: 68.8 kg
HTW outdoor air conditioning unit with 12.0 kW cooling capacity. Thanks to its ability to power up to 4 indoor units, you can cool large spaces with a single outdoor unit.
Up to 12 operating speeds
Air conditioner protection
Compressor protection
Anti-cold air protection
Design that complements any home décor.
Low noise level thanks to a very low fan speed.
Remote control allows you to control settings such as temperature, speed, mode, and timer on the indoor units from anywhere near them.
Specifications
Power supply: 220-240 V (single-phase ~ 50 Hz)
Cooling capacity
Power: 10.5 kW (6.2 ~ 10.5 kW)
Heating capacity: 36,000 Btu/h (21,000 ~ 36,000 Btu/h)
Power consumption: 3,280 W (2,150 ~ 3,520 W)
SEER: 6.2
Cooling energy class: A++
Heating capacity
Power: 10.5 kW (7.0 ~ 11.1 kW)
Heating capacity: 36,000 Btu/h (24,000 ~ 38,000 Btu/h)
Power consumption: 2630 W (2880 ~ 3360 W)
SCOP: 3.8
Energy Class: A+
Sound Power Level: 67 dB(A)
Sound Pressure Level: 63 dB(A)
Airflow: 4000 m³/h
Operating Temperature: 15~50 °C / -15~24 °C
Refrigerant Type/Charge: 2.1 g R32/kg
Additional Charge > 7.5: 12 g/m³
Connections
Refrigerant Piping
Liquid – Gas: 1/4-3/8 x 3
Maximum Length: 80 m
Maximum Length (Indoor): 35 m
Maximum Length (Indoor/Outdoor): 15 m
Maximum Length (Between Indoor Units): 10 m
Connections Electrical
Power supply: 2 x 4 + T mm²
Interconnection: 3 x 2.5 + T mm²
Weight and dimensions
Outdoor unit
Net dimensions (W x H x D): 946 x 810 x 410 mm
Gross dimensions (W x H x D): 1090 x 875 x 500 mm
Net weight: 68.8 kg
