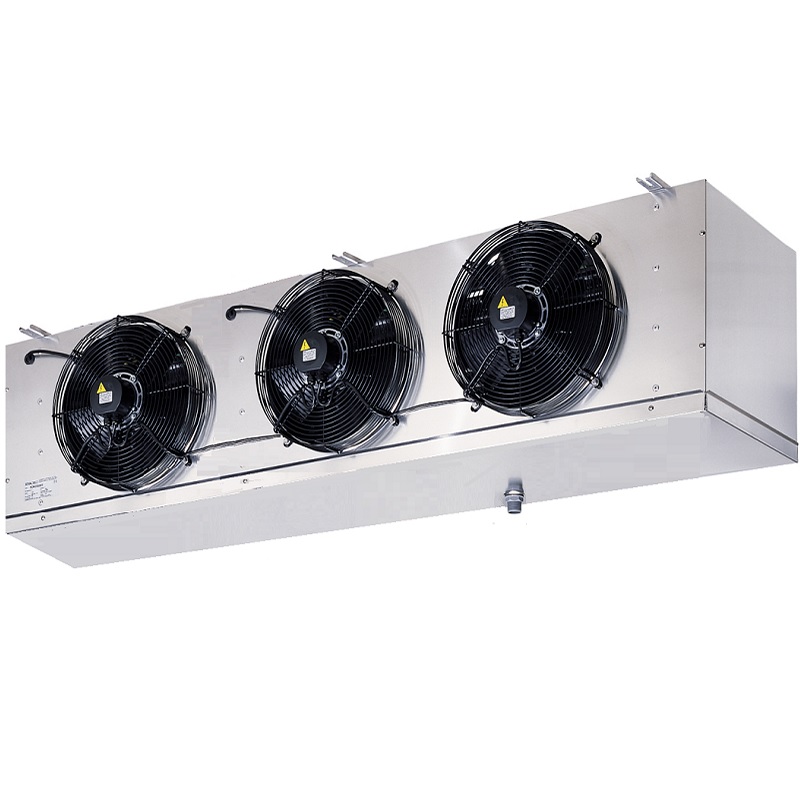

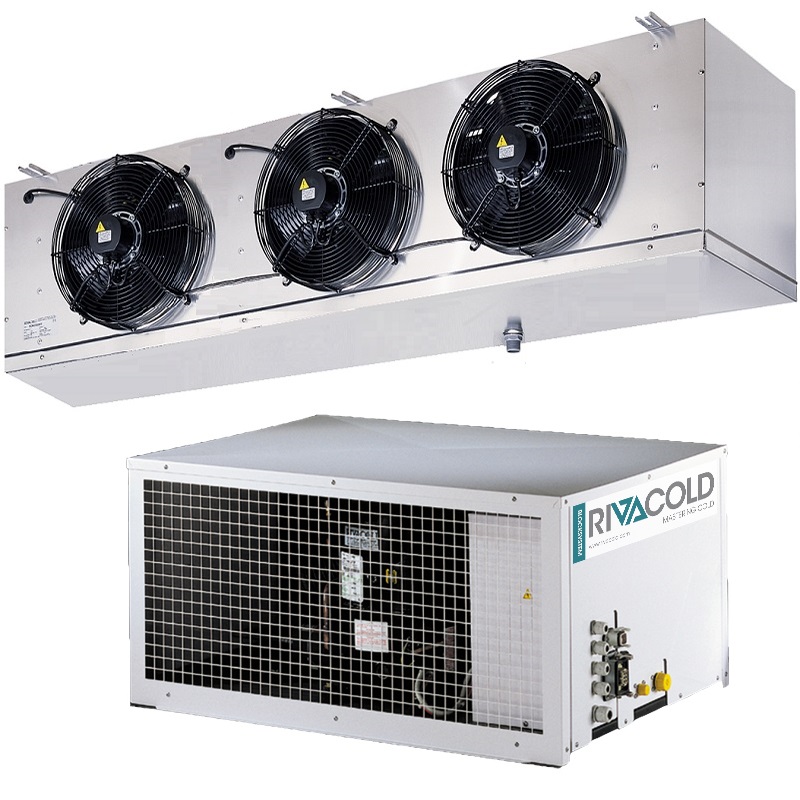

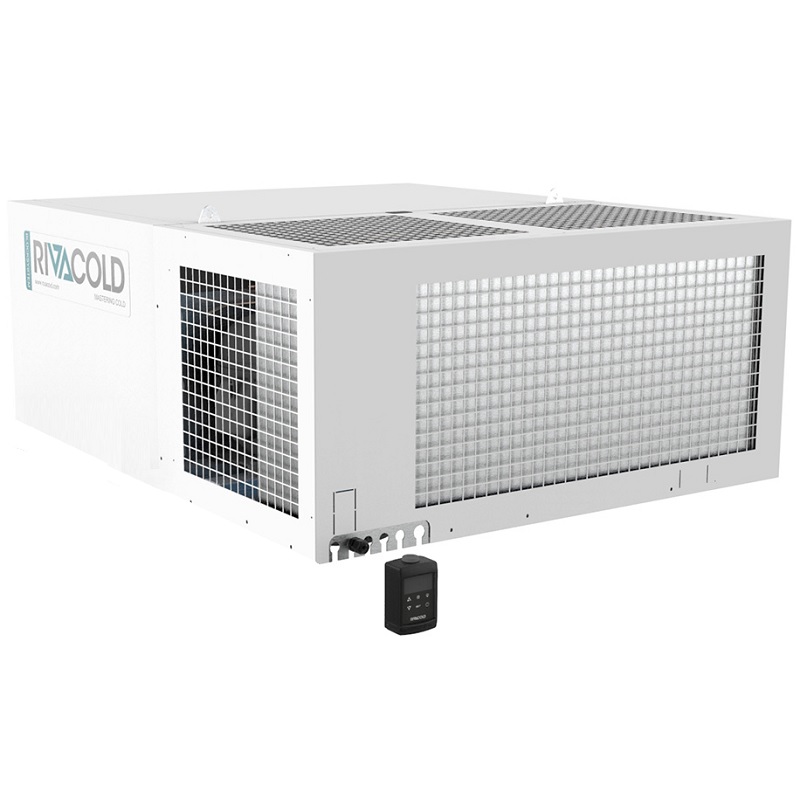

Rivacold STM600R012 Low Voltage Tri-Split Unit, 25.00 HP, R-449A, 400 V

Rivacold STM600R012 Low Voltage Tri-Split Unit, 25.00 HP, R-449A, 400 V

Refrigerant Charge: R452A - R449A
Hermetic Reciprocating Compressor: (≤ STM140)
Semi-Hermetic BITZER Compressor: (≥ STM200 - ≥ STL060)
Crankcase Heater
High-Safety Pressure Switch: (Double A and B > ST...300)
Safety Pressure Switch Adjustable low pressure switch (suitable for pumping)
Condensation control pressure switch: (≥ STM300 - STL350)
Thermostatic valve expansion: (with MOP -10ºC in LV)
Automatic electric defrost
Direct condensate drain (includes a heating element)
Service keys with solder connections
Interconnection cables with quick connector (10 meters: < ST 300)
Interior ceiling light for camera (with 2.5 meter cable: ≤ ST 260)
Door microphone (with 2.5 meter cable: ≤ ST 260)
Power cable (2.5 meters: ≤ ST 260)
Door resistor cable for LV equipment: (2.5 meters ≤ ST...260)
Unified integrated electronic control
Remote control panel: (10 meter cable - 20 meters ≥ ST 300)
Installation and Maintenance Manual
Certification: PED 2014/68/EC
Fan motors comply with: ErP-EU 327/2011
Export packaging: ISPM-15/ISPM-15

Option
Condensation control via pressure switch
Condensation control speed variation: 4 A
Condensation control with speed variation: 8 A (≥ ST300)
Cataphoretic anti-corrosion treatment in coils
100% water condensation: (< STM300 - STL350)
Different or special voltages
Voltage protector: R449A 068-200 060-260: 300-370 350-450: 520-600 750-900
Sub: GWP
Easy to Install
Cold rooms
Ceiling mounted
Medium temperature: BT
Low temperature: R452A
Conformity: F-Gas R (EU) 2024 / 573
Person in room alarm ECP-APE 03 (1 unit per unit)
Connection pipe: 42-1 5/8"
Voltage: 400/3/50 V
Power: 22044 m3/h
Compressor: 400/3/50 Volt
Round outlet diameter: 3 x 500 mm
Indoor unit dimensions: L. 2879 x H. 350 mm
Outdoor unit dimensions: L. 800 x H. 460 mm
