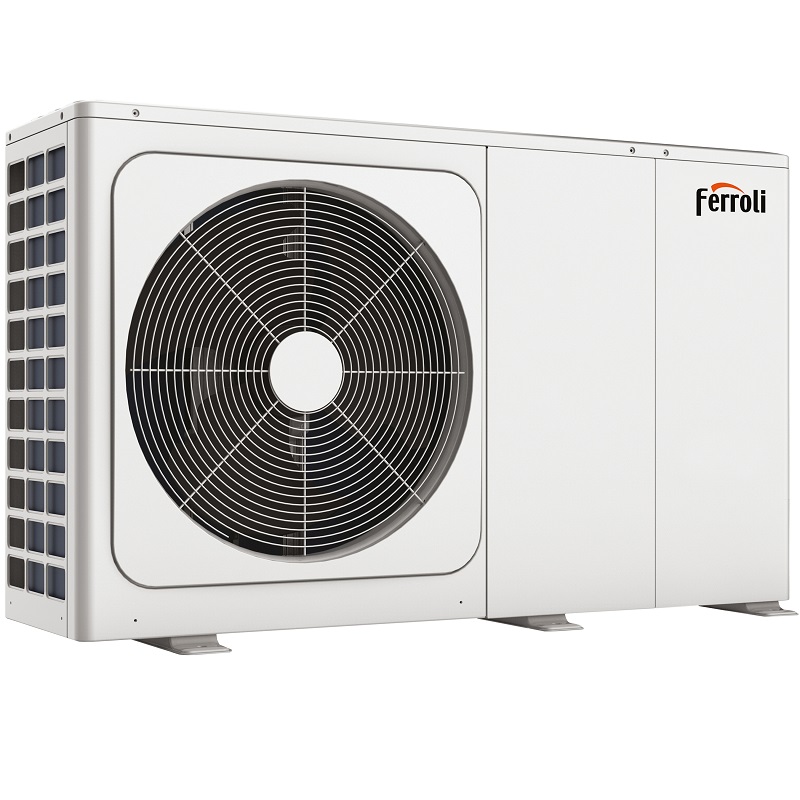

Ferroli OMNIA M 3.2 22T 22.0 kW Air-to-Water Heat Pump. Monobloc (380 V) R32
This highly versatile product offers a wide range of power outputs, efficiently replacing heating, cooling, and domestic hot water systems, all in a single unit.
The new Ferroli Omnia air-to-water heat pumps are the ideal solution for replacing traditional systems such as condensing boilers, air conditioners, or solar thermal panels for domestic hot water production, as they combine these two needs. They allow you to keep your existing radiator or underfloor heating systems operational and run them at low temperatures in both heating and cooling modes.
Technical Specifications
Power Supply: 380/415 V - Three-phase - 50 Hz
Compressor Type: Twin DC Rotary
Number of Compressors/Circuits: 1 / 1
Heating Element Type (Installation Side): Stainless Steel Plate Heat Exchanger
Heating Element Type (Source Side): Hydrophilic Aluminum Fin Coil
Fan Type: Axial DC
Number of Fans: 2
Expansion Tank Volume: 8 L
Safety Valve Pressure: 3 bar
Hydraulic Connections: 1 1/4" Male
Minimum System Water Capacity: 40 L
Minimum Domestic Hot Water Tank Heat Exchanger Area: Stainless Steel 3.5 m², Enamelled Steel 5 m²
Refrigerant Type (GWP): R32 (675)
Factory Refrigerant Charge (kg of refrigerant / kg CO₂ equivalent): 5 kg / 3,375 kg CO₂ equivalent

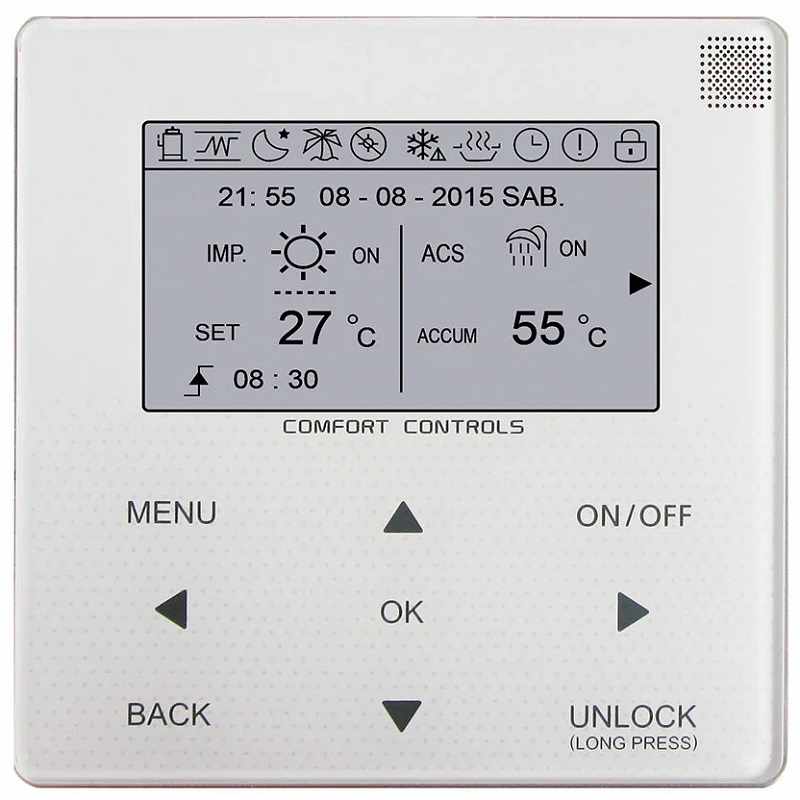

Control: Wired Remote Control
Sound level in heating mode: A7W35 73 dB(A), SIL 2 66 dB(A)
Sound level in cooling mode: A35W18 73 dB(A), SIL 2 66 dB(A)
Maximum input current: 25 A
Dimensions
Length: 1,385 mm
Height: 843 mm
Depth: 523 mm
Weight: 177 kg
This highly versatile product offers a wide range of power outputs, efficiently replacing heating, cooling, and domestic hot water systems, all in a single unit.
The new Ferroli Omnia air-to-water heat pumps are the ideal solution for replacing traditional systems such as condensing boilers, air conditioners, or solar thermal panels for domestic hot water production, as they combine these two needs. They allow you to keep your existing radiator or underfloor heating systems operational and run them at low temperatures in both heating and cooling modes.
Technical Specifications
Power Supply: 380/415 V - Three-phase - 50 Hz
Compressor Type: Twin DC Rotary
Number of Compressors/Circuits: 1 / 1
Heating Element Type (Installation Side): Stainless Steel Plate Heat Exchanger
Heating Element Type (Source Side): Hydrophilic Aluminum Fin Coil
Fan Type: Axial DC
Number of Fans: 2
Expansion Tank Volume: 8 L
Safety Valve Pressure: 3 bar
Hydraulic Connections: 1 1/4" Male
Minimum System Water Capacity: 40 L
Minimum Domestic Hot Water Tank Heat Exchanger Area: Stainless Steel 3.5 m², Enamelled Steel 5 m²
Refrigerant Type (GWP): R32 (675)
Factory Refrigerant Charge (kg of refrigerant / kg CO₂ equivalent): 5 kg / 3,375 kg CO₂ equivalent
Control: Wired Remote Control
Sound level in heating mode: A7W35 73 dB(A), SIL 2 66 dB(A)
Sound level in cooling mode: A35W18 73 dB(A), SIL 2 66 dB(A)
Maximum input current: 25 A
Dimensions
Length: 1,385 mm
Height: 843 mm
Depth: 523 mm
Weight: 177 kg
