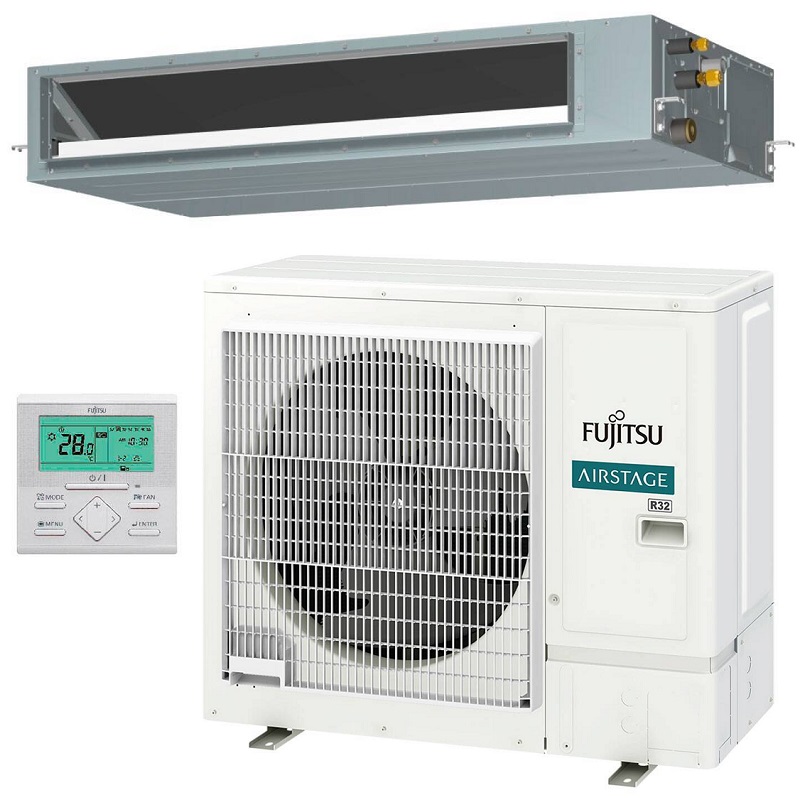

Fujitsu ACY125-KA Ducted Air Conditioner 12.1 kW (230V) R32

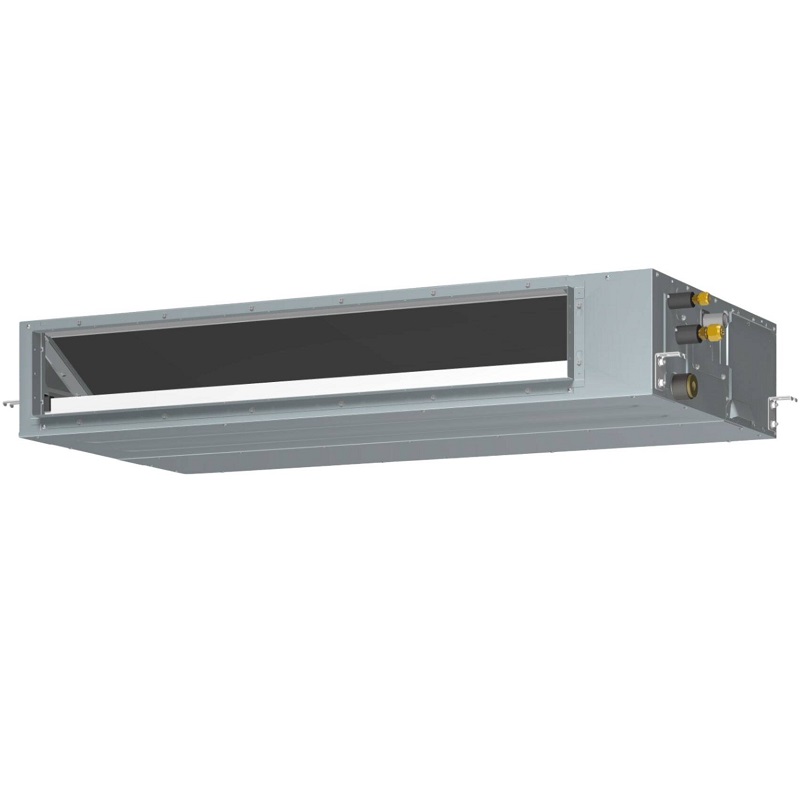

The Fujitsu AC range of medium-pressure ducted air conditioners combines Fujitsu's renowned technology, ensuring optimal airflow, with the advantages of R32 refrigerant and a design that allows for installation of the indoor unit in confined spaces, thanks to the side-mounted control box. The design of this range facilitates maintenance of the motor and fan by simply removing the rear panel and the bottom of the unit, without having to dismantle the main chassis.
Compact Design: Thanks to their compact dimensions (only 198 mm high), these units can be installed even in tight spaces. A drain pump is included as standard.

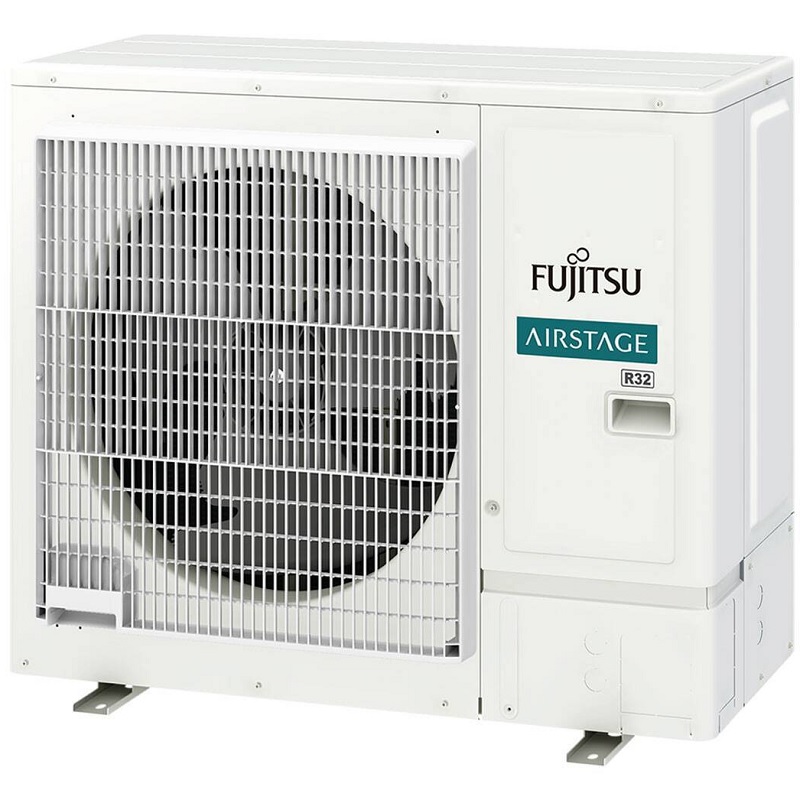

Compact and Lightweight Outdoor Unit: The compact and lightweight outdoor unit expands installation possibilities. Furthermore, thanks to its DC compressors and fans, it delivers high performance while reducing energy consumption.

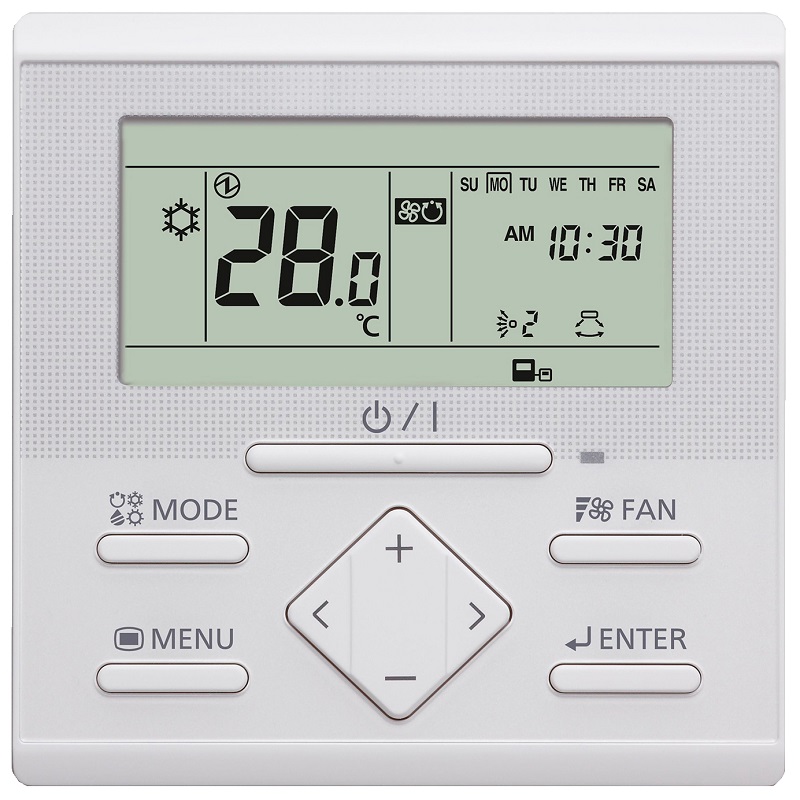

Static pressure: 0 to 90 Pa. These units offer a wide static pressure range. The DC motor allows you to adjust the available pressure from 0 to 90 Pa (10 selectable levels) using the remote control.
Specifications
Brand: Fujitsu
Cooling capacity: 10,404 Frig/h
Heating capacity: 11,608 Kcal/h
Energy efficiency in cooling: A+
Energy efficiency in heating: A
Condensate drain pump included
Voltage: 230 V - 1 phase - 50 Hz
Cooling capacity: 4.84 kW
Heating capacity: 4.18 kW
Cold start current: 28.1 A
Rated current: 21.3 A
Warm start current: 28.1 A
Rated current: 18.3 A
Outdoor unit power cable cross-section: 3 x 4 mm²
Electrical interconnection cable cross-section: 3 x 2.5 mm² + Earth
Indoor unit airflow: min. : 1,070 m³/h and max. Airflow: 2,100 m³/h
Outdoor unit airflow: 4,450 m³/h
Indoor unit sound pressure level: 42 / 38 / 32 / 28 / -
Standard static pressure range: 60 / 30-150 Pa
Refrigerant connection diameter (liquid/gas): 3/8" and 5/8"
Maximum permissible distances (total/vertical): 30 m / 30 m
Refrigerant: R32
Refrigerant charge: 2.4 kg
Maximum pre-charged gas range: 30 m
Operating temperature range (cooling/heating): -10 / 46 / -15 / 24 °C
Indoor unit dimensions (H x W x D): 240 x 1400 x 700 mm
Weight Indoor unit weight: 42 kg
Outdoor unit dimensions (H x W x D): 998 x 940 x 320 mm
Outdoor unit weight: 61 kg
