Fujitsu ACY100-KA 9.5 kW (230V) R32 Ducted Air Conditioner
The Fujitsu AC range of medium-pressure ducted air conditioners combines Fujitsu's renowned technology, ensuring optimal airflow, with the advantages of R32 refrigerant and a design that allows for installation of the indoor unit in confined spaces, thanks to the side-mounted control box. The design of this range facilitates maintenance of the motor and fan by simply removing the rear panel and the bottom of the unit, without having to dismantle the main chassis.

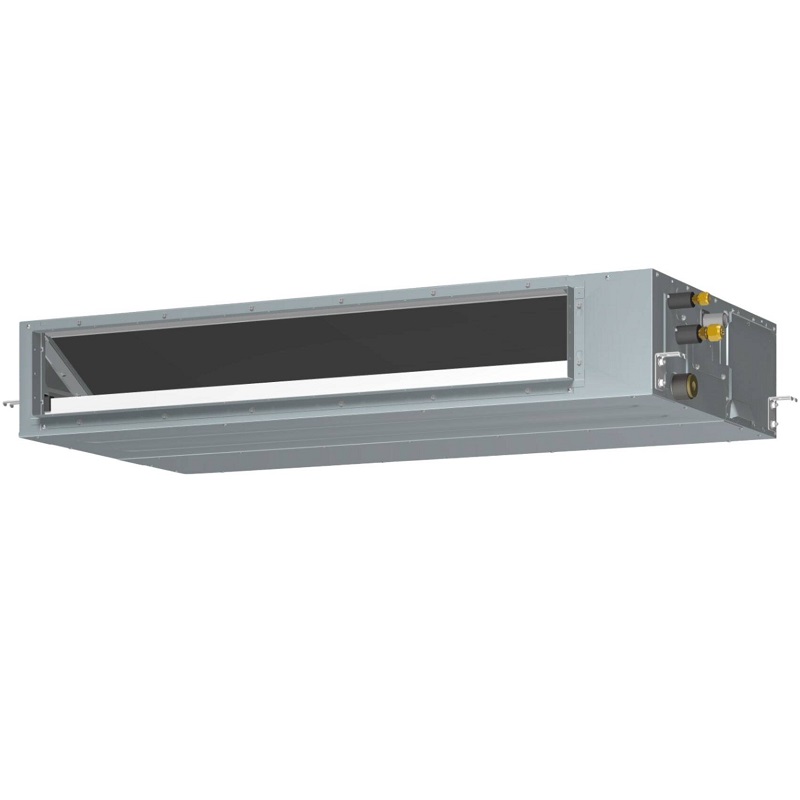

Compact Design: Thanks to their compact dimensions (only 198 mm high), these units can be installed even in tight spaces. A drain pump is included as standard.

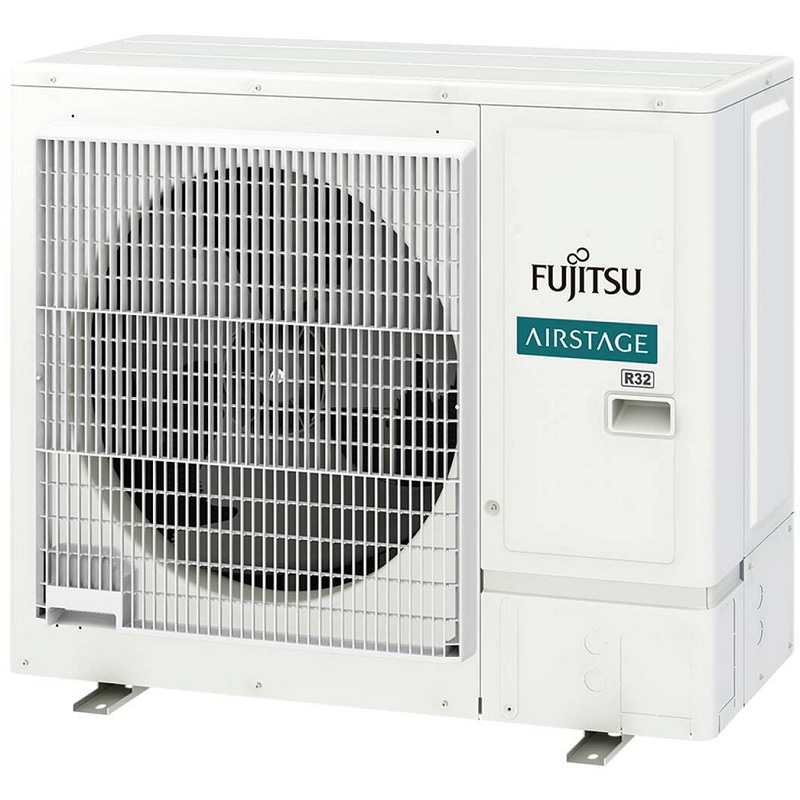

Compact and Lightweight Outdoor Unit: The compact and lightweight outdoor unit expands installation possibilities. Furthermore, thanks to its DC compressors and fans, it delivers high performance while reducing energy consumption.
Static pressure: 0 to 90 Pa. These units offer a wide static pressure range. The DC motor allows you to adjust the available pressure from 0 to 90 Pa (10 selectable levels) using the remote control.
Specifications
Brand: Fujitsu
Cooling Capacity: 8,168 kcal/h
Heating Capacity: 9,286 kcal/h
Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A
Condensate Drain Pump Included
Energy Efficiency: SEER 5.6 / SCOP 3.9
Energy Efficiency: EER 3.13 / COP 3.75
Energy Class: Cooling A+ / Heating A
Voltage: 230 V / 1 Phase / 50 Hz
Power Consumption (Cooling): 3.13 kW
Power Consumption (Heating): 2.88 kW
Outdoor Unit Power Cable Cross-Section: 3 x 2.5 mm²
Connecting Power Cable Cross-Section: 3 x 2.5 mm² + Ground
Indoor Unit Airflow: 2070 m³/h
Outdoor unit airflow: 3750 m³/h
Indoor unit sound pressure level: 38 - 34 - 31 dB
Standard static pressure range: 30-150 Pa
Refrigerant connection diameter (liquid/gas): 3/8" and 5/8"
Maximum permissible distances (total/vertical): 30 m / 30 m
Refrigerant: R32
Refrigerant charge: 1.9 kg
Maximum gas pre-charge distance: 30 m
Operating temperature range (cooling/heating): -10 / 46 / -15 / 24
Indoor unit dimensions (H x W x D): 240 x 1400 x 700 mm
Indoor unit weight: 42 kg
Unit dimensions External dimensions (Height x Width x Depth): 788 x 940 x 320 mm
Weight of external unit: 52 kg
The Fujitsu AC range of medium-pressure ducted air conditioners combines Fujitsu's renowned technology, ensuring optimal airflow, with the advantages of R32 refrigerant and a design that allows for installation of the indoor unit in confined spaces, thanks to the side-mounted control box. The design of this range facilitates maintenance of the motor and fan by simply removing the rear panel and the bottom of the unit, without having to dismantle the main chassis.
Compact Design: Thanks to their compact dimensions (only 198 mm high), these units can be installed even in tight spaces. A drain pump is included as standard.
Compact and Lightweight Outdoor Unit: The compact and lightweight outdoor unit expands installation possibilities. Furthermore, thanks to its DC compressors and fans, it delivers high performance while reducing energy consumption.

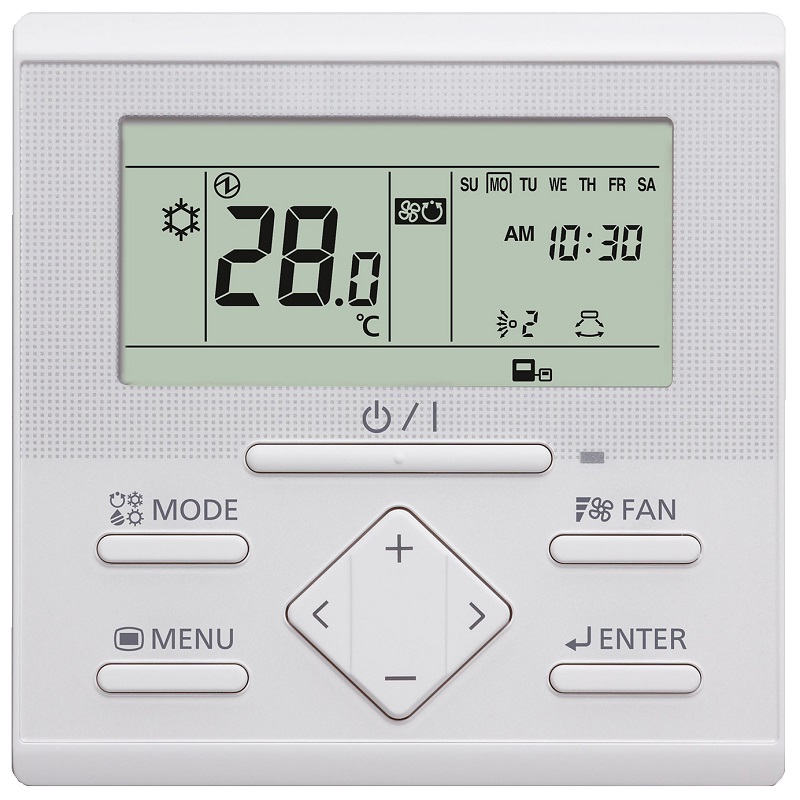

Static pressure: 0 to 90 Pa. These units offer a wide static pressure range. The DC motor allows you to adjust the available pressure from 0 to 90 Pa (10 selectable levels) using the remote control.
Specifications
Brand: Fujitsu
Cooling Capacity: 8,168 kcal/h
Heating Capacity: 9,286 kcal/h
Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A
Condensate Drain Pump Included
Energy Efficiency: SEER 5.6 / SCOP 3.9
Energy Efficiency: EER 3.13 / COP 3.75
Energy Class: Cooling A+ / Heating A
Voltage: 230 V / 1 Phase / 50 Hz
Power Consumption (Cooling): 3.13 kW
Power Consumption (Heating): 2.88 kW
Outdoor Unit Power Cable Cross-Section: 3 x 2.5 mm²
Connecting Power Cable Cross-Section: 3 x 2.5 mm² + Ground
Indoor Unit Airflow: 2070 m³/h
Outdoor unit airflow: 3750 m³/h
Indoor unit sound pressure level: 38 - 34 - 31 dB
Standard static pressure range: 30-150 Pa
Refrigerant connection diameter (liquid/gas): 3/8" and 5/8"
Maximum permissible distances (total/vertical): 30 m / 30 m
Refrigerant: R32
Refrigerant charge: 1.9 kg
Maximum gas pre-charge distance: 30 m
Operating temperature range (cooling/heating): -10 / 46 / -15 / 24
Indoor unit dimensions (H x W x D): 240 x 1400 x 700 mm
Indoor unit weight: 42 kg
Unit dimensions External dimensions (Height x Width x Depth): 788 x 940 x 320 mm
Weight of external unit: 52 kg
