Ferroli OMNIA M 3.2 22T Air-to-Water Heat Pump

Ferroli OMNIA M 3.2 22T Air-to-Water Heat Pump

Ferroli Omnia M 22T 22 kW 400 V Monobloc Air-to-Water Heat Pump with Control Unit
Reversible heat pumps (heating and cooling) for outdoor installation with a DC inverter compressor.
Air-source heat pumps are the energy of the future. Ferroli air-source heat pumps use clean technology capable of extracting up to 79% of the energy from the outside air for optimal indoor comfort. They are designed to provide cooling in summer, heating in winter, and/or domestic hot water production year-round.
This latest-generation heat pump, equipped with inverter technology and using the environmentally friendly R32 refrigerant,
produces heat not by burning fuel, but by extracting energy from the air and transferring it into the home with minimal energy consumption.

Aerothermal energy is the energy of the future.
Ferroli aerothermal heat pumps are designed to provide cooling in summer, heating in winter, and/or domestic hot water year-round.
This latest-generation heat pump, equipped with Inverter technology and using the environmentally friendly R32 refrigerant,
produces heat not by burning fuel, but by capturing energy from the air and distributing it throughout the home. It boasts an A++ energy efficiency rating for water heating up to 55°C and an A+++ rating for heating up to 35°C.
Thanks to its compact size and small dimensions, it can be easily installed outdoors (on a patio, roof, etc.), freeing up space inside.

The OMNIA M 3.2 series is ideal for low-temperature heating systems (fan heaters, radiators, underfloor heating) and guarantees optimal energy efficiency and comfort. It can be combined and integrated with any existing boiler. Its control system optimizes heat production for heating and domestic hot water based on the outside temperature and required operating conditions, thus ensuring maximum efficiency.

It delivers hot water at 60°C in outside temperatures as low as -15°C and at 40°C in outside temperatures as low as -25°C, without any additional accessories. In cold outside temperatures above 0°C (from +5°C), the OMNIA M 3.2 produces hot water up to 65°C. In low outside temperatures, the circulation pump and the electric anti-freeze device of the plate heat exchanger activate, preventing the hydraulic components from freezing. Therefore, adding glycol to the system is unnecessary.

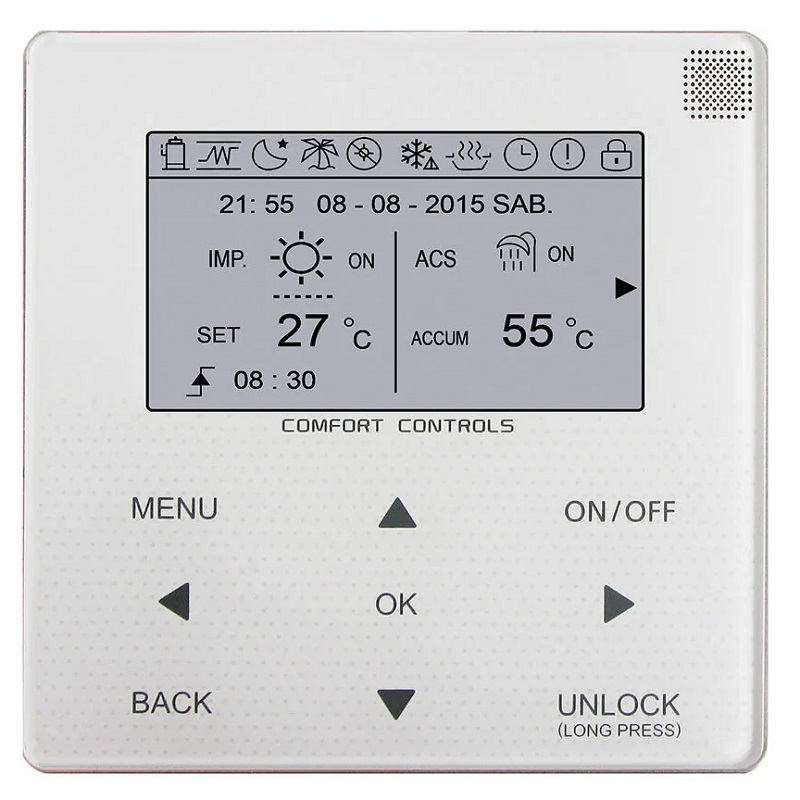

The comprehensive control system monitors all inverter system functions and ensures proper compressor operation. It incorporates control algorithms using predefined and user-selectable temperature curves, domestic hot water circuit management, scheduling of time slots for nighttime noise reduction, alarm display, pump blockage prevention, and integration of external heat generators. Please note that a three-phase (3~/400 V) electrical connection is required for operation, and authorization from the network operator is required before initial installation. Only the network operator or an authorized installer may install the unit.

Specifications
Energy class at 35°C: D A+++
Energy class at 55°C: D A+++
Cooling/heating capacity (CC/HC): 21/22 kW
Seasonal efficiency at low water temperature (35°C): 178
SCOP: temperate/warm climate: 4.53/5.85
Seasonal efficiency at medium water temperature (55°C): 126
SCOP: temperate/warm climate: 3.23/4.09
SEER at 7°C: 4.7
SEER at 18°C: 5.67
DHW SCOP
Heating climate A14: 3.44
Temperate climate A7: 3.10
Cold climate A2: 2.52
Heating capacity: 22 kW
COP: 4.4
Flow rate Water flow rate: 3,784 l/h
Available static pressure: 92 kPa
Heating capacity: 22 kW
COP: 3.4 2.9
Water flow rate: 3,784 l/h
Heating capacity: 22 kW
COP: 2.65 2.3
Water flow rate: 2,365 l/h
Cooling capacity: 23 kW
EER: 4.6
Water flow rate: 3,956 l/h
Cooling capacity: 21 kW
EER: 2.95
Water flow rate: 3,612 l/h
Dimensions (H/W/D): 1558 x 1129 x 528 mm
Net/Gross weight: 177 kg
