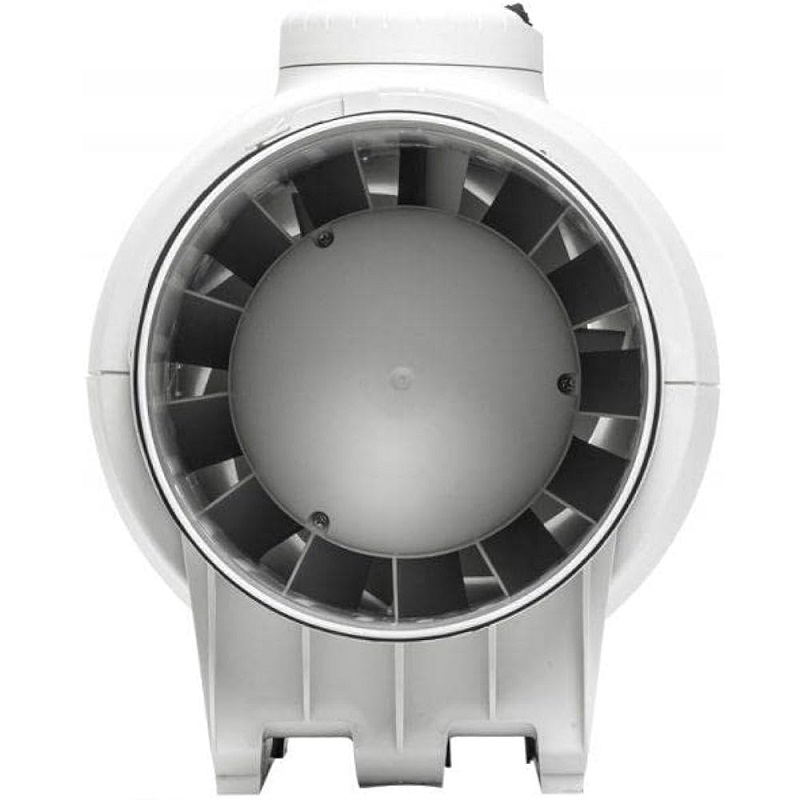

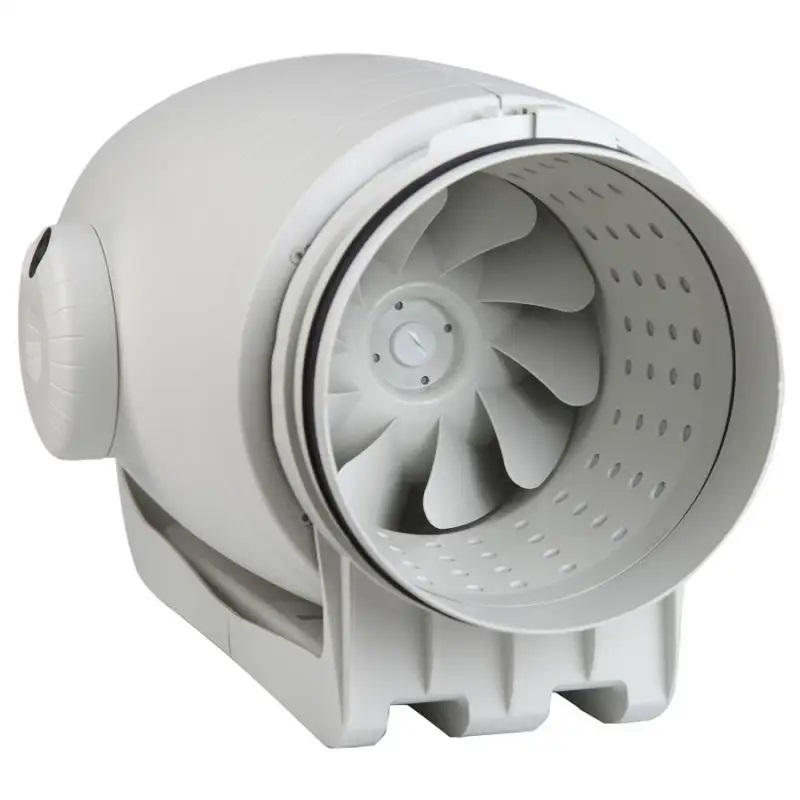

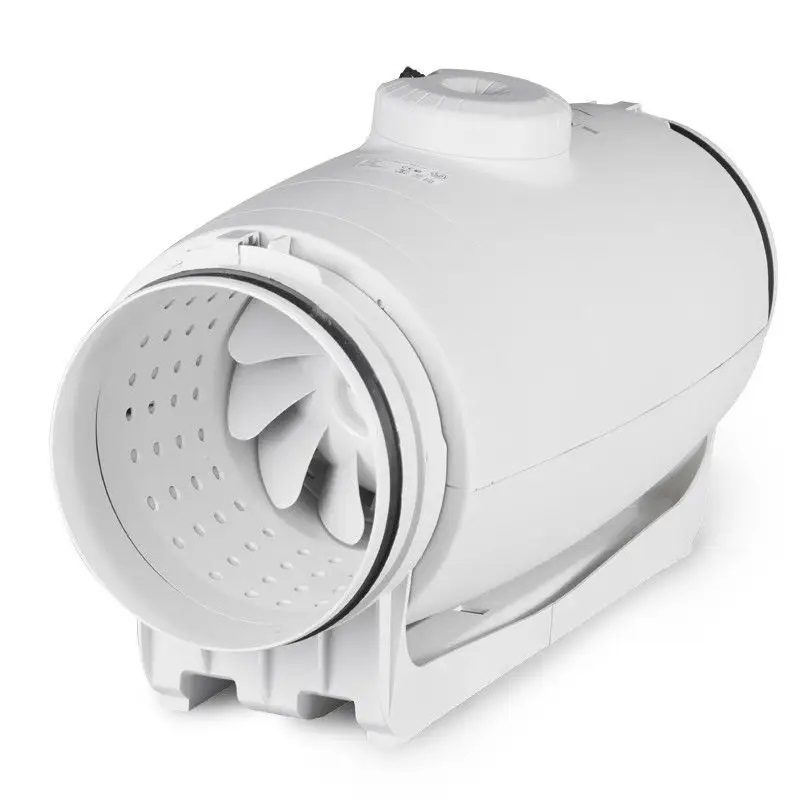

Soler & Palau TD-350/125 SILENT Extractor Fan
Low-profile, mixed-flow duct fan with sound insulation, extremely quiet, made of plastic, external connection box, 230V-50Hz motor-controlled speed, equipped with rubber seals at the inlet and outlet to absorb vibrations, removable body.
The Soler & Palau (S&P) TD-350/125 SILENT duct fan is an inline centrifugal-helical fan designed for ventilating small rooms such as bathrooms, kitchens, or offices. It represents the market benchmark for installations requiring maximum acoustic comfort and a small footprint.
Ultra-low noise level: Between 18 and 25 dB(A) at 3 meters, thanks to its patented internal structure that directs and traps sound waves within a soundproof insulator. Motor: 230V single-phase motor with 2 adjustable speeds. Its nominal power consumption is very economical (approximately 27W to 30W). Protection ratings: IP44 certified with Class B electrical insulation, protecting it against water splashes and solid objects.
Major daily advantages: Simplified maintenance: The motor body is fully removable using quick-release clamps. This allows for cleaning or checking the impeller without touching or dismantling the existing ductwork. Vibration-free: It incorporates airtight rubber seals for both suction and discharge, preventing the transmission of vibrations from the unit to the house's ductwork. Flexible installation: Thanks to its low profile and 360° rotatable external connection box, it can be easily installed in any position, even in false ceilings or confined attics.
Synthetic material
Air transport volume: 331 m³/h
Air volume at pressure 2: 291.115 m³/h
Air volume at pressure 3: 77.7 m³/h
Pressure 2: 25 Pa
Pressure 3: 100 Pa
Connection voltage: 230 V
With thermal overload protection: Yes
DC motor: No
Indirect drive: No
Electrical connection: Connection terminals
Temperature of Maximum air temperature: 40°C
2-speed motor: No
Suitable for electronic control: No
Suitable for frequency control: No
Suitable for low-current control: Yes
Suitable for transformer control: Yes
Flange connection
Dimensions
Connection diameter (conduit): Ø 125 mm
Length: 462 mm
Width: 252 mm
Height: 204 mm
Net weight: 5.0 kg
Low-profile, mixed-flow duct fan with sound insulation, extremely quiet, made of plastic, external connection box, 230V-50Hz motor-controlled speed, equipped with rubber seals at the inlet and outlet to absorb vibrations, removable body.
The Soler & Palau (S&P) TD-350/125 SILENT duct fan is an inline centrifugal-helical fan designed for ventilating small rooms such as bathrooms, kitchens, or offices. It represents the market benchmark for installations requiring maximum acoustic comfort and a small footprint.
Ultra-low noise level: Between 18 and 25 dB(A) at 3 meters, thanks to its patented internal structure that directs and traps sound waves within a soundproof insulator. Motor: 230V single-phase motor with 2 adjustable speeds. Its nominal power consumption is very economical (approximately 27W to 30W). Protection ratings: IP44 certified with Class B electrical insulation, protecting it against water splashes and solid objects.
Major daily advantages: Simplified maintenance: The motor body is fully removable using quick-release clamps. This allows for cleaning or checking the impeller without touching or dismantling the existing ductwork. Vibration-free: It incorporates airtight rubber seals for both suction and discharge, preventing the transmission of vibrations from the unit to the house's ductwork. Flexible installation: Thanks to its low profile and 360° rotatable external connection box, it can be easily installed in any position, even in false ceilings or confined attics.
Synthetic material
Air transport volume: 331 m³/h
Air volume at pressure 2: 291.115 m³/h
Air volume at pressure 3: 77.7 m³/h
Pressure 2: 25 Pa
Pressure 3: 100 Pa
Connection voltage: 230 V
With thermal overload protection: Yes
DC motor: No
Indirect drive: No
Electrical connection: Connection terminals
Temperature of Maximum air temperature: 40°C
2-speed motor: No
Suitable for electronic control: No
Suitable for frequency control: No
Suitable for low-current control: Yes
Suitable for transformer control: Yes
Flange connection
Dimensions
Connection diameter (conduit): Ø 125 mm
Length: 462 mm
Width: 252 mm
Height: 204 mm
Net weight: 5.0 kg
