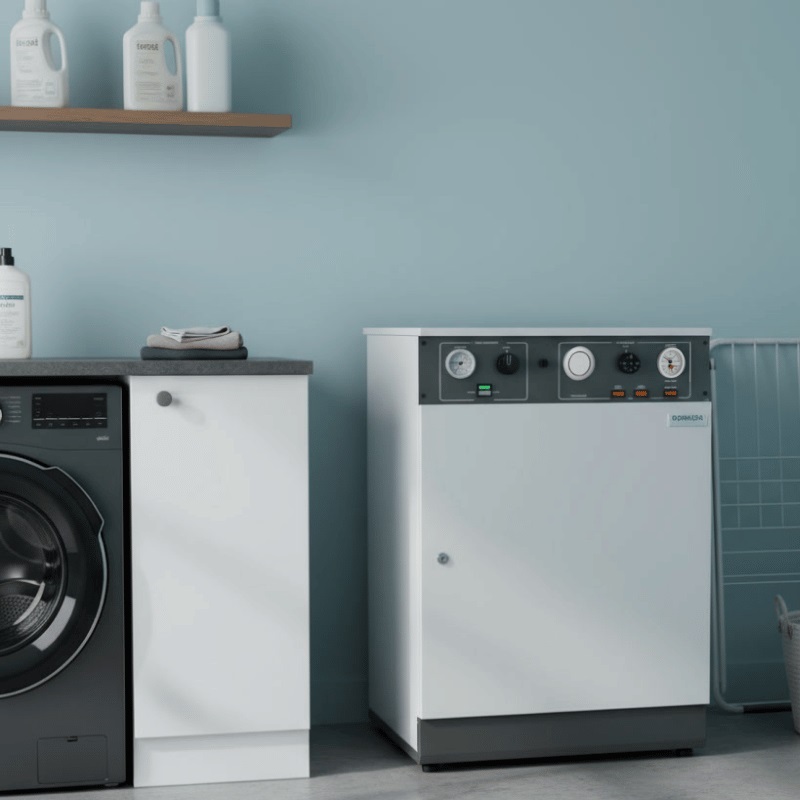

Domusa HDCS 10/15 Electric Boiler, 15.0 kW
The HDCS 10/15 floor-standing electric boiler has a power output of 10.5 to 15 kW and an 80-liter storage tank capacity. Its dimensions are 834 mm high, 600 mm wide, and 590 mm deep. The equipment includes: a main drain valve, a stainless steel storage tank, an automatic air vent, an electric heating element, a thermometer, a safety thermostat, an electric heating element for domestic hot water (DHW), a pressure gauge, a heating control thermostat, a DHW non-return valve, a power selector, a heating pump, an expansion vessel, a main switch, a pressure switch, a dielectric connector, and a heating safety valve.
Features
Suitable for: apartments or houses, up to 120 m²
Heating only, 12,900 kcal/h
Energy: Electric
Position: Floor
Flue venting: No venting required
Hot water requirement: Heating + 1 bathroom
Hot water production: Storage tank
Power: 12 to 20 kW
Supply voltage: Multi-voltage
Energy label: Heating D
Energy label: Domestic hot water C
Main and half-power switch
Heating circulator
Expansion tank
Air vent
Safety valve
Pressure switch
Drain valve
Non-return valve
Heating outlet: 3/4"
Heating return: 1"
Safety valve: 1/2"
Drain: 1/2"
5-year warranty on heating element
Dimensions (H x W x D) ): 835 x 600 x 590 mm
