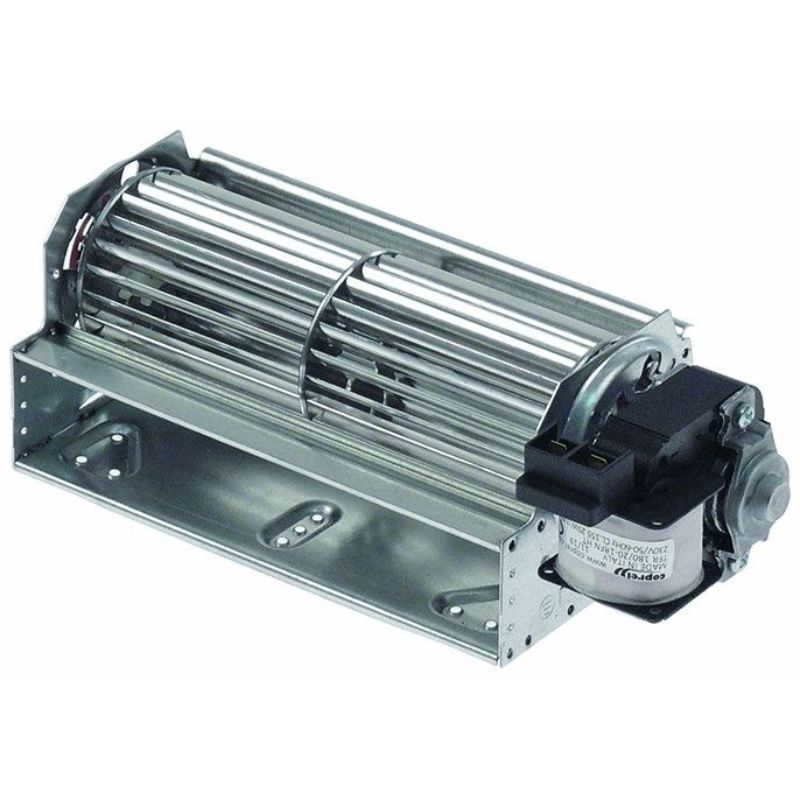

Coprel TGO-60/240-30 Tangential Fan, Left-Handed. 240 mm x 60 mm Diameter. 34 L. 200 m³/h
Maintenance: Due to its long impeller, this fan is prone to dust accumulation, which can unbalance the blades; periodic cleaning is recommended to prevent noise and vibration.
The TGO-60/240-30 tangential fan, equipped with a left-handed motor, is a component designed for refrigeration, air conditioning, and heating systems requiring a uniform and quiet airflow.
Compatibility: Always check that the direction of rotation and motor position match your existing equipment, as right-handed motor versions are available. Common applications: Evaporators, compact air conditioning units, and pellet stoves
Technical specifications
Motor position: Left (viewed from the air outlet)
Purchase and installation considerations
Voltage: 230 V/50 Hz
Temperature range: -10 to +60 °C
Power: 37 W
Bearing: Rubber
Motor position: Left
Roller length: 240 mm
Rolled core thickness: 30 mm
Type: TFR
Airflow: 212 m³/h
Roller diameter: 60 mm
Wheel dimensions: L.240 x W.60 mm
