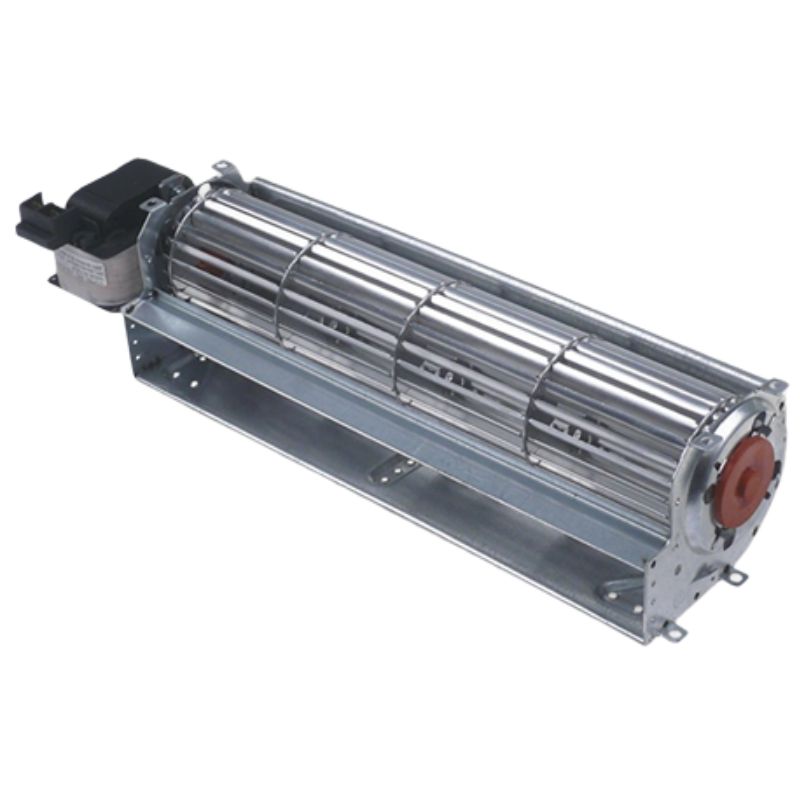

Coprel TGO-60/240-20 Right-Hand Tangential Fan. 240 mm x 60 mm Ø. 22 W. 150 m³/h
The Coprel TGO-60/240-20 left-hand tangential fan is an industrial ventilation component designed for applications requiring a uniform and quiet airflow, such as refrigeration systems, pellet stoves, or air curtains.
Main Features
Model: TGO 60/1-240/20
Motor Position: Right (indicated by "L" or "Lh" in technical codes)
Materials: Galvanized sheet metal housing and aluminum turbine with intermediate reinforcing discs
Motor: Protected single-phase, two-pole motor designed for continuous operation
Operating Temperature: Suitable for operation from -10°C to +60°C (standard versions)
Connection: Faston-type terminals (6.3 x 0.8 mm) integrated into the coil
Roll Diameter: 60 mm
Roll Length: 240 mm
Overall Length: Approx. 313 mm
Ferromagnetic Core: 20 mm
Power Supply: 230 V / 50 Hz
Power: 35 W
Airflow: 204 m³/h
Dimensions Input dimensions: 244 x 40 mm
The Coprel TGO-60/240-20 left-hand tangential fan is an industrial ventilation component designed for applications requiring a uniform and quiet airflow, such as refrigeration systems, pellet stoves, or air curtains.
Main Features
Model: TGO 60/1-240/20
Motor Position: Right (indicated by "L" or "Lh" in technical codes)
Materials: Galvanized sheet metal housing and aluminum turbine with intermediate reinforcing discs
Motor: Protected single-phase, two-pole motor designed for continuous operation
Operating Temperature: Suitable for operation from -10°C to +60°C (standard versions)
Connection: Faston-type terminals (6.3 x 0.8 mm) integrated into the coil
Roll Diameter: 60 mm
Roll Length: 240 mm
Overall Length: Approx. 313 mm
Ferromagnetic Core: 20 mm
Power Supply: 230 V / 50 Hz
Power: 35 W
Airflow: 204 m³/h
Dimensions Input dimensions: 244 x 40 mm
