Home/DIY and home automation/Electricity/Mitsubishi S-T20 AC Contactor 200V 10A 7kW Contacts: 1 NO + 1 NC - 200V/18A - AC 3 - 440V/20A

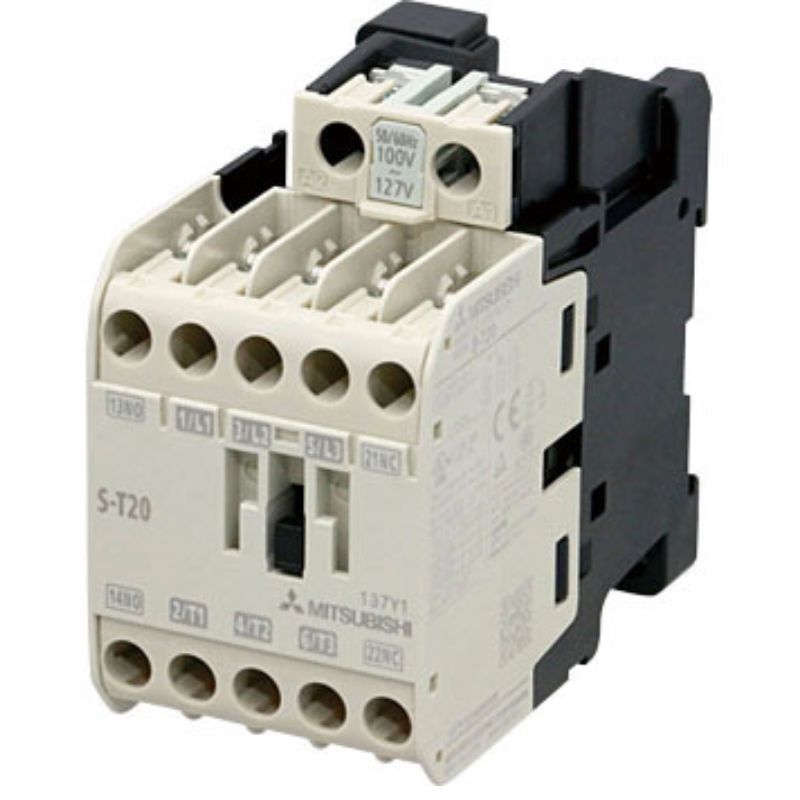

Mitsubishi S-T20 AC Contactor 200V 10A 7kW Contacts: 1 NO + 1 NC - 200V/18A - AC 3 - 440V/20A
Please sign in so that we can notify you about a reply
Mitsubishi S-T20 AC Contactor 200V 10A 7kW Contacts: 1 NO + 1 NC - 200V/18A - AC 3 - 440V/20A
FA-MC: Magnetic Contactor Series
Magnetic Contactor: MS-T Series
Type: Non-reversing
Operation: AC
Frame Size: 20
Current Type: AC
Coil Voltage: 200-240V (V)
Rated Current: (A)
Three-Phase AC 690V: 9
Rated Capacity
Three-Phase AC 220-240V: 4.5 (V)
Rated Capacity: (2) (kW)
Three-Phase AC 380-440V: 7.5 (V)
Rated Capacity: (3) (kW)
Three-Phase AC 690V: 7.5 (V)
Rated Voltage: 690 (V)
Number of Poles: 3
Number of Auxiliary Contacts: NO 1
Number of Auxiliary Contacts: NC 1
Frequency Range: 50/60 (Hz)
Min. Ambient Temperature: -10 (°C)
Max. Ambient Temperature: 40 (°C)
Wiring Design: Screw Clamp Style
Standard
Complies with EN60947-4-1 Standard(s)
Complies with IEC60947-4-1 Standard(s) (2)
Complies with JIS C8201-4-1 Standard(s) (3)
Electrical Durability (Load) 100,000 (at 18 A, AC 3, 380-440 V AC)
Mechanical Durability (No-load) 10,000,000 operations
Protection Class IP20
Product Dimensions and Weight
Width: 43 (mm)
Height (mm) 75 (mm)
Depth: 78 (mm)
Weight: 0.27 (kg)
Logistical Dimensions and Gross Weight
Length: 7.5 (cm)
Width: 4.5 (cm)
Height: 7.7 (cm)
Gross Weight: 0.283 (kg)
