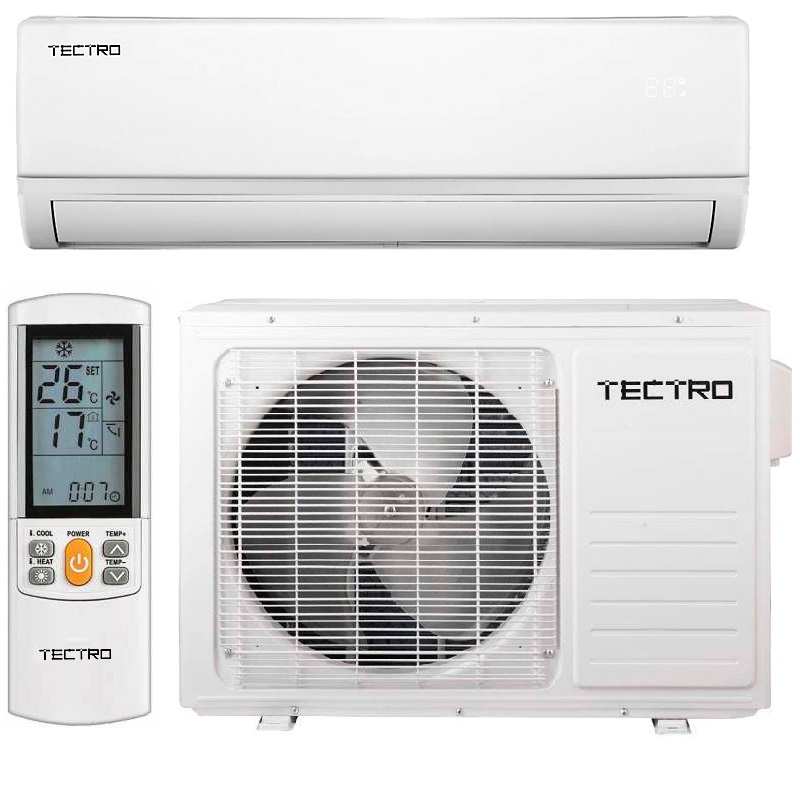

Tectro inverter air conditioner TS1432 inverter 3.5 kw
Energy saving, It offers different operating modes that achieve the maximum performance of the equipment.
Air quality, the high density catalytic filter increases air filtration efficiency by 50% compared to a conventional filter, ensuring better air quality
Design, the indoor unit has a modern design, enhancing and contributing to the harmonization and elements of the space where it is installed

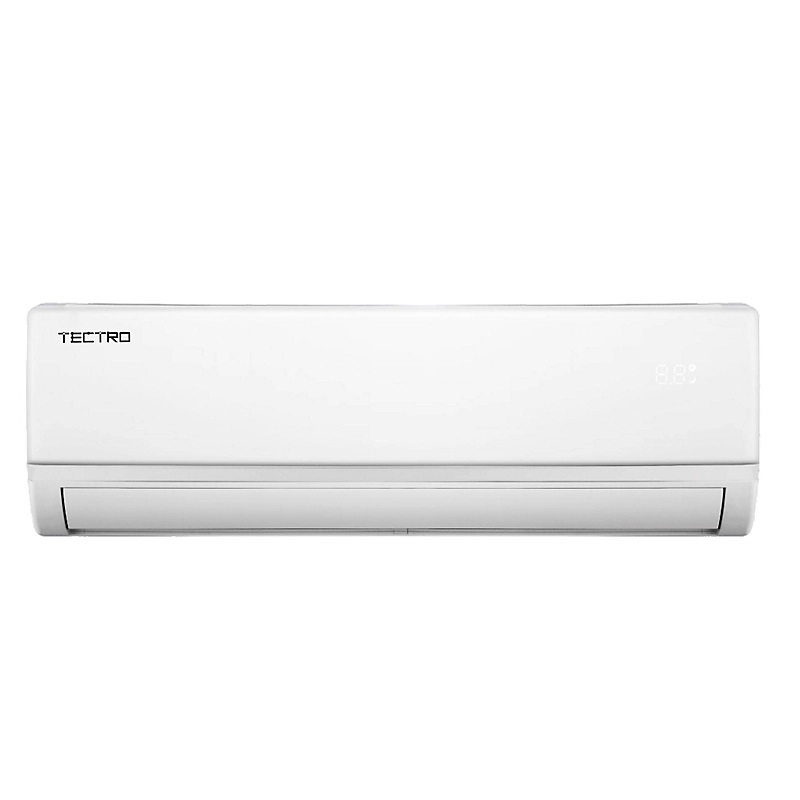

Indoor unit
Cooling/heating capacity: 3.4 - 3.4 kW
SEER/SCOP: 6.1 - 4.0W/W
Energy efficiency class: A ++ / A +
Dehumidification: 28.8 l / 24 hours
Cooling/heating absorption: 1.13 - 0.92 kW
Airflow 550 m³/hour
Indoor unit dimensions 777 × 201 × 255 W x D x H mm
Indoor unit weight 8 kg
Indoor sound level 22 db outdoor

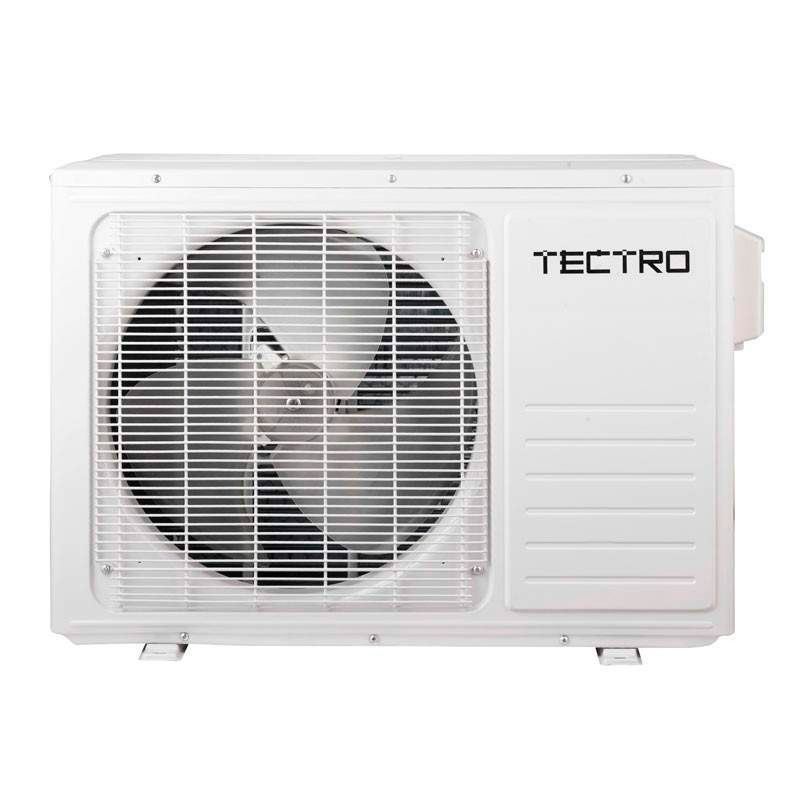

Outdoor unit
Nominal power in cooling mode 3.2 kW, ( 1 – 3.72 kW )
Nominal power in heating mode 3.5 kW, SCOP 4, capacity ( 1 – 3.83 kW )
Nominal absorbed power 710 W
Airflow (nominal): 550 m³/h
Dehumidification capacity 24 l/h.
Dimensions 700 x 552 x 256 mm (WxHxD)
Sound pressure 50db(A)
Sound power 55 db(A)
1/4″-3/8″ connections
Maximum hose length 25 meters
Maximum drop 10 meters
rotary compressor
Power 2752 Frig/H
Power in heating mode 3010 Kcal/H
Energy efficiency: A++
Refrigerant gas R32
Supply voltage 220W
Peso unidad exterior 22 kg
Options
Without set
