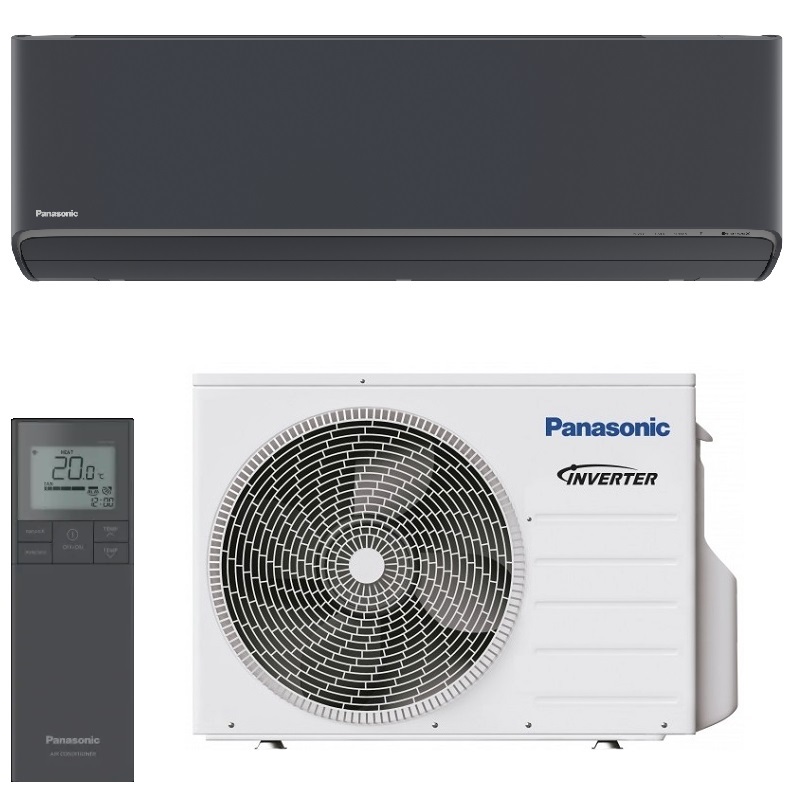

Panasonic KIT-XZ25XKE-H Black Air Conditioner
High-efficiency Panasonic R2 rotary compressor
Air purification function, nanoe™ X Mark 3 technology
Features an anti-allergy filter
Super quiet mode: 19 dB(A)
Aerowings louvers
Cooling operation down to -10°C outdoor temperature
Heating operation down to -20°C outdoor temperature
Odor elimination function
Removable and washable front panel
High-performance mode
Gentle dehumidification mode
Customizable airflow direction
Auto mode
Warm start function
Real-time clock with dual on/off timer

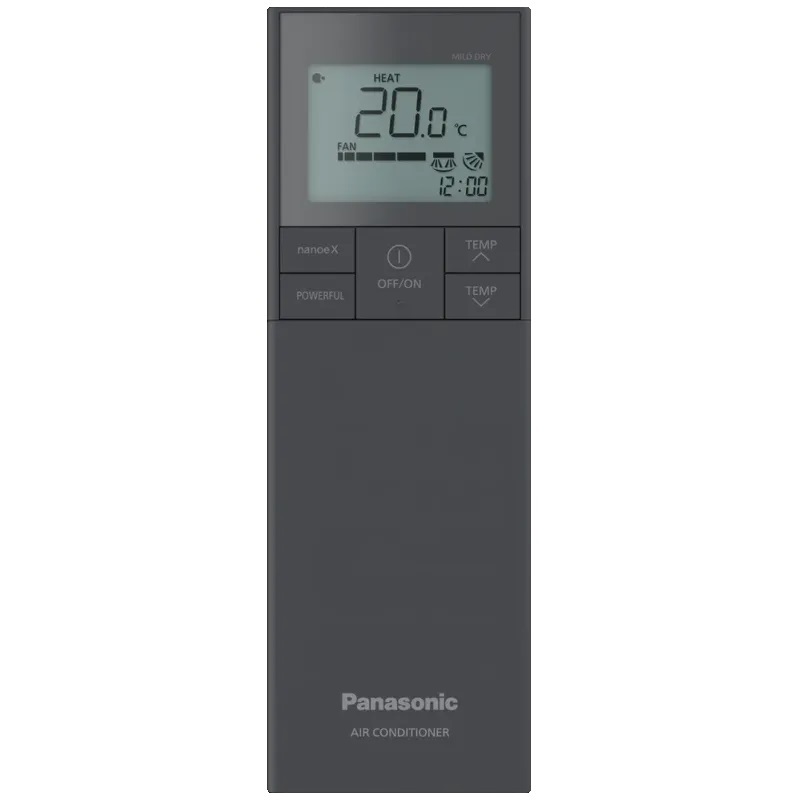

Infrared controller with LCD display
Removable top cover
Self-diagnostic function
RAC interface adapter
Integrated Wi-Fi module
Easy control via BMS system
Compressor warranty: 5 years
Energy class of the wall-mounted split air conditioner
Class A++
Specifications
Nominal 2.50 kW
Minimum 0.85 kW
Maximum 3.50 kW
SEER 9.50
Energy rating for cooling A+++
Heating capacity
Nominal 3.40 kW
Minimum 0.80 kW
Maximum 4.80 kW
A -7°C 2.80 kW
Pdesign -10°C 2.60 kW
SCOP 5.20
Energy rating for heating A+++
Connection
Refrigerant R32
Gas diameter 3/8"
Liquid diameter 1/4"
Maximum line length 15 m
Pre-filled 7.5 m
Maximum height difference 15 m
Power cable mm² 3 x 2.5
Intermediate cable mm² 4 x 1.5
Dimensions
External dimensions (W x H x D) 780 x 542 x 289 mm
Interior dimensions (W x H x D): 779 x 290 x 209 mm
Indoor split unit weight: 10 kg
Outdoor unit weight: 27 kg
