Toshiba SPA DI CLASIC 160 13.0 kW (230V) R32 Ducted Air Conditioner

Toshiba SPA DI CLASIC 160 13.0 kW (230V) R32 Ducted Air Conditioner

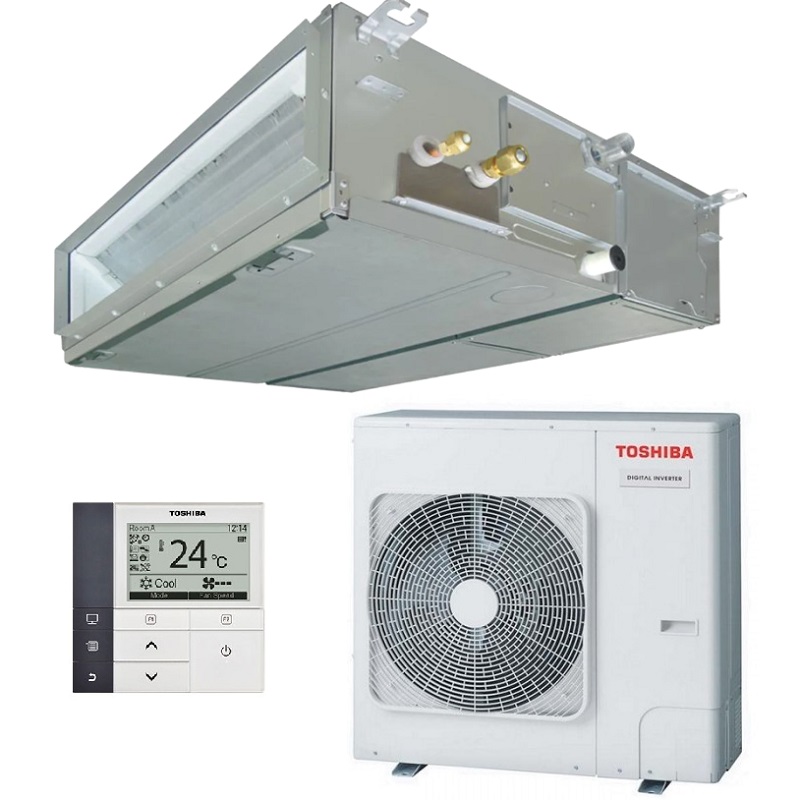

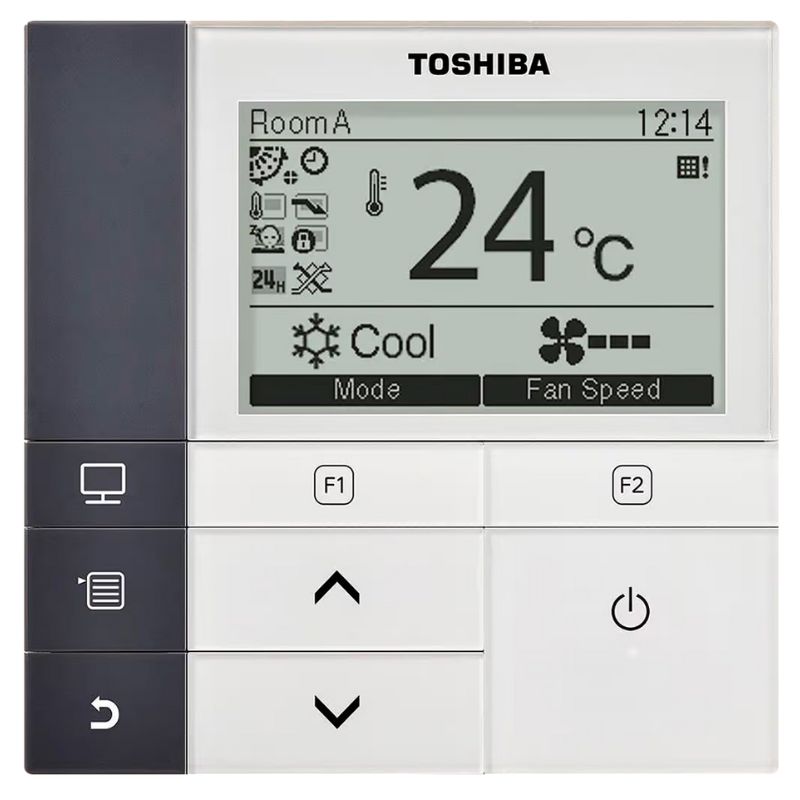

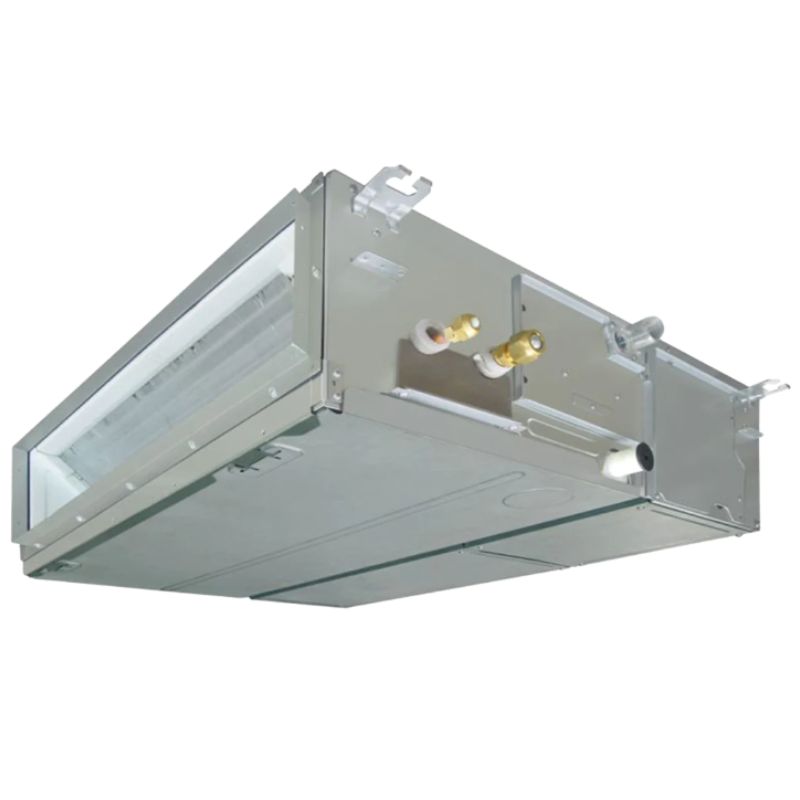

The Toshiba SPA 160 Classic R32 ducted air conditioning system consists of an indoor unit (part number RAV-HM1601BTP-E) with a sound pressure level of 40/33 dB, an outdoor unit (part number RAV-GV1601ATP-E) with a nominal capacity of 13 kW in cooling mode and 13.5 kW in heating mode, and a standard wired remote control (part number RBC-AS11E).

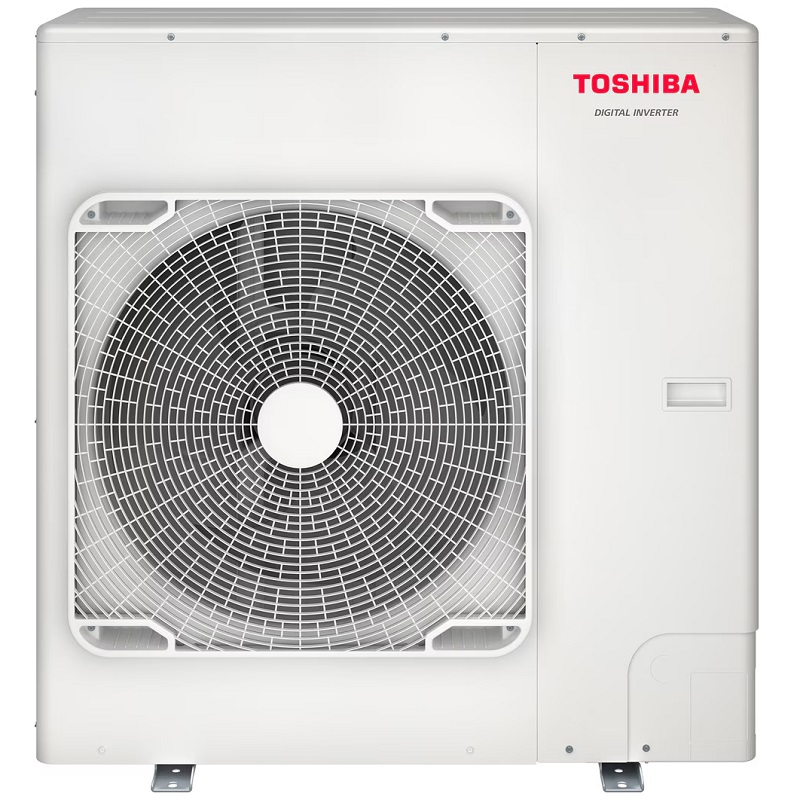

The Toshiba SPA 160 Classic R32 Inverter Ducted Air Conditioner belongs to Toshiba's Digital Inverter Classic range and is ideal for rooms up to 120 m². It is equipped with an outdoor unit (part number RAV-GV1601ATP-E) using Twin Rotary technology, which allows the compressor to operate quietly and optimizes efficiency thanks to its powerful, large-surface magnetic rotor.

The Toshiba SPA DI CLASSIC 160 R32 ducted air conditioner features a flexible design that allows you to configure the air intake according to your needs, choosing between the standard rear inlet and the bottom inlet. It also features a fresh air intake through a pre-installed opening. This unit is highly adaptable, with a pressure of up to 150 Pa thanks to its DC fan motor.

The Toshiba Spa DI Classic 160 R32 ducted air conditioner offers great versatility, both in terms of its ease of installation and its design. The compact size of the indoor unit and the included drain pump facilitate installation in false or low ceilings. This air conditioner is compatible with AirZone, allowing the indoor unit to control multiple rooms simultaneously.

The Toshiba SPA DI CLASSIC 160 R32 ducted air conditioner offers optimal air distribution thanks to the indoor unit's three oscillation modes, allowing individual adjustment of the fan position. It also allows optimal air circulation in all directions. Optionally, the user can purchase a germicidal chamber (not manufactured by Toshiba) for up to 98% inactivation of bacteria and viruses.

The Toshiba SPA DI CLASSIC 160 ducted air conditioner can cool up to 120 m². However, it is not recommended to choose an air conditioning system based solely on its surface area. At RP, we have a project design department that will advise you, conduct a thorough study, and provide you with a reasonable installation quote, allowing you to choose the most suitable air conditioning system.

Specifications
Operating Mode: Cooling - Heating
Nominal Cooling Capacity (kW): 6.7
Nominal Heating Capacity (kW): 7.7
Nominal Cooling/Heating Consumption (kW): 2.4/2.3
Energy Rating: Cooling/Heating: A/A+
SEER: 5.2
SCOP: 4.13
Flow Rate: 45 m3/min
Refrigerant: R-32
Pipe Diameter: 9.52 (3/8") / 15.88 (5/8")
Maximum Vertical Pipe Distance: 20 meters
Maximum Total Pipe Distance: 30 meters
Power Supply: Single-phase
Indoor Unit: RAV-HM801BTP-E
Type: Ducted
Cooling/Heating Capacity: 6.7 - 7.7
Noise Level: 26 dBA
Internal Unit Dimensions
Height: 275 mm
Width: 1000 mm
Depth: 750 mm
Weight: 30 kg
Outdoor Unit Dimensions
Dimensions (mm): 550 x 780 x 290 mm
Weight: 43 kg
