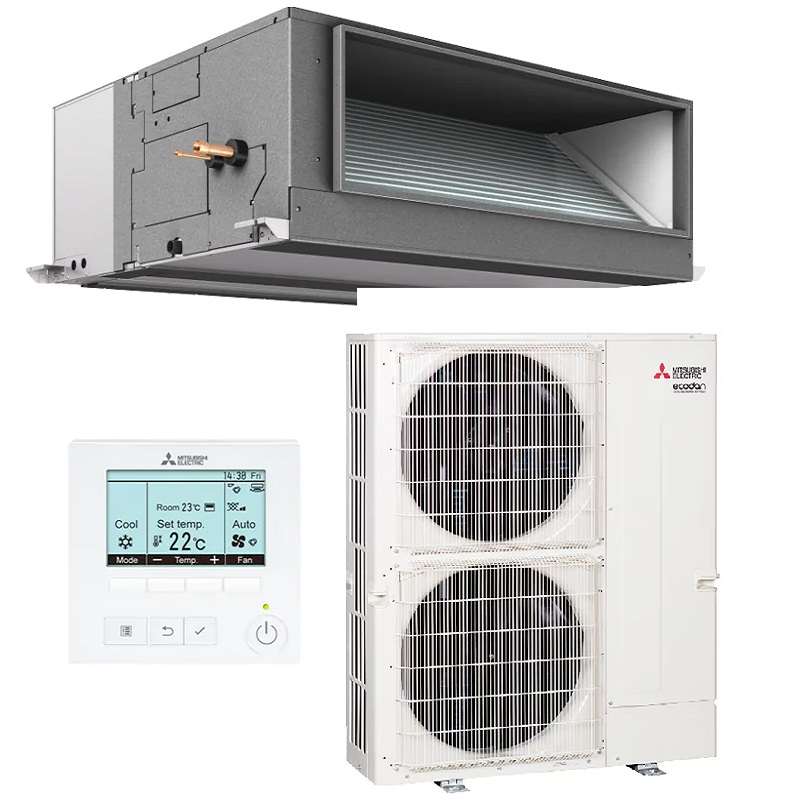

Mitsubishi MSPEZ-M250LYA Ducted Air Conditioner, Three-Phase (380V) R32 Gas

Mitsubishi MSPEZ-M250LYA Ducted Air Conditioner, Three-Phase (380V) R32 Gas

The Mitsubishi Electric range of industrial air conditioners includes the Standard Inverter series. The new MSPEZ-M250LYA model is part of this range and shares the same features. Previous versions of this outdoor unit incorporated the R407C pump, but this has been replaced by the more efficient and environmentally friendly R32 Inverter technology.

This industrial air conditioning solution is designed to be installed in any space; its footprint has been reduced by 70%. This new model features a modified air outlet (now horizontal), and the diameter and distance between the heat exchanger tubes have been reduced, resulting in improved performance and reduced consumption.

Some of the advantages of this unit have a direct impact on installation and maintenance costs, resulting in significant savings. Replace technology allows for the reuse of existing pipes. Its more environmentally friendly refrigerant gas offers high efficiency, and the inverter technology adapts to the ambient temperature, significantly reducing electricity consumption.

In short, this unit, with its quiet operation, automatic restart after a power outage, and the ability to switch between cooling and heating based on the ambient temperature, allows you to enjoy the ideal temperature at all times, without worrying about your air conditioner.

Technical Data Sheet
Refrigerant Capacity: 19,000
SEER: 2.7
SCOP: 3.1
Cooling Capacity: 8,140 W
Heating Capacity: 8,700 W
Sound Level: Moderate
Maximum Pipe Length: 70 cm
Maximum Sound Level Difference: 30 cm
Sound Level (Indoor Unit): 40/46 dB(A)
Sound Level (Outdoor Unit): 59/62 dB(A)
Maximum Power Input: 26.5 A
Refrigerant: R32
Liquid Refrigerant Line Diameter: 12.7 mm (1/2 in)
Gas Refrigerant Line Diameter: 25.4 mm (1 in)
Factory Refrigerant Charge: 7.7 kg
Electrical Wiring: Three-phase
Dimensions (H x W x D): 470 x 1,370 x 1,120 mm
Outdoor unit dimensions (H x W x D): 1,338 x 1,050 x 330 (+40) mm
Indoor unit weight: 87 kg
Outdoor unit weight: 135 kg
