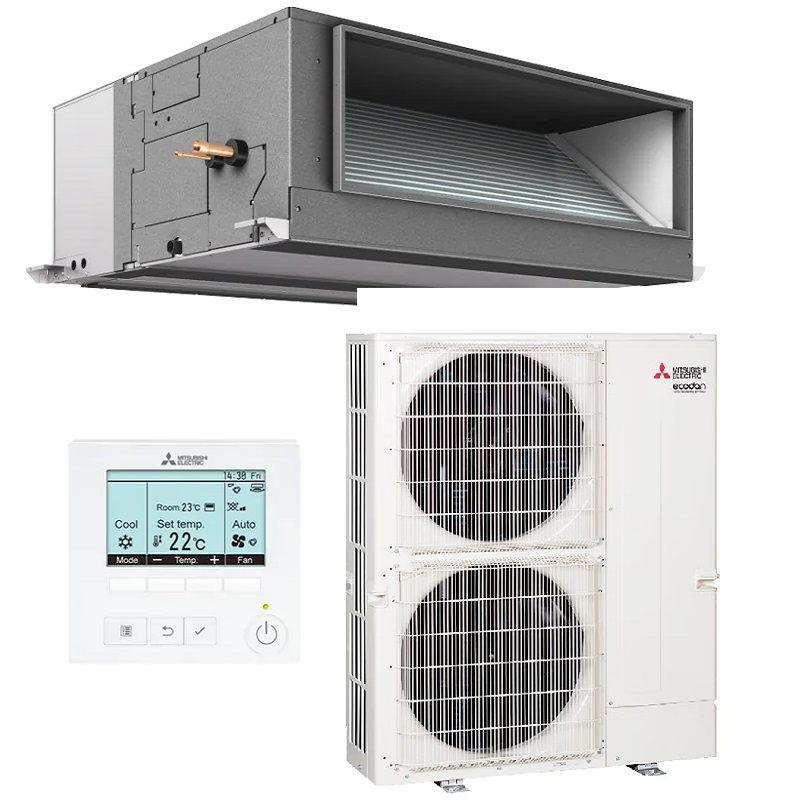

Mitsubishi MSPEZ-M200LYA 20.0 kW Ducted Air Conditioner, Three-Phase (380V), R32 Gas
The Mitsubishi Electric range of industrial air conditioners includes the Standard Inverter series. The new MSPEZ-M200LYA model is part of this range and shares the same features. Previous versions of this outdoor unit incorporated the R407C pump, but this has been replaced by the more efficient and environmentally friendly R32 Inverter technology.
This industrial air conditioning solution is designed to be installed in any space; its footprint has been reduced by 70%. It measures 365 mm in height, 510 mm in depth, and weighs 87 kg. Its cooling capacity is 19 kW and heating capacity is 22.4 kW. The maximum noise level is 51 dB. On this new model, the air outlet has been modified (it is now horizontal), and the diameter and distance between the heat exchanger tubes have been reduced, resulting in better performance and lower consumption.
Some of the advantages of this unit have a direct impact on installation and maintenance costs, resulting in significant savings. Replace technology allows the reuse of existing pipes. Its more environmentally friendly refrigerant gas offers high efficiency, and the inverter technology adapts to the ambient temperature, significantly reducing electricity consumption.
In short, this unit, with its quiet operation, automatic restart after a power outage, and the ability to switch between cooling and heating based on the ambient temperature, allows you to enjoy the ideal temperature at all times, without worrying about your air conditioner.
Specifications of the MSPEZ-M200LYA air conditioner
Nominal cooling capacity (min.-max.) kW: 19 (9.0-22.4)
Nominal heating capacity (min.-max.) kW: 22.4 (9.5-25.0)
Nominal cooling consumption kW: 6.19
Heating consumption kW: 6.71
EER / COP: 3.07 / 3.33
Airflow (L/M/A) m³/min: 42 - 51 - 55
Static pressure Pa: 60 - 75 - 100 - 150 200
Noise level (L/M/A) dB(A): 35 - 40 - 43
Power supply, V/F: 230/1
Airflow m³/min: 140
Noise level (dB) cooling/heating (A): 58 / 60
Refrigerant R32 Precharge kg / GWP / TCO2 eq: 6.5 / 2088 / 13.58
Voltage/Phase - Maximum current V/F - A: 400/3 - 22.2
Liquid/gas pipe diameter mm: 9.52 / 25.4
Maximum vertical/total pipe length m: 30 / 70
Outdoor operating temperature range in cooling °C: -15 ~ +46
Outdoor operating temperature range in heating °C: -20 ~ +21

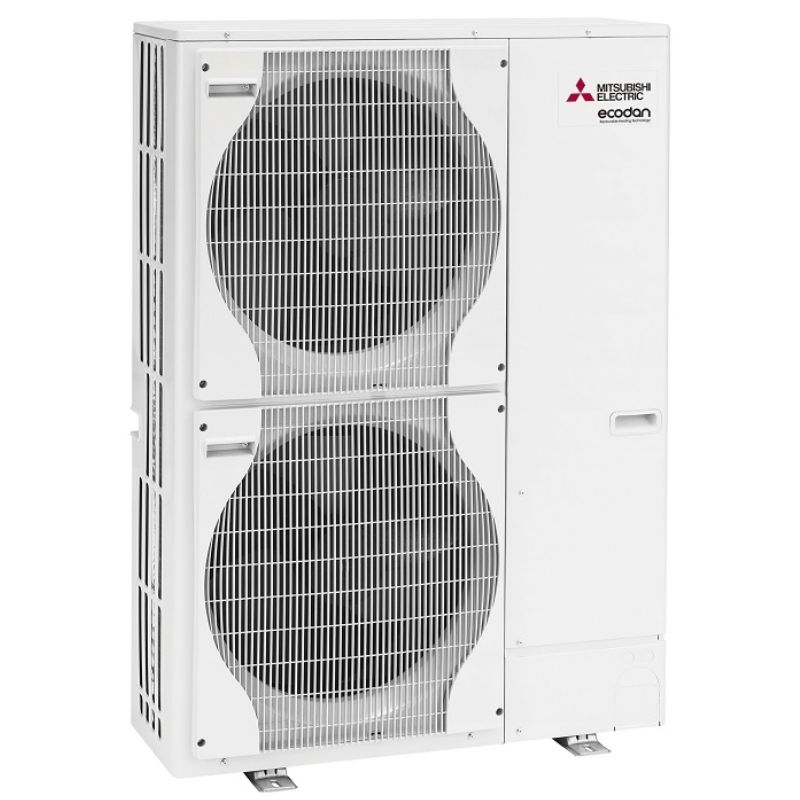

Outdoor unit dimensions (H x W x D): 1,338 x 1,050 x 330 mm (+40)
Weight: 127 kg
Outdoor unit dimensions (H x W x D): 470 x 1370 x 1120mm
Weight: 87 kg
