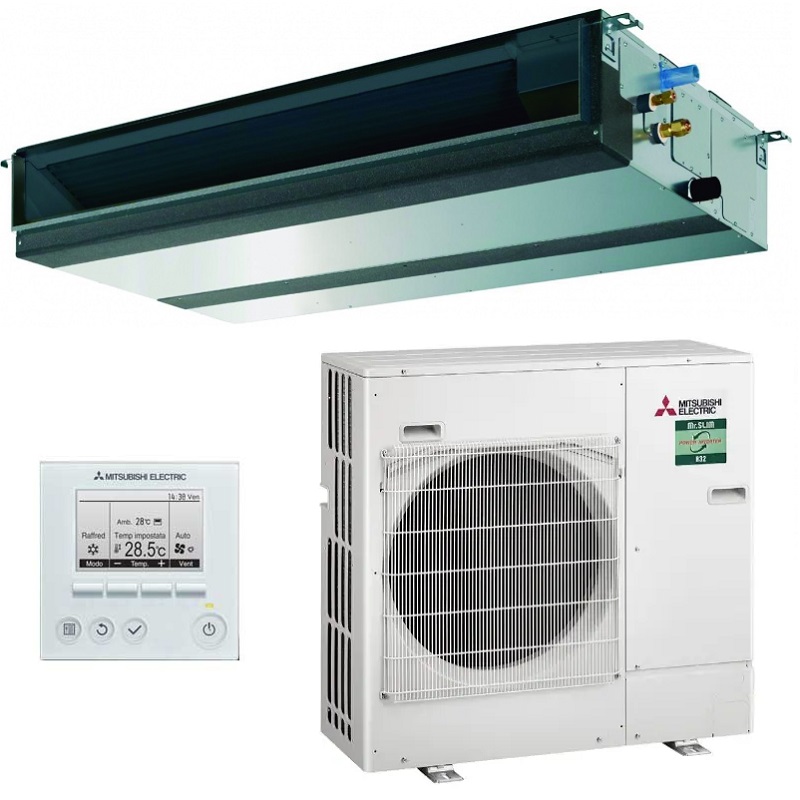

Mitsubishi MGPEZ-100YJA Ducted Air Conditioner, 10.0 kW, Three-phase 380 V

Mitsubishi MGPEZ-100YJA Ducted Air Conditioner, 10.0 kW

The PRO series was designed to offer the most competitive inverter solution, meeting the most fundamental market needs. Featuring the same compact design as the superior Standard Inverter model, while retaining almost all of its features, it is the most competitive solution for all types of residential and commercial applications. Available in single-phase (71/100/125/140) and three-phase (100/125/140) voltages, for 1x1 split units only.

The Power Inverter series is designed to achieve high seasonal energy performance, thanks to the new compressor design and the use of the latest energy-saving technologies, achieving high performance ratings of A+ or A++ in both cooling and heating in most categories.

R32 outdoor units for Power Inverter. The introduction of this new refrigerant gas allows for
maximum cooling distances to be increased to 100 m of total piping.
Improved energy efficiency, up to A++.
Optional motor to achieve 30 Pa static pressure outdoors (100/125/140).
100% of rated heating capacity down to -3°C.

Improved performance (ZRP(ZM)100/125/140)
The new outdoor models (100/125/140) benefit from an average 5% improvement in energy efficiency compared to the previous version. In addition, their weight has been slightly reduced and they are compatible with the "Dual Set Point" function.
The Power Inverter series allows for distances of up to 100 m (100/125/140 models), which, together with the 30 m vertical distance, facilitates installation.

Advanced Energy-Saving Technologies
High-Efficiency Fan and New Grille
The shape of the outdoor unit's fan and grille has been redesigned for better air propulsion and more efficient heat exchange, while maintaining the same noise level.
High-Efficiency Heat Exchanger: 100/125/140
The tube diameter has been reduced from 9.52 to 7.94 mm, allowing the number of coil stacks to be increased from 52 to 64. Combined with a larger heat exchange surface area, this system optimizes heat exchange.

Twin Rotary Compressor (PUHZ-ZRP35/50/60/71)
Efficient rotary compressors using Mitsubishi Electric technology significantly reduce annual energy consumption compared to conventional compressors. DC Scroll Compressor (PUHZ-ZRP(ZM) 100/125/140)
This new compressor is optimized for part-load operation with reduced refrigerant charge loss, resulting in lower annual energy consumption

Description
Cooling capacity: 8170 hours
Heating capacity: 9632 (Kcal/h)
Power: 10.0 kW
Wi-Fi: Optional
Energy class (cooling/heating): A/A
EER/COP: 3.21/3.70
SEER: 5.3 A
SCOP: 3.8 A
Indoor unit sound power: 62 dB(A)
Dimensions: only 250 mm high
Refrigerant gas: R-32
Electric voltage: 3-phase 380 V
Refrigerant connection diameter: 3/8" - 5/8"

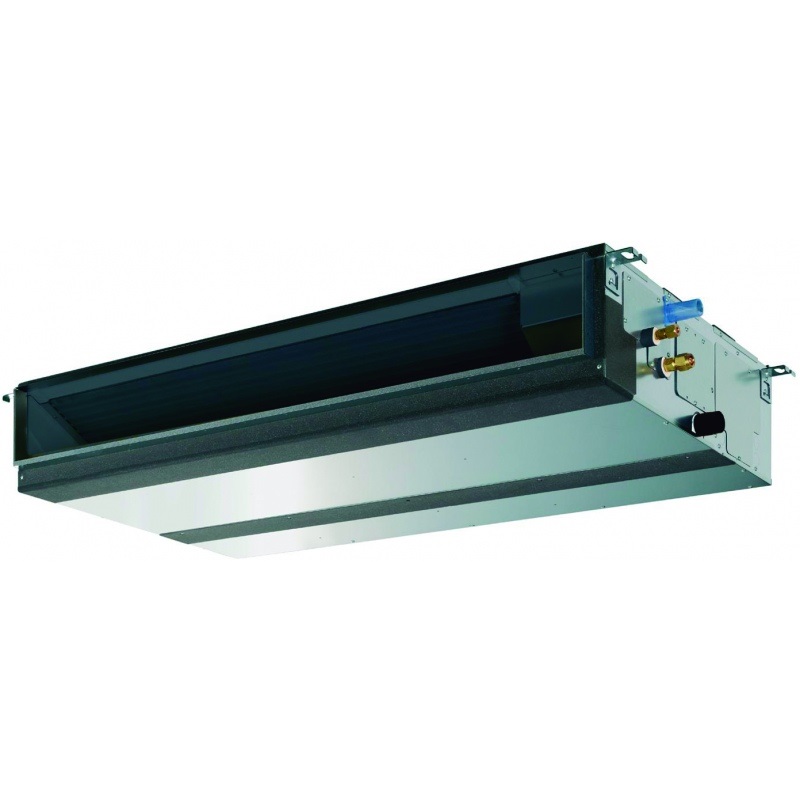

Indoor unit dimensions (H x W x D): 250 x 1400 x 732 mm
Indoor unit weight: 39 kg

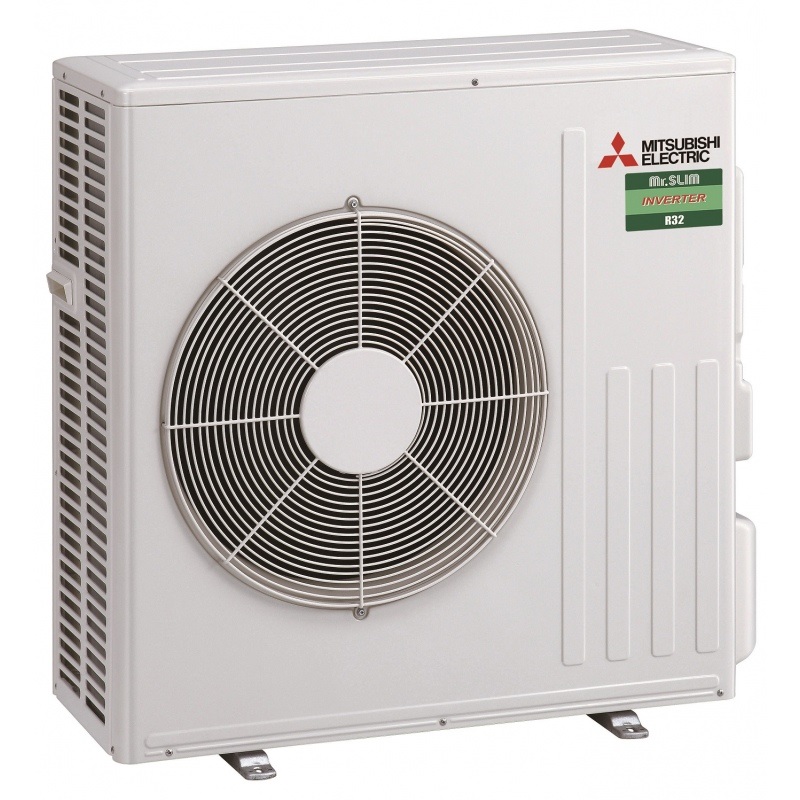

Unit dimensions Outdoor unit (H x W x D): 981 x 1050 x 330 mm
Outdoor unit weight: 78 kg
