Midea MTJ-140(48)N8Q-1 14.0 kW (230 V) R32 Wi-Fi Ducted Air Conditioner Included
This model supports up to 75 meters of ducting and a 30-meter elevation difference, allowing for versatile installation in multi-story buildings or complex facilities. It also comes with a standard remote control for convenient and precise operation.
Robustly designed and built for demanding installations, this system offers optimal comfort, efficiency, and durability in all types of environments.
This is a high-performance air conditioning solution designed for large spaces requiring balanced and efficient air distribution. This system is equipped with Wi-Fi control, allowing you to manage its operation from the Midea app and voice control with Alexa and Google Home (optional accessory required). Its automatic static pressure adjustment and vertical or horizontal installation options make it highly versatile and adaptable to different types of environments.
Description
Cooling capacity: 12.02 kW
Heating capacity: 13.48 kW
Indoor air flow: 1,300 m³/h - 2,000 m³/h
Outdoor air flow: 5,600 m³/h
Outdoor unit sound pressure level: 64.5 dB(A)
Refrigerant: R-32 with an initial charge of 2.90 kg
Refrigerant connections: Ø 3/8” (9.52 mm) / Ø 5/8” (15.88 mm)
Maximum piping length: 75 m with a maximum elevation difference of 30 m
Power supply: 220-240 V / 50 Hz
Energy class: A++ / A
Refrigerant: R-32
Air flow Indoor air flow rate: up to 2,000 m³/h
Indoor sound pressure: 36-39 dB(A)
Maximum static pressure: 160 Pa

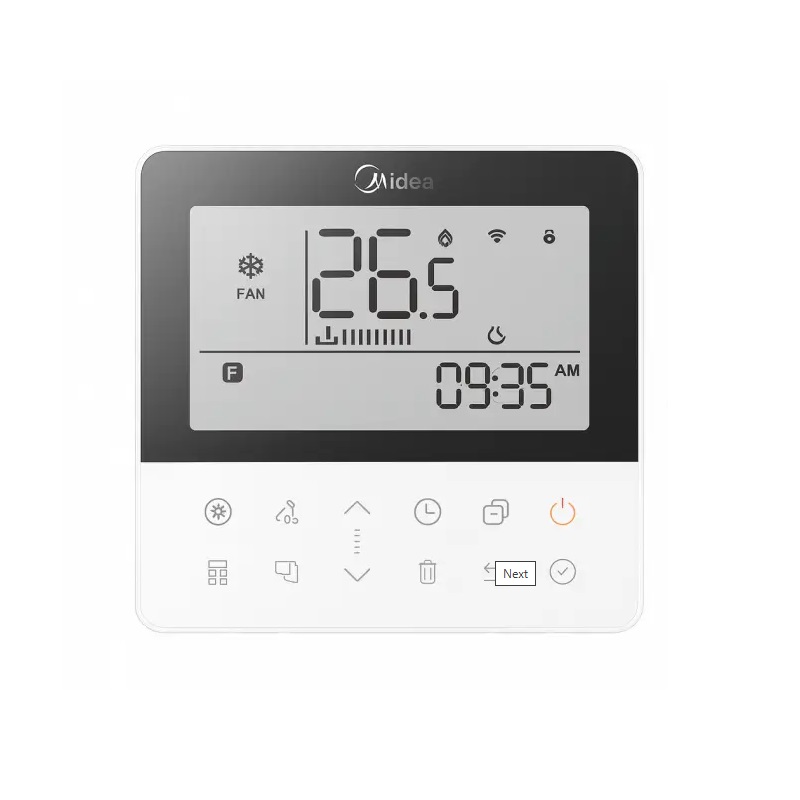

Wall control included
On/off remote control
Voice and app control via Midea
Fresh air intake and integrated condensate pump
Rear or bottom intake
50/60 Hz operation
Energy class: A++/A+
Pre-charged piping length: 5 meters
Maximum total piping length: 75 meters
Maximum vertical piping length: 30 meters
Connections (gas/liquid): 5/8" - 3/8" inches
Indoor unit dimensions: (W x H x D): 1,200 x 245 x 750 mm
Outdoor unit dimensions: (W x H x D): D): 980 x 975 x 375 mm
Indoor unit weight: 38.4 kg
Outdoor unit weight: 80.5 kg
