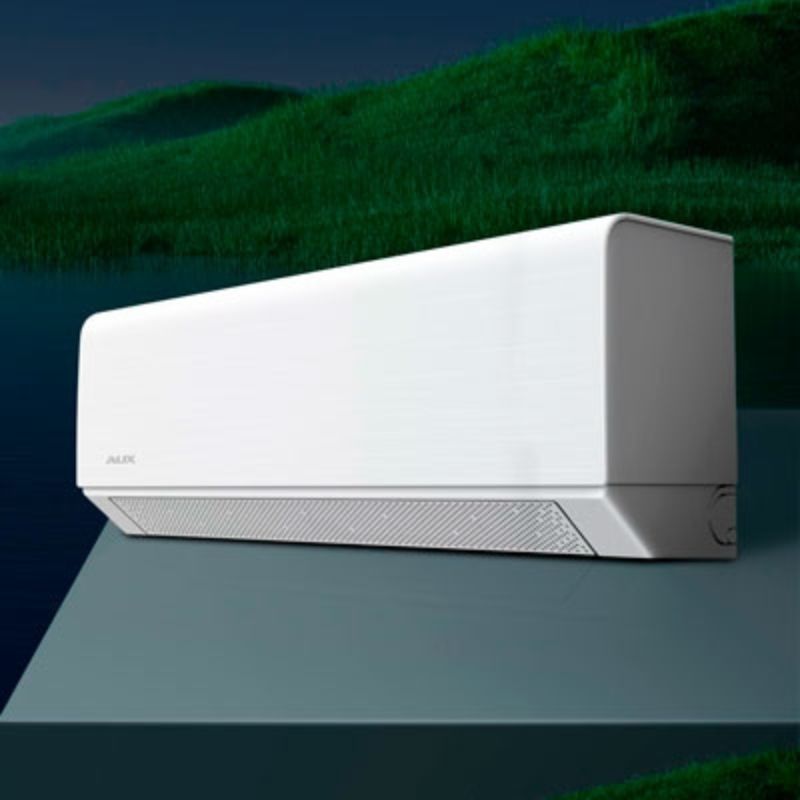

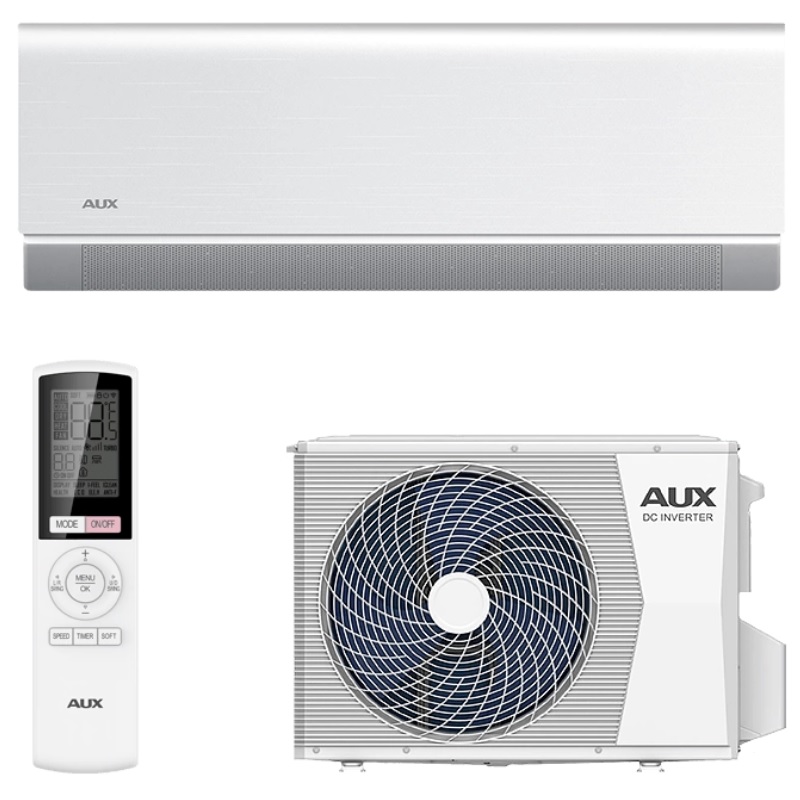

ASW-12-NC 3.5 kW Aux Air Conditioner, White, C Series

ASW-12-NC 3.5 kW Aux Air Conditioner, White, C Series

iClean 57°C: This function automatically cleans the indoor unit. Refrigerant leak detection: The unit automatically detects any refrigerant leaks in the circuit. Cold air prevention: In heating mode, the initial fan speed is adjusted based on the battery temperature. Wi-Fi (optional): Wi-Fi module available. Control your AUX air conditioning from anywhere. BLUE FIN heat exchanger with a treatment that protects the unit from corrosion and the growth of bacteria and mold.

Anti-fungal function: This function prevents the growth of mold and bacteria in the indoor unit. If this function is enabled, the unit will activate anti-mold prevention after operating in cooling and dehumidification modes. Smart defrosting: When the external battery freezes in heating mode, the unit automatically activates defrost mode.

"SOFT"
With a noise level of only 18 dB, it offers near-silent operation.
Breeze Function
The system features 1,935 micropores that distribute cool air evenly and gently, preventing drafts.
Its diffusion rate is higher than that of other manufacturers.

Fully Matte
Matte white indoor unit panel
with fine, filigree grooves that give it a modern touch.
"Breeze" Function
Equipped with a new micro-perforated blade providing a lighter, softer, and more comfortable airflow. Only 18 dB(A).
Emergency Switch
The unit can be connected via the manual button in the event of an alarm.

Self-Diagnosis
In the event of a problem, the unit displays the error or protection code on the indoor unit.

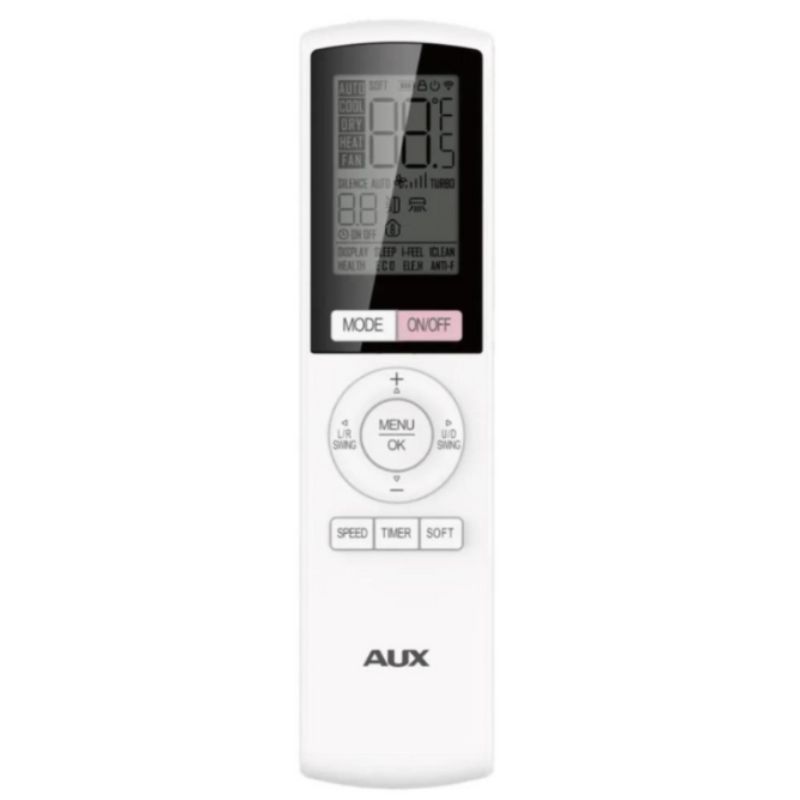

iFEEL
The wireless remote control includes a built-in temperature sensor. This provides better control and optimal comfort over the room temperature.

Turbo
This function minimizes cooling/heating time.
Temperature Range Adjustment
Limits the reference temperature range. Sleep
This function saves energy and improves nighttime comfort.
Low Temperature Heating
Heating down to -10°C outside.
0.3W Standby
The outdoor unit automatically disconnects from the power supply when idle, reducing consumption to only 0.3W.
Auto Restart
The unit automatically recovers its previous settings after a power outage.
Ultra-Quiet Design
The unit has been designed and optimized to minimize noise from the noisiest components.
Low Temperature Cooling
Heating down to -10°C outside.
Timer
The unit can be turned on or off in 24-hour increments.

Cooling Capacity (Min./Nom./Max.): 0.65 / 3.5 / 4.1 kW
Heating Capacity (Min./Nom./Max.): 0.93 / 4.2 / 4.2 kW
Power Consumption - Cooling (Min./Nom./Max.): 0.13 / 0.87 / 1.55 kW
Power Consumption - Heating (Min./Nom./Max.): 0.23 / 1.06 / 1.3 kW
Power (BTU): 12,000 BTU
Seasonal Efficiency SEER (Cooling): 8.8
SCOP: 4.7
Energy Label (Cooling / Heating) - Average Climate: A+++ / A++
Operating Range (Cooling): -15 ~ 46 °C
Operating Range (Heating): -25 ~ 30°C
Warranty: 36 months
Refrigerant: R-32
Power supply (phase/frequency/voltage): 1~/50/220-240
Sound pressure - cooling (high/nominal/low/quiet): 30 / - / - / 20 dB
Sound pressure - heating (high/nominal/low/quiet): 30 / - / - / 20 dB

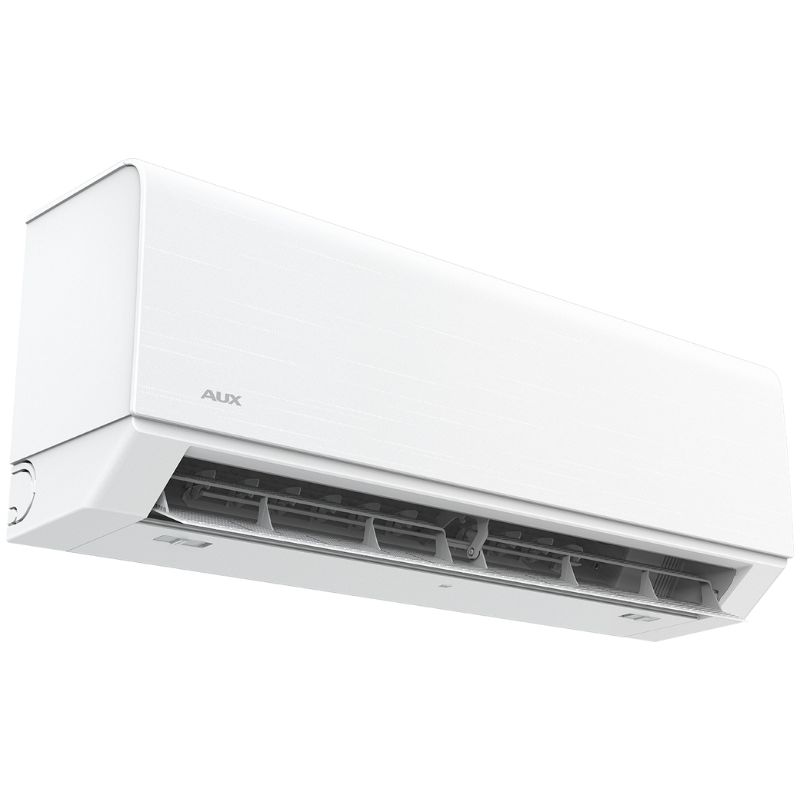

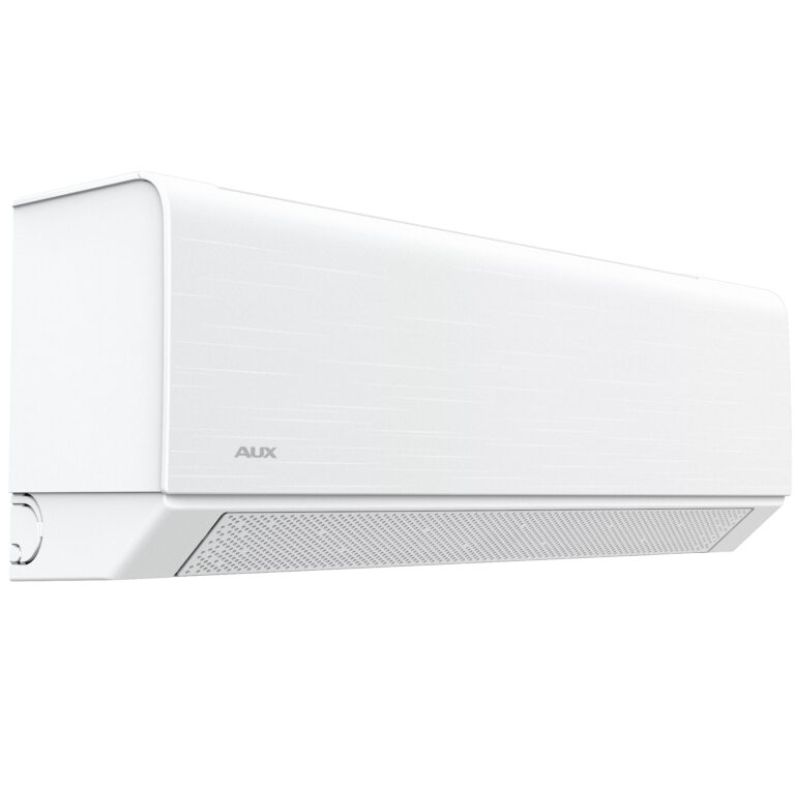

Indoor unit
Dimensions (W x H x D): 834 x 299 x 202 mm
Weight: 8.5 kg

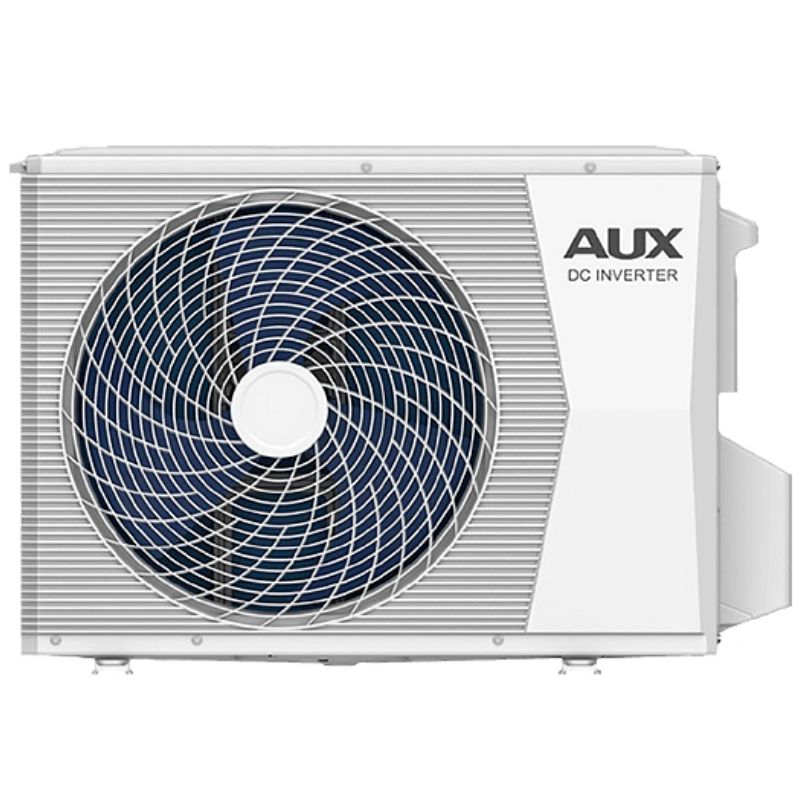

Outdoor unit
Dimensions (W x H x D): 712 x 538 x 309 cm
Weight: 24.5 kg
