TCL Ducted Air Conditioner 3 x 3.5 kW, 1 x 2.5 kW

TCL Ducted Air Conditioner 3 x 3.5 kW, 1 x 2.5 kW

Access card, window switch, fire alarm: When a guest leaves the room and removes the access card, when a window is left open, or in the event of a fire alarm, the air conditioning is programmed to turn off automatically.
Wired controller: Guests can easily adjust the temperature and settings according to their preferences.

BMS: Building Management System, this function allows the integration and control of up to 30 air conditioning units from a single computer.
Inverter technology: Inverter compressor with 30% energy efficiency, rapid cooling or heating (90 seconds for cold or hot air output at full load), and precise temperature control.

Heating and cooling: TCL air-to-air heat pumps are reversible. Whether cooling or heating your home, enjoy an efficient and economical system all year round. Indoor air renewal: The intake of fresh air up to 15% of the room volume renews the atmosphere, providing healthier and more pleasant indoor air.

Ultra-thin design: Compact structure with a duct thickness between 200 and 300 mm depending on the model.
Dual drainage: Drainage is possible on either side and adapts flexibly to the constraints of each installation.

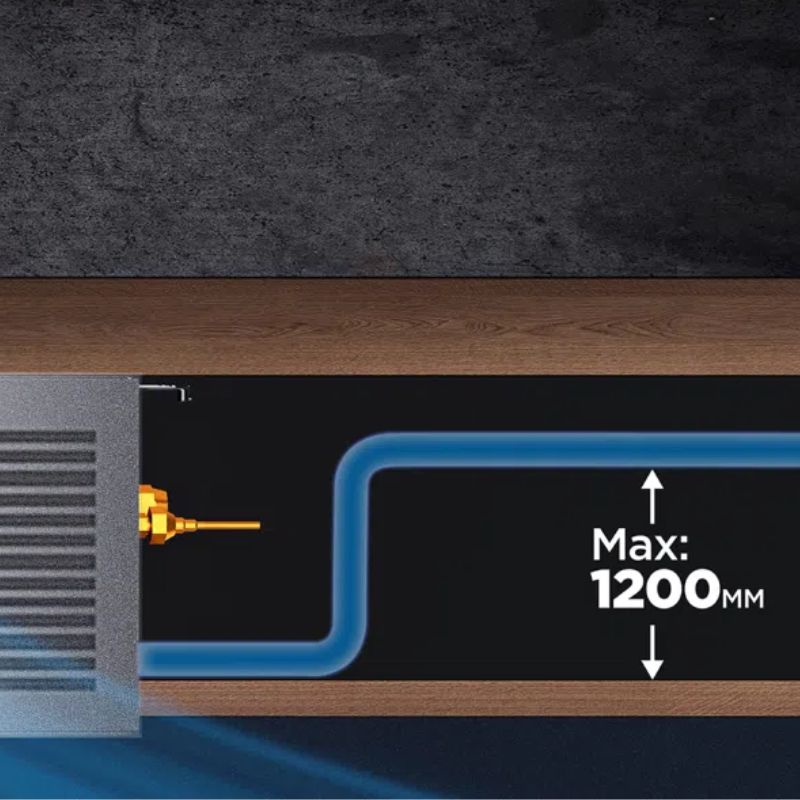

Flexible installation: Flexible return system, both horizontal and vertical, adapts to each installation.

2.5 kW Indoor Unit
Declared Cooling Capacity: 2700 (560~3350) (W)
Declared Heating Capacity: 2800 (560~3380) (W)
Pdesignc: 2700 (W)
Declared SEER: 7 W/W
Energy Class: A++
Average Pdesignh W
Average Declared SCOP: 2300 W/W
Outdoor Cooling Operating Current: 4.0 (1.2~8.0) A
Outdoor Heating Operating Current: 3.1 (1.2~8.0) A
Outdoor Cooling Power Consumption: 660 (150~1600) W
Outdoor Heating Power Consumption: 650 (150~1600) W
Energy Class (Average): A+
Interior Dimensions (W x H x D): 700×200×490 mm
External dimensions (W x H x D): 777×498×290 mm
Panel dimensions (W x H x D): (mm)
Internal weight: 15 kg
External weight: 22 kg
Indoor unit 3.5 kW
Declared cooling capacity: 3520 (600~4000) W
Declared heating capacity: 3560 (600~4100) W
Pdesignc: 3500 W
Declared SEER: 6.5 W/W
Energy class: A++
Average Pdesignh: 2300 W
Average declared SCOP: 4 W/W
Energy class (average): A+
Annual energy consumption in cooling mode: 190 kWh/a
Average annual energy consumption: 851 kWh/a
Moisture removal: 1.7 liters/h
Indoor sound power (S/H/M/L/Silent): 55/52/47/40/37 dB(A)
Indoor sound power (standard rated conditions): 55 dB(A)
Outdoor sound power (standard rated conditions): 62 dB(A)
Power supply: 230 V/50 Hz/1P
Voltage range: 165~265 V
Outdoor cooling operating current: 4.8 (1.3~9.0) (A)
Outdoor heating operating current: 4.1 (1.3~9.0) (A)
Outdoor cooling power consumption: 1052 (160~1660) W
Outdoor heating power consumption: 899 (160~1660) W
Operating temperature range: 16-31 °C
Net dimensions Internal dimensions (W x H x D): 700 x 200 x 490 mm
External net dimensions (W x H x D): 777 x 498 x 290 mm
Internal net weight: 15 kg
External net weight: 22 kg

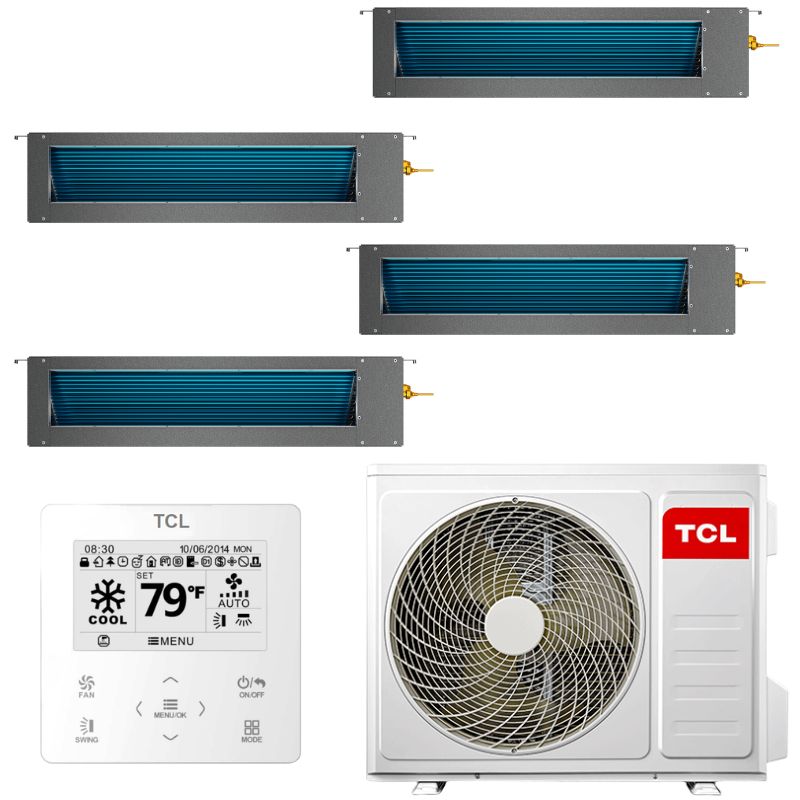

Delivery

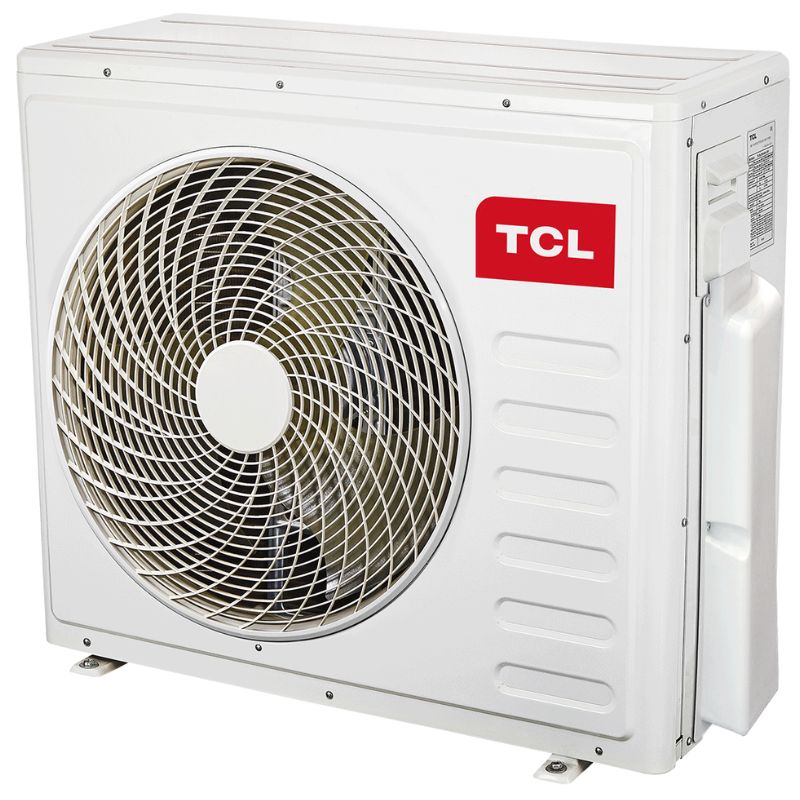

1 outdoor unit
3 indoor units 2.5 kW
1 indoor unit 3.5 kW
Weight of outdoor unit: 47 kg
Weight of indoor units: 8.6 kg
