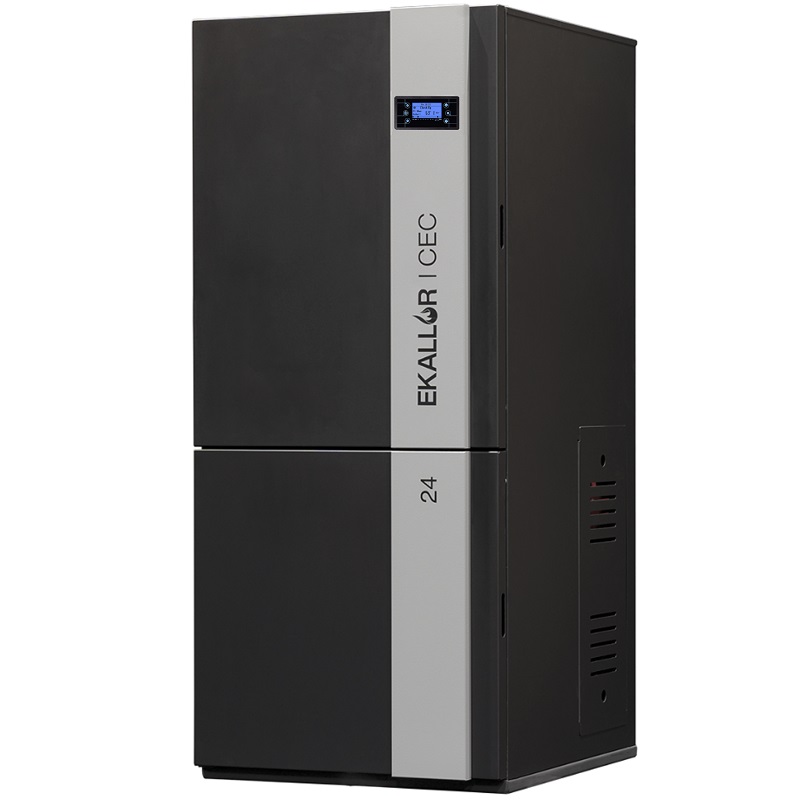

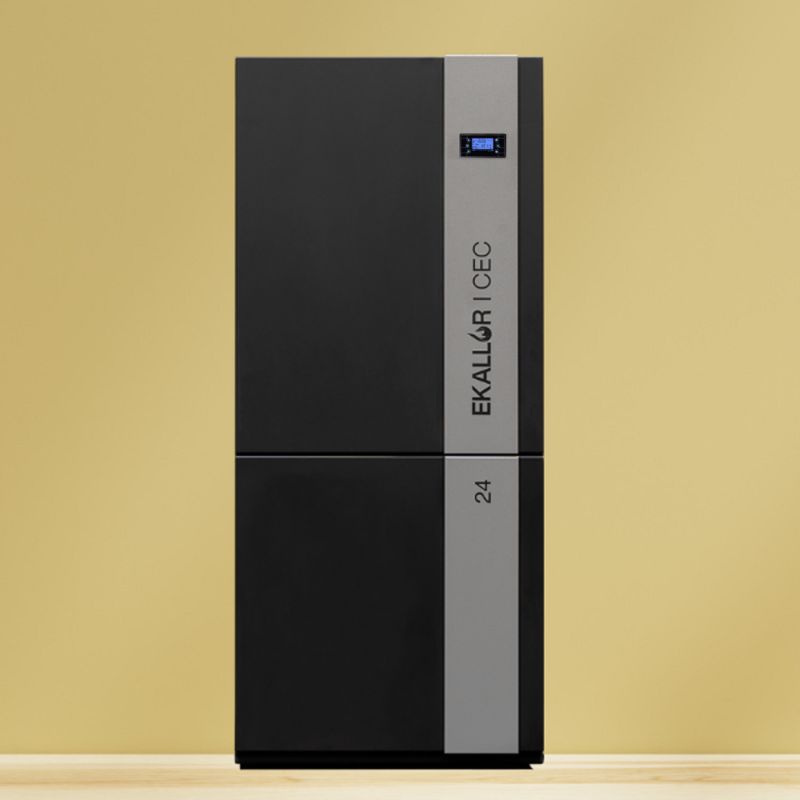

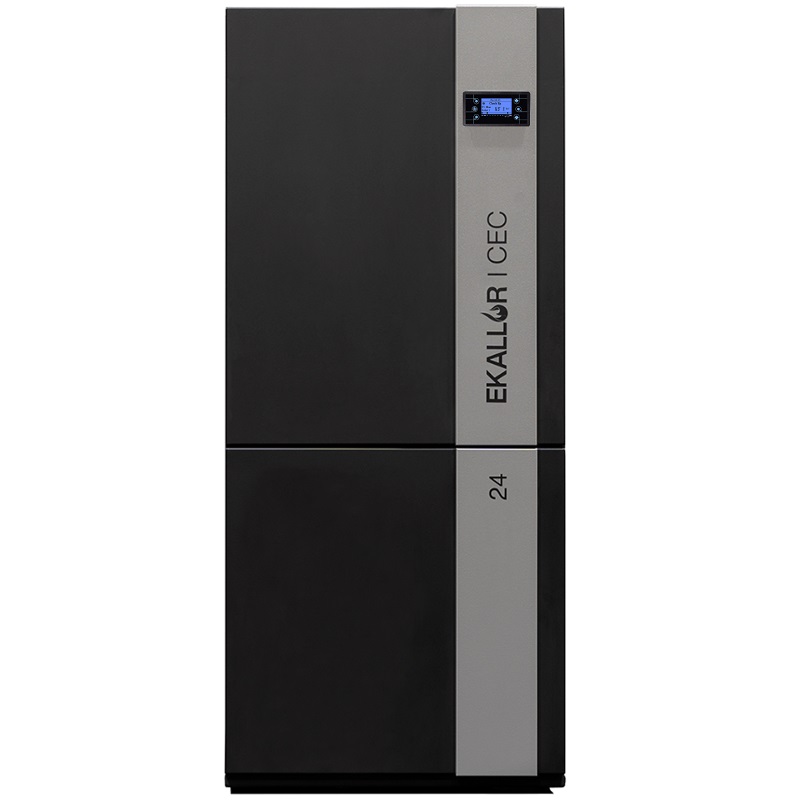

Metlor CEC 24 Pellet Boilers
The CEC24 pellet boiler is ideal for central heating and domestic hot water production. It stands out for its low consumption and large tank capacity, offering excellent autonomy and a good pellet loading capacity.
Equipped with a Tiemme regulator, a ceramic heating element, an 8-liter expansion tank, a Wilo circulation pump, a 3 kg pressure valve, a Tiemme 90° safety thermometer, a Mellor gear motor, an Emmevi fume extractor, and the option to install a thermostat and room timer.
It produces domestic hot water in both summer and winter using a water heater. Easy to program and clean, it is quiet.
Electrical equipment monitoring with error messages
Automatic combustion control based on ambient temperature
Includes a hydraulic kit, a circulation pump, an expansion tank, and a temperature valve. Advanced electronic control with touchscreen
With automatic ignition
Daily or weekly programming
Clock for automatic operation
Description
Nominal power: 25.14 kW
Efficiency: 94.6%
Boiler volume: 48 liters
Maximum water temperature: 90°C
Operating pressure: 0.5-2.0 bar
Fuel temperature: 120°C
NOx, VOCs, particles: 108, 4, 12 mg/m3
CO(%) (13% O2): 0.010
Power consumption: 350/60 W/Hz
Pellet hopper capacity: 100 kg
Flue outlet: Ø 80 mm
Operating manual
Technical data sheet
Energy label
Declaration of conformity: (DOC)
Dimensions (H x W x D): 1395 x 566 x 787 mm
Weight: 220kg
