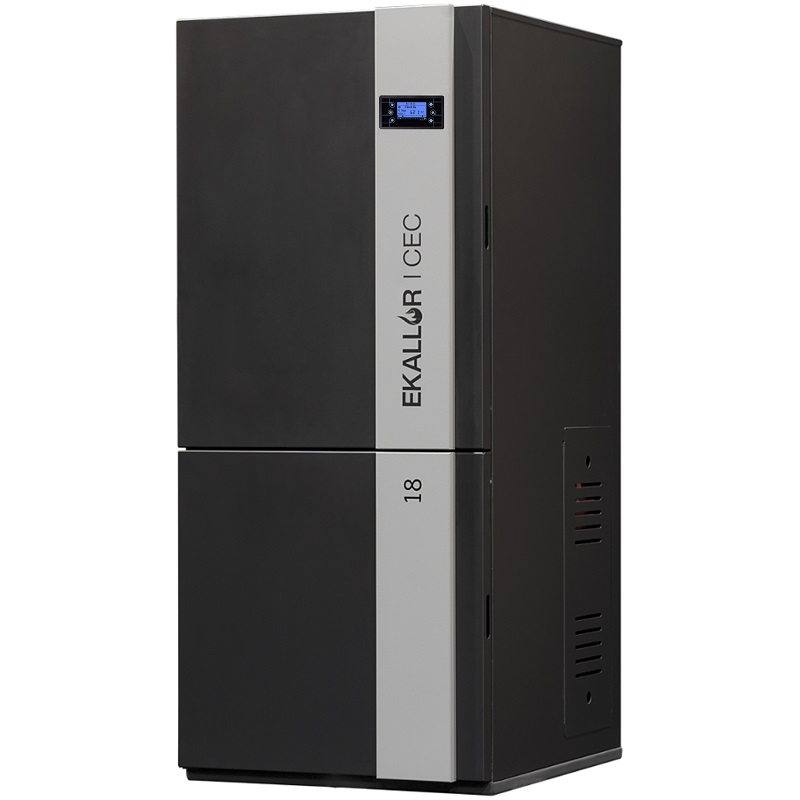

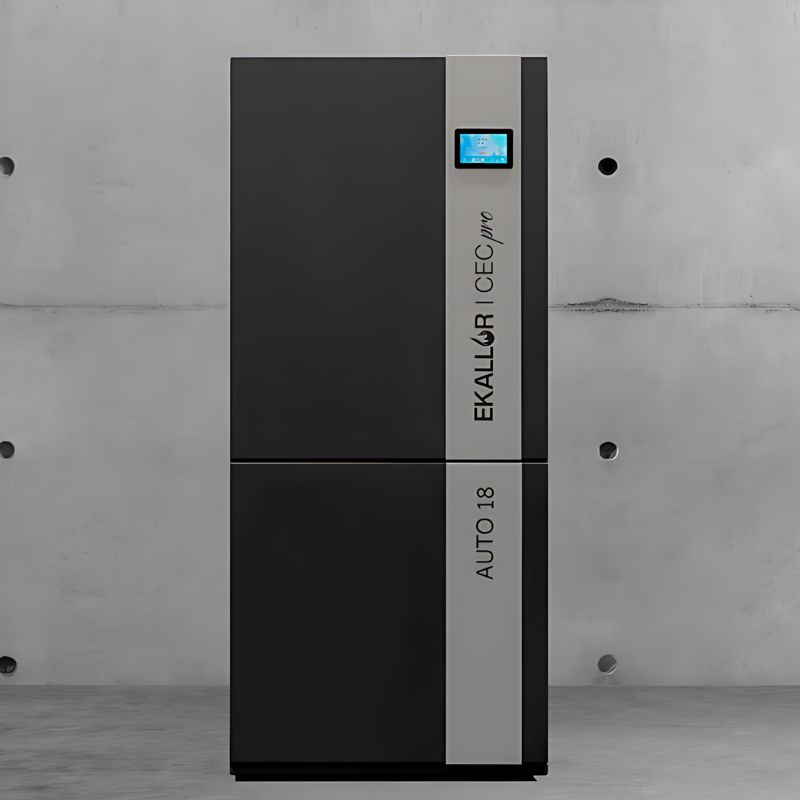

Metlor CEC 18 Pellet Boilers
Electrical equipment monitoring with error messages
Automatic combustion control based on ambient temperature
Includes a hydraulic kit, circulation pump, expansion tank, and temperature valve.
Latest-generation electronic control with touchscreen
With automatic ignition
Daily or weekly programming
Clock for automatic operation
Description
Nominal power: 18.82 kW
Efficiency: 95%
Boiler volume: 48 liters
Maximum water temperature: 90°C
Operating pressure: 0.5-2.0 bar
Fuel temperature: 131°C
NOx, VOCs, Particulates: 104, 5, 12 mg/m³
CO(%) (13% O²): 0.009
Power consumption: 350/60 W/Hz
Pellet hopper capacity: 100 kg
Flue outlet: Ø 80 mm
User manual
Technical data sheet
Energy label
Declaration of conformity: (DOC)
Dimensions (H x W x D): W x D): 1395 x 566 x 787 mm
Weight: 220 kg
