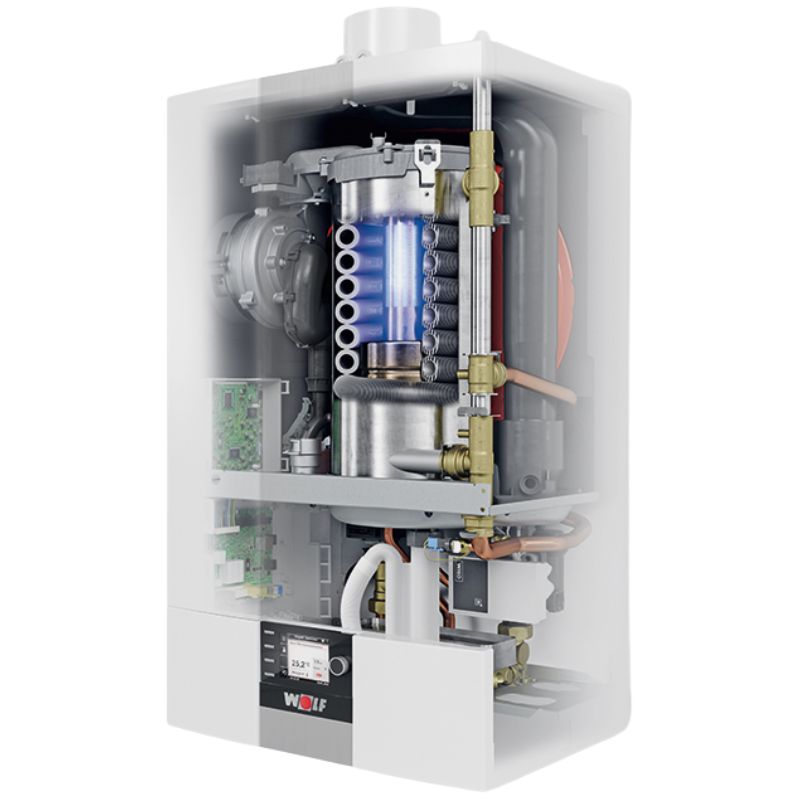

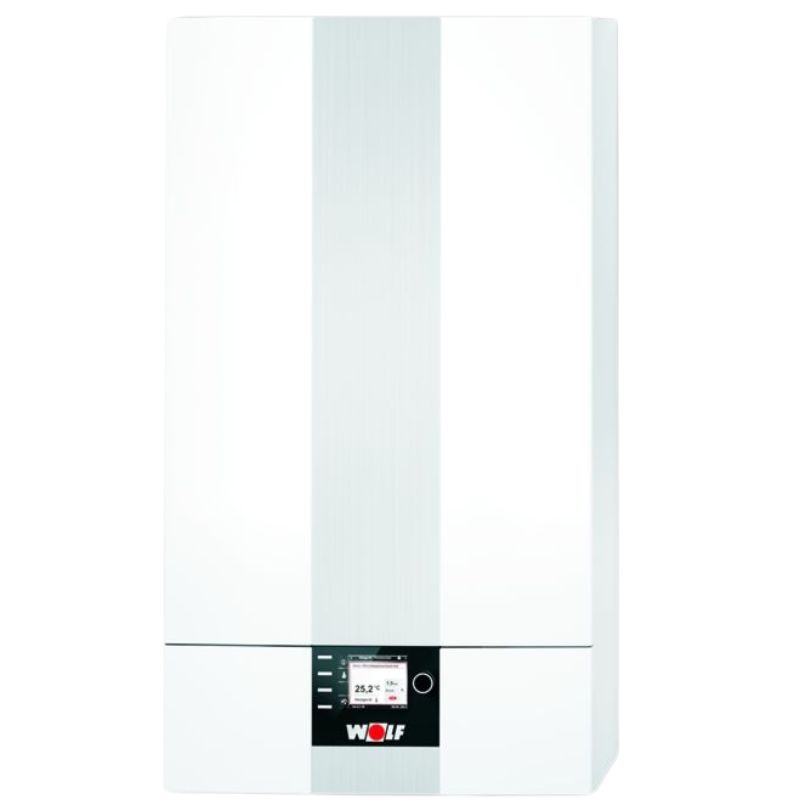

Wolf CGB-2K 24 Natural/Butane Gas Condenser Boiler 23.8/27.1 kW (Heating/DHW)

Write a review
Wolf
List price: 2,702.00 €
1,999.99 €
You save: 702.01 € (26%)
Save 26%
Hemmera 1 Ask a question
HE-ATR-114
In stock
+ −
Wolf CGB-2K 24 Natural/Butane Gas Condenser Boiler 23.8/27.1 kW (Heating/DHW)

Wall-mounted combination boiler, Natural/Butane gas
Heat exchanger material: Aluminum
Closed finish: Yes
Open and closed finish: No
Nominal output 50-30 °C: 25.8 kW
Nominal output 80-60 °C: 23.8 kW
On/Off control signal: Yes
OpenTherm control signal: No
Modulated burner control: No
Maximum inlet water temperature (operating temperature): 75°C
Minimum fallback temperature: 0°C
Minimum working pressure: 0.8 bar
Maximum working pressure: 3 bar
Maximum upstream gas pressure: 30 mbar
Minimum upstream gas pressure: 18 mbar
Side resistance Water at dT 20 °C: 0 kPa
Available hot water quantity at 60 °C: 13 l/min
Rated voltage: 0 V
Integrated distribution/filling valve: Yes
Integrated pump switch: No
Integrated pressure gauge: Yes
Integrated ambient regulator: No
Integrated expansion tank: Yes
Integrated pressure relief valve: No
Feed connection: Tapered male gas thread: (BSPT)
Nominal inlet diameter: 3/4 inch: (20)
Return connection: Tapered male gas thread: (BSPT)
Nominal return diameter: 3/4 inch: (20)
Fuel connection: Tapered male gas thread: (BSPT)
Nominal fuel internal diameter: 1/2 inch: (15)
Air duct connection: Duct end
Nominal duct diameter, air duct: 100 mm
Flue gas outlet connection: End cap Insertion
Nominal flue diameter: 60mm
Cold drinking water connection: Male tapered gas thread (BSPT)
Nominal diameter, 3/4 inch cold drinking water: (20)
Hot water connection: Male tapered gas thread (BSPT)
Nominal diameter, hot water connection: 3/4 inch (20)
Condensate connection: Flexible
1/8 inch condensate thread diameter: (6)
Outer tube diameter, condensate: 20mm
Capacity profile: XL
Includes
Flue outlet kit
Installation kit
Dimensions: L. 44 cm x W. 37.8 H. x 79 cm
