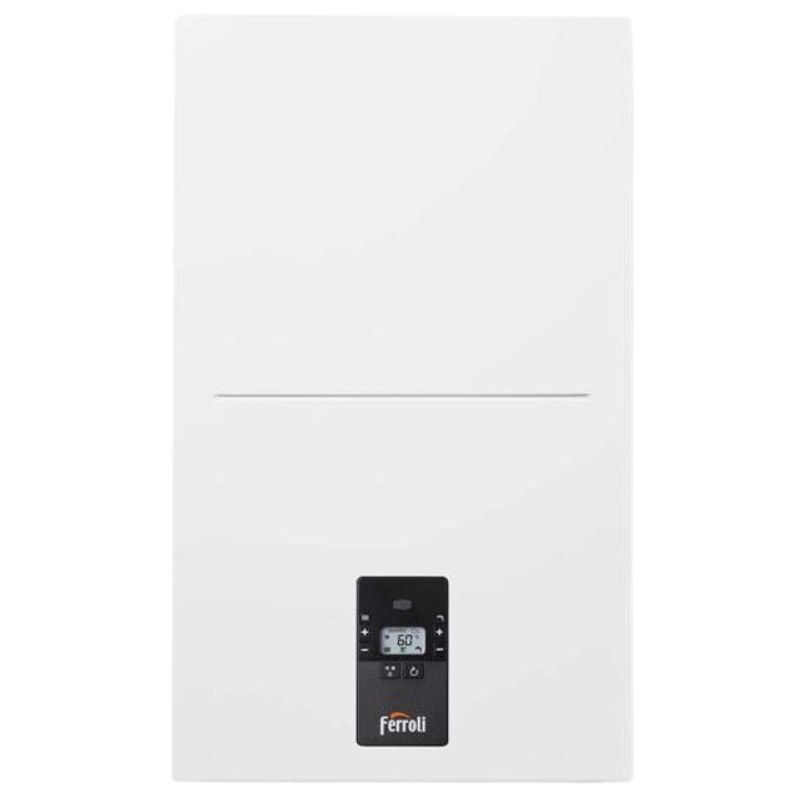

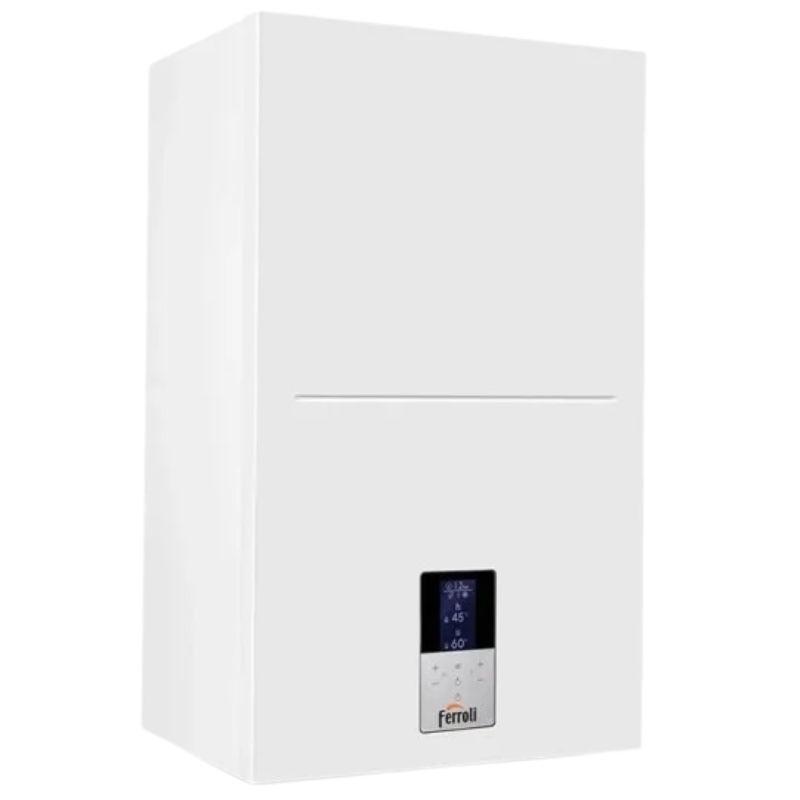

Ferroli BLUEHELIX HITECH 34C B/W Condensing Boiler, 30.0 / 34.0 kW

Ferroli BLUEHELIX HITECH 34C B/W Condensing Boiler, 30.0 / 34.0 kW

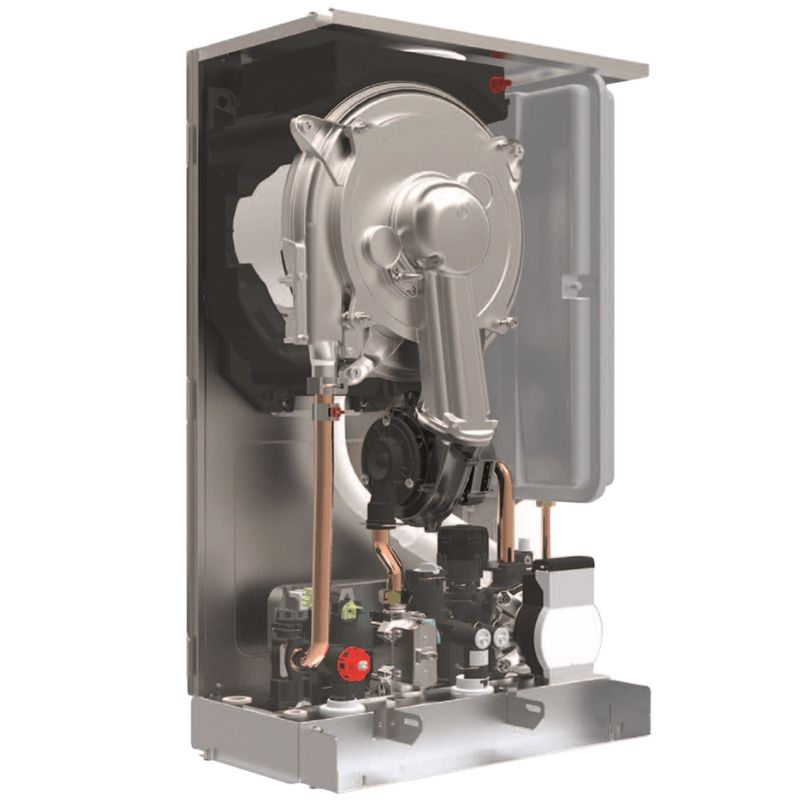

Its main heat exchanger is made of thick, reinforced stainless steel, with a self-cooling door and enlarged passages to ensure durability and reduced maintenance. It maintains its high efficiency even in older, rusty, and dirty installations.

Compliant with the ErP regulation of September 26, 2018 (NOx emissions < 56 mg/kWh), it is NOx class 6. It offers a wide modulation range of 1:10.
Its plug-in hydrogen system self-regulates to operate with gas and hydrogen blends, which will soon be available in Europe to combat global warming.
The M.G.R (Methane LPG Ready) boiler, thanks to its simple configuration, can operate on natural gas and LPG without the need for additional conversion kits.

It is equipped with a single plate heat exchanger for instantaneous domestic hot water production. The hydraulic inlets are covered by the boiler casing.
The burner can be removed by loosening just three screws, thus exposing the stainless steel heat exchanger.
It is equipped with a domestic hot water inlet filter that can be easily removed without having to disassemble the boiler's hydraulic connections.

Smoke Protection System (SPS): The standard smoke damper facilitates connection to pressurized chimney systems. It also features digital flame control with three ignition attempts in the event of a shutdown due to flame failure (natural gas operation only).
The thermobalance allows it to operate at near-maximum efficiency, even in the event of partial obstruction.

Technical Specifications
ErP Class (Class G - A++) A
Maximum/minimum heating output: 30.6/3.5 kW
Maximum/minimum heating output: (80/60°C): 30.0/3.4 kW
Maximum/minimum heating power (50/30°C): 32.5/3.8 kW
Maximum domestic hot water heating power (Hi): 34.7 kW
Minimum domestic hot water power (Hi): 3.5 kW
Maximum/minimum heating power Domestic hot water heating output: 34/3.4 kW
Performance Pmax (80-60°C): 97.9% (high)
Performance Pmin (80-60°C): 98.0% (high)
Performance Pmax (50-30°C): 106.1% (high)
Performance Pmin (50-30°C): 107.5% (high)
Performance: 109.7%
Gas supply pressure G20: 20 mbar
Maximum gas flow rate G20: 3.67 m³/h
Minimum gas flow rate G20: 0.37 m³/h
Maximum CO2/min 9.4/9.2: G20%
Gas supply pressure G31: 37 mbar
Maximum gas flow rate G31: 2.70/0.27 KH/h
Maximum CO2 G31/min 10.3/10.0%: G31
NOx emission class: 6 (EN 15502-1)
Maximum heating operating pressure: 3 bar
Minimum heating operating pressure: 0.8 bar
Maximum heating temperature: 95°C
Heating water capacity: 4.3 liters
Expansion vessel capacity: 10 liters
Heating expansion vessel precharge pressure: 0.8 bar
Maximum domestic hot water operating pressure: 9 bar
Minimum domestic hot water operating pressure: 0.3 bar
DHW flow rate at 25°C: 19.5 l/min
DHW flow rate at 30°C: 16.2 l/min
Protection class: X4D (IEC 60529) IP
Supply voltage: 230 V/50 Hz
Heating power consumption: 80 W
Domestic hot water power consumption: 99 W
Empty weight: 32 kg
