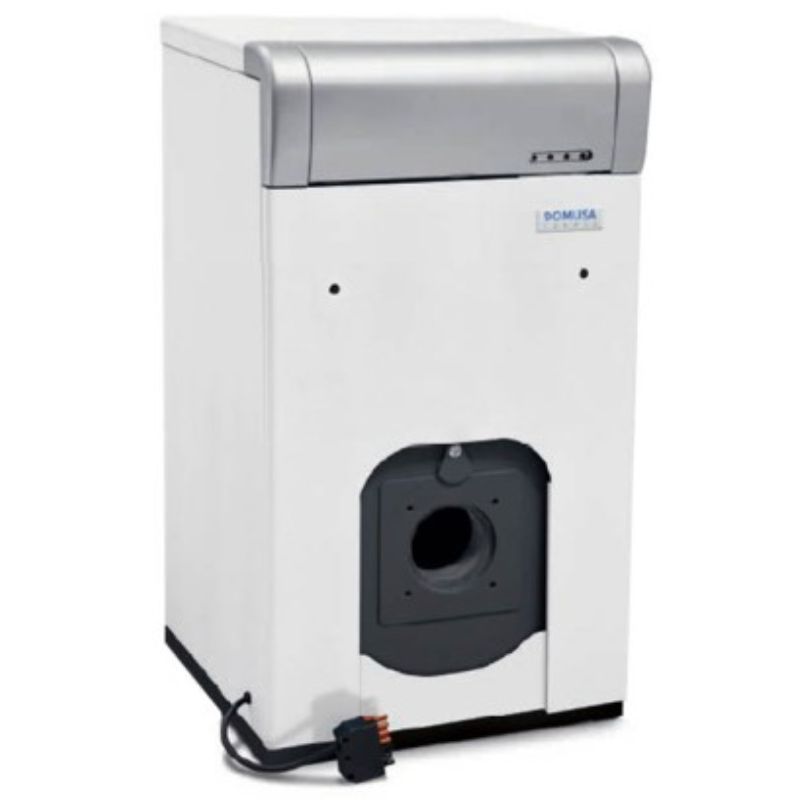

DOMUSA Jaka HFD 60 60.7 kW Boiler, Heating Only
Oil-fired boiler for heating only, these boilers can be used with an external buffer tank for domestic hot water. The body is made of cast iron. The output is 60.7 kW. The hydraulic kit and burner are not included; a hydraulic kit is required for operation.
Jaka boilers are generally purchased as replacements for existing boilers, allowing the use of parts in good condition, such as the burner or hydraulic unit.
The front panel includes a safety thermostat, a heating control thermostat, a thermometer, a pressure gauge, a main selector switch, summer and winter warning lights, a thermal safety indicator light, a burner safety indicator light, and a slot for an optional control box. This control box allows the system temperature to be regulated according to the needs of the home and the building's outdoor temperature.
Description
Epoxy-coated casings
Boiler type: Low-temperature heating only
Nominal output: 60 kW
Useful output: 60.7 kW
Nitrogen oxide (NOx) emissions: 110 mg/kWh
Heating temperature control: 60/85 °C
Maximum safety temperature: 110 °C
Maximum operating pressure: 3 bar
Heating water volume: 28.2 liters
Water pressure drop: 327 mbar
Flue temperature: 200 °C
Flue side volume: 0.029 m³
Maximum flue gas flow rate: 0.0299 kg/s
Flue gas pressure drop: 0.22 mbar
Combustion chamber length: 600 mm
Combustion chamber type: Wet with three Flue gas passages
Power supply: On/Off
Power supply: 220-230 V/50 Hz/200 W
Options

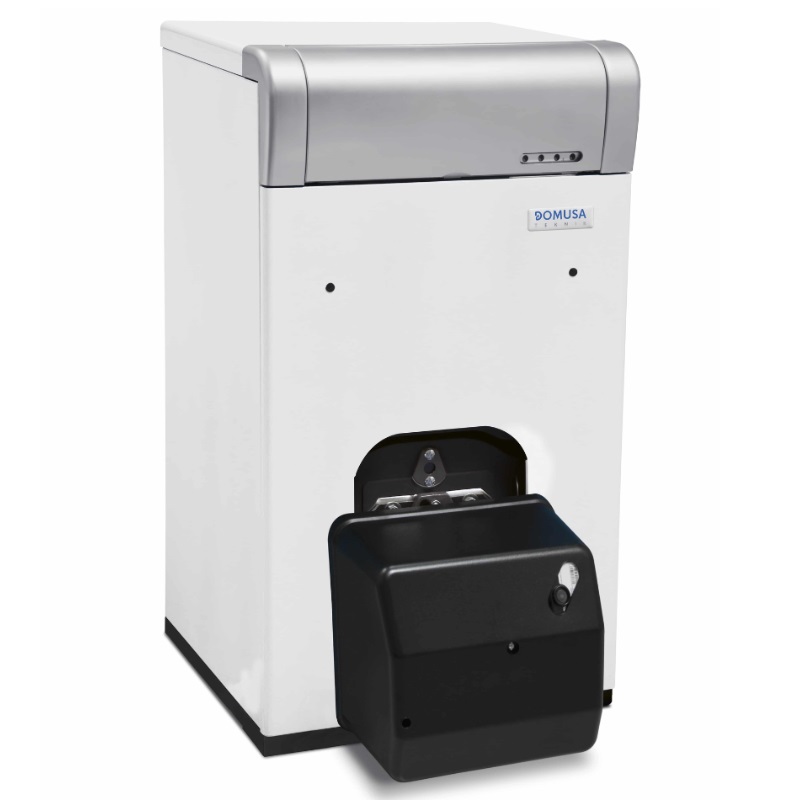

Recommended domestic burner D6 LN
SRJ1 hydraulic kit (underfloor heating)
Analog daily programmer
Radiator hood
SANIT accumulator
Dimensions
Height: 845 mm
Width: 455 mm
Depth: 685 mm
Weight: 139 kg
Oil-fired boiler for heating only, these boilers can be used with an external buffer tank for domestic hot water. The body is made of cast iron. The output is 60.7 kW. The hydraulic kit and burner are not included; a hydraulic kit is required for operation.
Jaka boilers are generally purchased as replacements for existing boilers, allowing the use of parts in good condition, such as the burner or hydraulic unit.
The front panel includes a safety thermostat, a heating control thermostat, a thermometer, a pressure gauge, a main selector switch, summer and winter warning lights, a thermal safety indicator light, a burner safety indicator light, and a slot for an optional control box. This control box allows the system temperature to be regulated according to the needs of the home and the building's outdoor temperature.
Description
Epoxy-coated casings
Boiler type: Low-temperature heating only
Nominal output: 60 kW
Useful output: 60.7 kW
Nitrogen oxide (NOx) emissions: 110 mg/kWh
Heating temperature control: 60/85 °C
Maximum safety temperature: 110 °C
Maximum operating pressure: 3 bar
Heating water volume: 28.2 liters
Water pressure drop: 327 mbar
Flue temperature: 200 °C
Flue side volume: 0.029 m³
Maximum flue gas flow rate: 0.0299 kg/s
Flue gas pressure drop: 0.22 mbar
Combustion chamber length: 600 mm
Combustion chamber type: Wet with three Flue gas passages
Power supply: On/Off
Power supply: 220-230 V/50 Hz/200 W
Options
Recommended domestic burner D6 LN
SRJ1 hydraulic kit (underfloor heating)
Analog daily programmer
Radiator hood
SANIT accumulator
Dimensions
Height: 845 mm
Width: 455 mm
Depth: 685 mm
Weight: 139 kg
