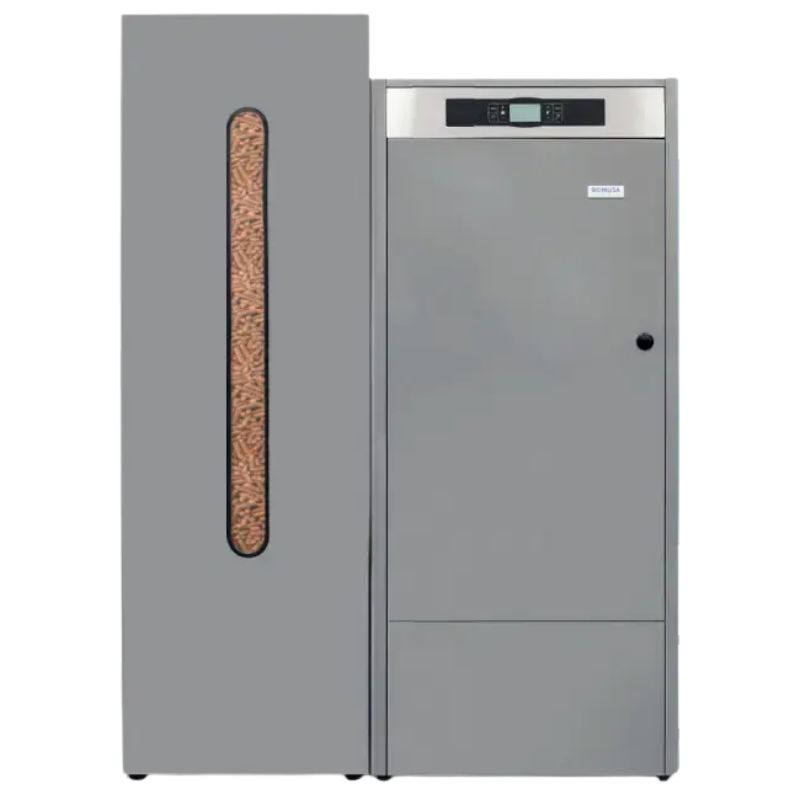

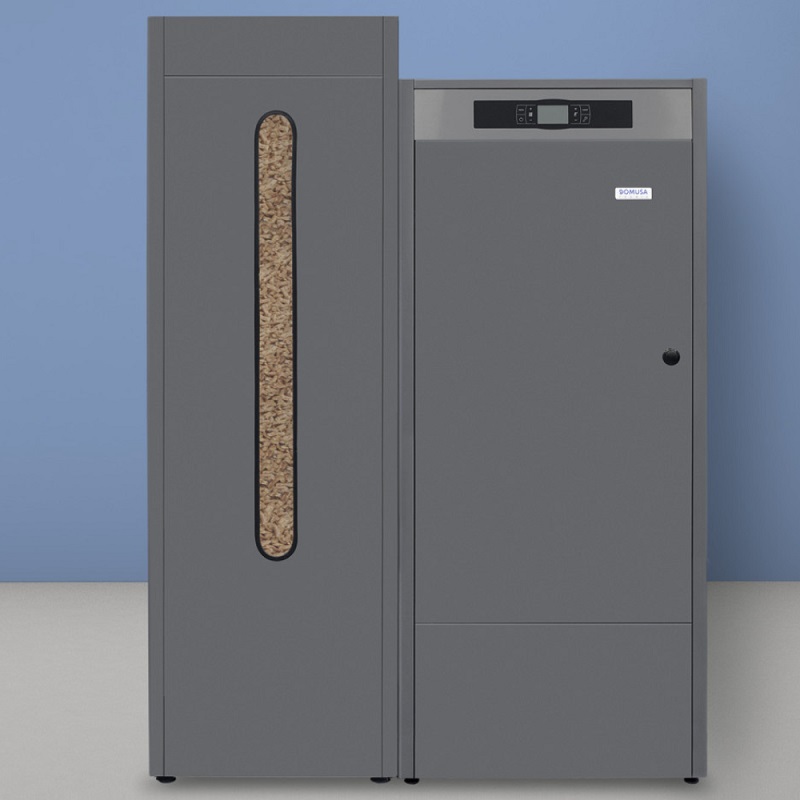

Domasu BIOCLASS IC25 Pellet Boiler 25.0 kW

Domasu BIOCLASS IC25 Pellet Boiler 25.0 kW

The DOMUSA BIOCLASS IC boiler can be managed remotely via an internet application if a Wi-Fi network is available. The BIOCLASS iConnect range features an intelligent combustion control system called FLAME LOGIC, which ensures optimal combustion at all times, even when changing pellet types, without any intervention from the owner. This boiler range features an automatic ash removal and flue gas cleaning system, providing ease of use and high reliability. The burner technology controls ash and unburned matter for durability and minimal maintenance.

The BIOCLASS IC boiler features a special heating element that absorbs the temperature of the flue gases and returns it to the primary circuit, offering an efficiency of up to 95.5% thanks to the significant reduction in flue gas temperature. The BIOCLASS IC boiler features an ergonomic touch control that automatically optimizes the air/fuel mixture to achieve the desired temperature in the heating element, ensuring perfect combustion even at low power. The ability to regulate power according to the system's needs allows for significant savings throughout the year. Furthermore, the option to pair the boiler with a hydraulic control module that takes into account the outside temperature also contributes to these savings.

Features
Change hot water and heating temperatures
Program machine operating hours
iConnect connectivity
Wi-Fi available
Efficiency
Easy installation
Automatic cleaning
Nominal heating power: 25.3 kW
Efficiency at maximum power: 93.1%
Minimum useful power: 7.6 kW
Efficiency at minimum power: 93.2%
Maximum operating pressure: 3 bar
Maximum operating temperature: 80°C
Maximum safety temperature: 110°C
Water capacity: 73 gallons
Power supply: 230 V~ | 50 Hz | 2.50A
Energy Efficiency Index (EEI): 120
Nominal heat capacity: 25.3 kW
Maximum yield: 93.1%
Minimum useful power: 7.6 kW
Minimum yield: 93.2%
Maximum operating pressure: 3 bar
Max temperature operating temperature: 80ºC
Max temperature safety: 110ºC
Water content: 73 liters
Power supply: 230 V~ | 50Hz | 2.50 A
Energy Efficiency Index - EEI: 120
Dimensions
Boiler
Height: 1310 mm
Width: 545 mm
Depth: 755 mm
Pellet Bin
Height: 1590 mm
Width: 404 mm
Depth: 920 mm
Weight (net): 225 kg
