Domasu BIOCLASS IC 25 DX Pellet Boiler, 25.0 kW
BIOCLASS IC DX pellet boilers are equipped with the intelligent "FLAME LOGIC" combustion control system, which continuously analyzes flame quality and air flow to ensure optimal combustion of biomass pellets.
Thanks to the high-quality materials used in the construction of BIOCLASS pellet boilers, the boiler body is guaranteed for 5 years and the hydraulic and control components for 2 years.
The fully automatic heat exchanger and burner cleaning system offers optimal comfort. This system is specially designed to treat ash and unburned debris, ensuring durability and minimal maintenance.

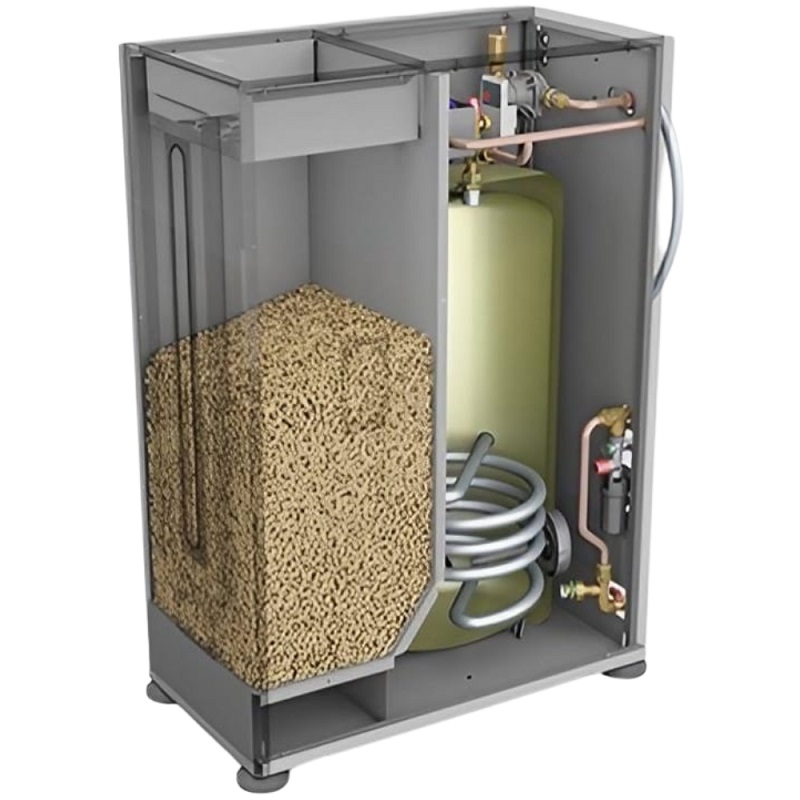

A stainless steel domestic hot water tank, immersed in the primary of the BIOCLASS IC pellet boiler, ensures high domestic hot water production, capable of supplying multiple hot water points simultaneously.
It also includes an inertia buffer tank, a water circulation pump, and expansion vessels for heating and domestic hot water as standard.
An innovative return preheating system allows direct return to the BIOCLASS IC pellet boiler at temperatures up to 25°C.
Description
iConnect connectivity for remote control via the app.
Automatic burner and heat exchanger cleaning for minimal maintenance.
Exceptional efficiency with up to 93.1% efficiency and optimized consumption.
Easy installation thanks to the HotStream system, which allows direct return of cold air.
FLAME LOGIC system for optimal and efficient combustion.
5-year warranty on the boiler body for increased reliability.
Ideal for complete heating and renewable energy solutions. Technical specifications of the BIOCLASS IC 25 model:
Nominal power: 25.3 kW
Efficiency at nominal load: 93.1%
Power at partial load: 6.9 kW
Efficiency at partial load: 93.2%
Boiler water volume: 73 liters
Reserve tank: optional
Flue outlet diameter: 100 mm
Dimensions
Width: 1310 mm
Height: 670 mm
Depth: 820 mm
