Home/DIY and home automation/Heaters and boilers/Diesel boilers/Baxi Gavina PLUS ECO 20 GTI 23.3 kW Boiler, Heating and Domestic Hot Water
Please sign in so that we can notify you about a reply

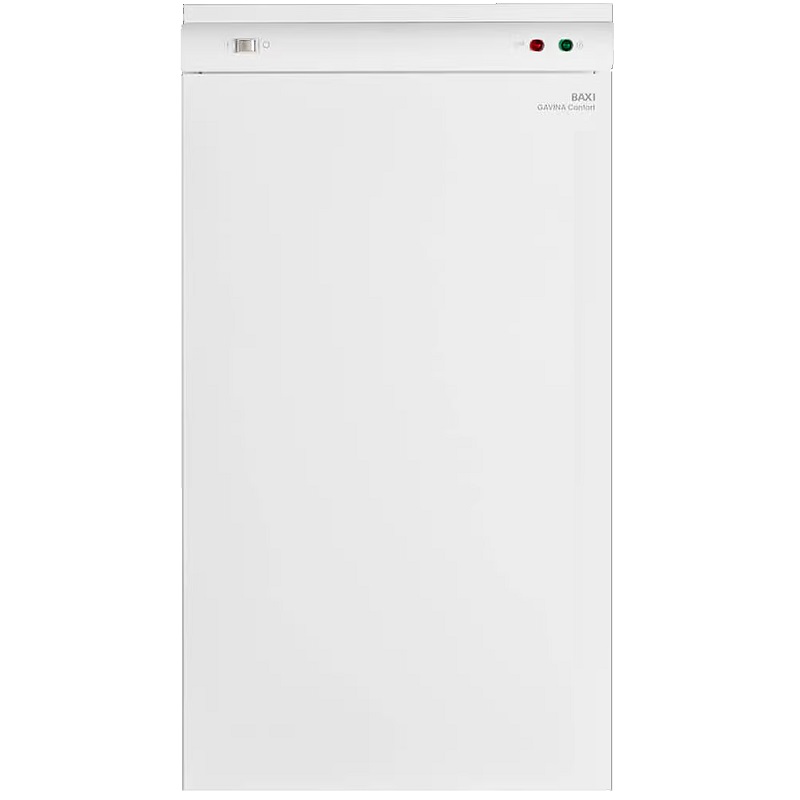

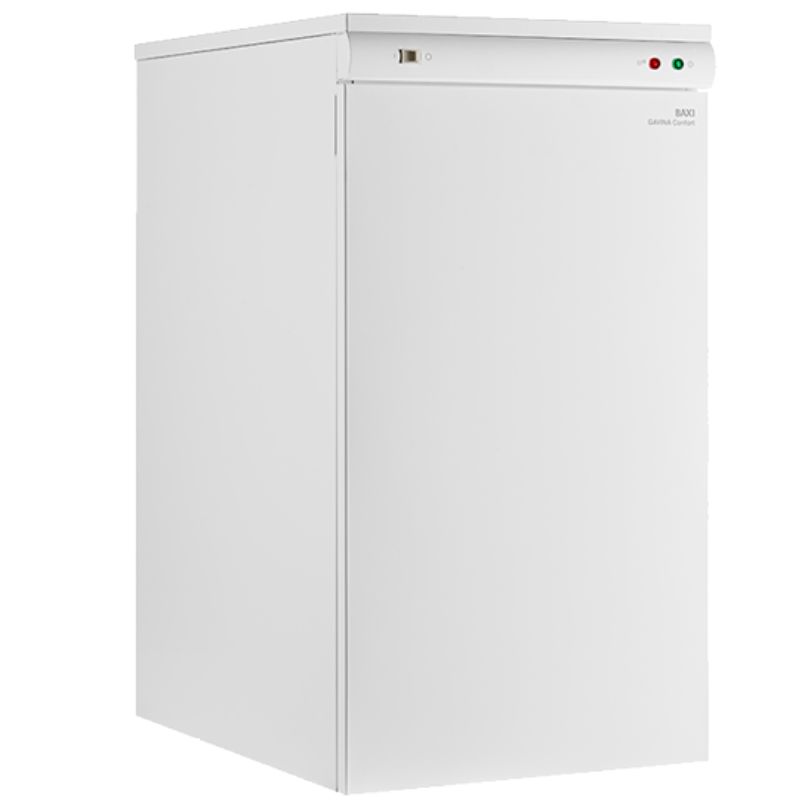

Baxi Gavina PLUS ECO 20 GTI 23.3 kW Boiler, Heating and Domestic Hot Water
With models from 20 to 30 kW, the Gavina range offers low-temperature oil-fired boilers made of steel. The GTA and GTAF versions are equipped with a 120-liter storage tank.
Easy to use: steel boilers with an intuitive analog control panel.
Low temperature: compatible with radiator and underfloor heating systems.
Small footprint: Gavina boilers are very compact, allowing for installation in small spaces.
Easy installation: they include an expansion vessel, a safety valve, a filling valve, an analog thermo-hygrometer, a burner, and a high-performance circulator.
Very low emissions: the boiler is equipped with a high-performance burner with very low NOx emissions.

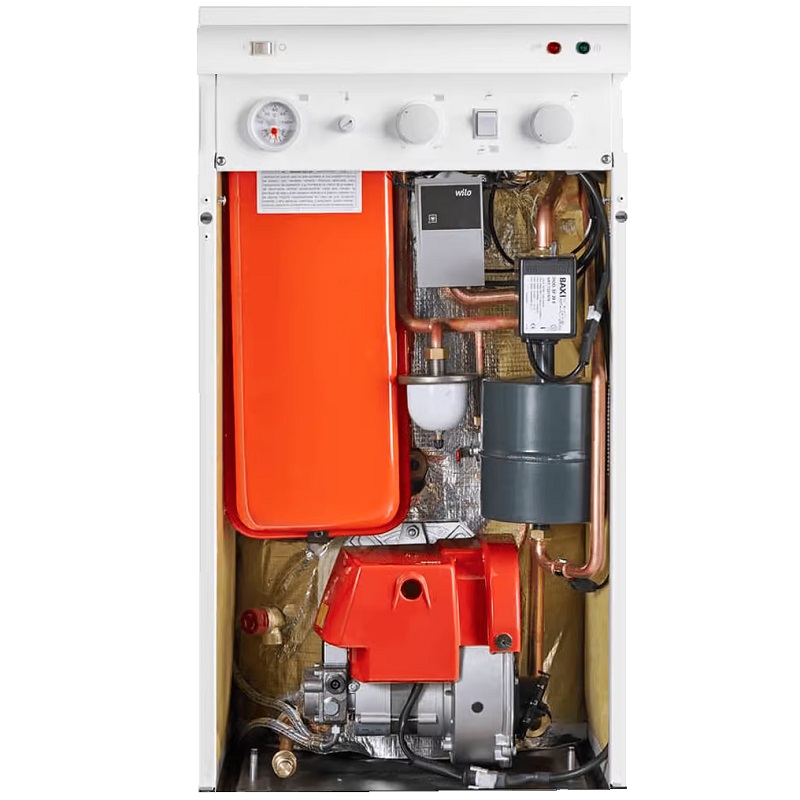

Specifications
Main switch
Burner lock indicator
Voltage indicator
DHW temperature controller
Heating-DHW service switch
Heating temperature controller
Safety thermostat
Hydrometer
10 L expansion vessel
1/2" safety valve
Burner (supplied as an accessory)
Drain valve
Adjustable foot
DHW heat exchanger
3-way valve
Circulator
Filling valve
DHW expansion vessel
Air intake with Ø80 duct
DHW thermostat / AQS thermometer
DHW circulator / AQS circulator
DHW tank / AQS tank
Flexbrane safety group / Flexbrane safety group
Nominal heat output of the unit (80/60 °C): 23.3 kW
Efficiency at nominal output (80/60 °C): 95%.
Partial load efficiency (30%) (80/60 °C): 98%.
NOx emissions: 110.6 mg/kWh.
Approximate net weight: 122 kg. Heating energy efficiency class: B.
Return/supply connections: 3/4".
Boiler type: Oil-fired boilers
Energy class: B
Power output: Up to 25 kW
Living area: Up to 150 m²
Hot water consumption: 1 shower + 1 tap
DHW profile: XL
Dimensions and weight
Height: 850 mm
Width: 450 mm
Depth: 600 mm
Net weight: 126 kg
With models from 20 to 30 kW, the Gavina range offers low-temperature oil-fired boilers made of steel. The GTA and GTAF versions are equipped with a 120-liter storage tank.
Easy to use: steel boilers with an intuitive analog control panel.
Low temperature: compatible with radiator and underfloor heating systems.
Small footprint: Gavina boilers are very compact, allowing for installation in small spaces.
Easy installation: they include an expansion vessel, a safety valve, a filling valve, an analog thermo-hygrometer, a burner, and a high-performance circulator.
Very low emissions: the boiler is equipped with a high-performance burner with very low NOx emissions.
Specifications
Main switch
Burner lock indicator
Voltage indicator
DHW temperature controller
Heating-DHW service switch
Heating temperature controller
Safety thermostat
Hydrometer
10 L expansion vessel
1/2" safety valve
Burner (supplied as an accessory)
Drain valve
Adjustable foot
DHW heat exchanger
3-way valve
Circulator
Filling valve
DHW expansion vessel
Air intake with Ø80 duct
DHW thermostat / AQS thermometer
DHW circulator / AQS circulator
DHW tank / AQS tank
Flexbrane safety group / Flexbrane safety group
Nominal heat output of the unit (80/60 °C): 23.3 kW
Efficiency at nominal output (80/60 °C): 95%.
Partial load efficiency (30%) (80/60 °C): 98%.
NOx emissions: 110.6 mg/kWh.
Approximate net weight: 122 kg. Heating energy efficiency class: B.
Return/supply connections: 3/4".
Boiler type: Oil-fired boilers
Energy class: B
Power output: Up to 25 kW
Living area: Up to 150 m²
Hot water consumption: 1 shower + 1 tap
DHW profile: XL
Dimensions and weight
Height: 850 mm
Width: 450 mm
Depth: 600 mm
Net weight: 126 kg
