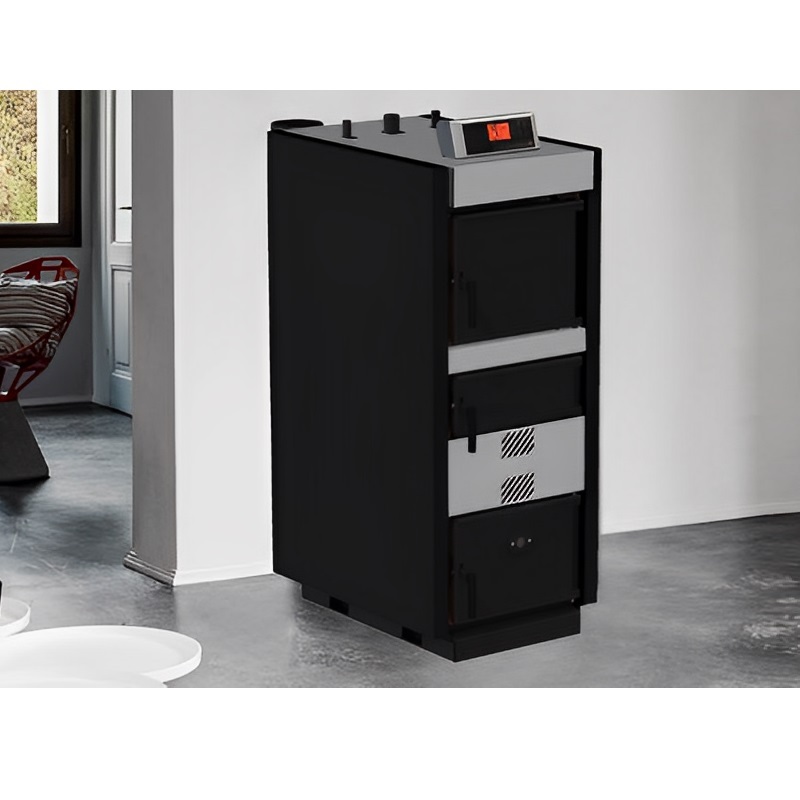

Metlor Pyro 25 Evolution Wood-Fired Boiler
The CL25 Pyro Evolution is a reverse-flame wood-fired boiler, ideal for central heating and domestic hot water production.
The large, high loading chamber optimizes the gasification process. The double-walled loading chamber produces less condensation, increases the gasification rate, and makes the surface easier to clean.
Automatic flue gas bypass system activated when the loading door is opened.
Automatic shutoff in case of lack of fuel.
Smoke detector.
High efficiency thanks to the tubular water heating surface with flue gas exchange.
Integrated safety coil for overheating protection.
Elegant electronic control panel with well-organized function keys and a large LCD display.
Connection for room thermostat.
Primary and secondary air regulation.
Status and fault indicators. Energy savings and safety thanks to the advanced electronic board.
Nominal power: 25 kW
Efficiency: 90.9%
Power delivered to water: 25 kW
Boiler volume: 87 liters
Maximum water temperature: 90 °C
Fuel temperature: 131 °C
CO(%) (13% O2): 0.012
NOx, VOCs, Particulates: 189, 17, 28 mg/m3
Flue outlet: Ø 160 mm
Maximum log length: 500 mm
Dimensions (H x W x D): 1425 x 595 x 1175 mm
Weight: 465 kg
