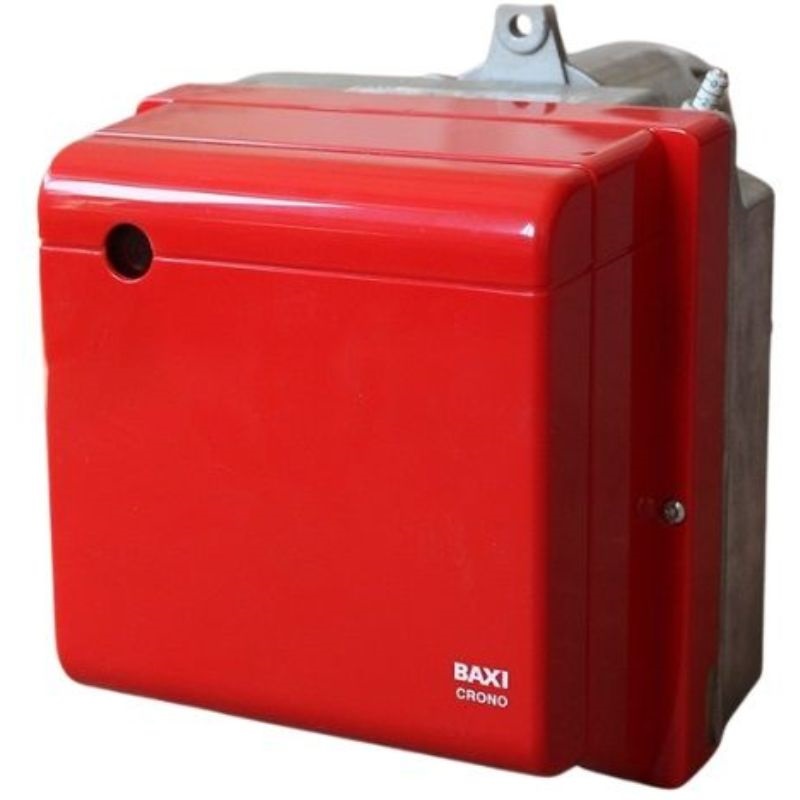

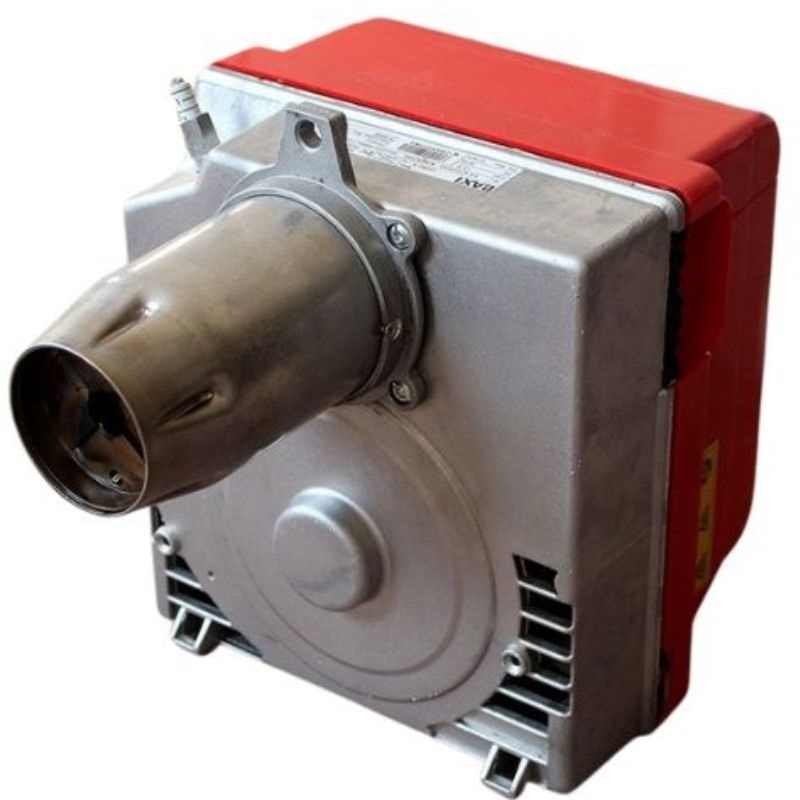

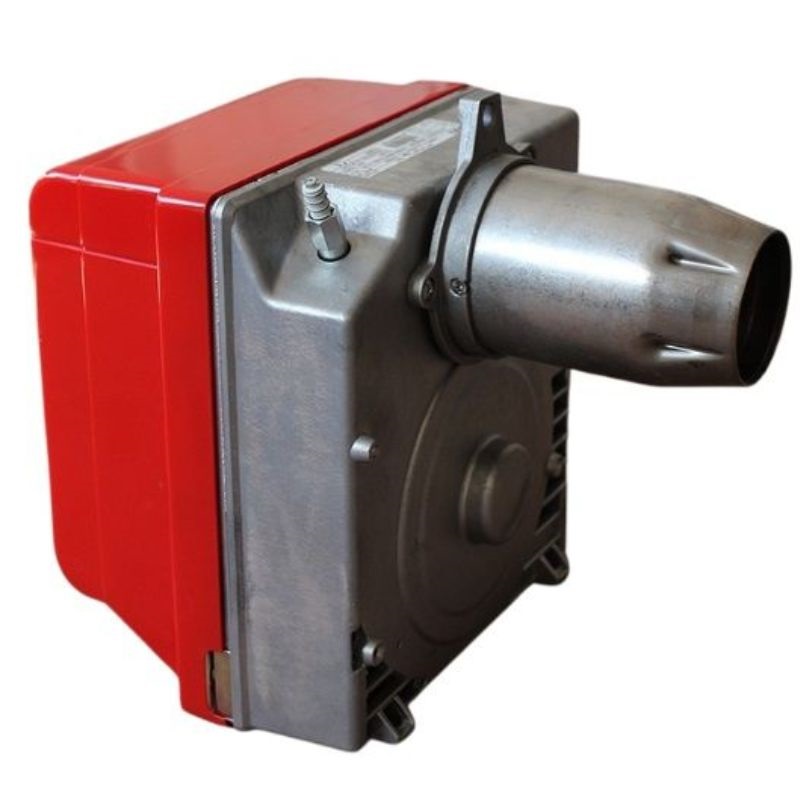

Baxi Crono 3L Oil Burner (21.3 - 38.0 kW)

Baxi Crono 3L Oil Burner (21.3 - 38.0 kW)

The Baxi CRONO range of oil burners is designed for use with both positive and negative pressure combustion chambers.
Its high-pressure mechanical atomization system ensures highly efficient combustion, and its fully automatic operation is controlled by an electronic control unit incorporating an ignition transformer and a photoresistor.
Complete flameout protection is provided by a photoresistor and automatic purging of the combustion chamber before ignition.

The new turbine and motor design offers improved performance and increased reliability.
Available in single and dual power versions.
The air regulator is located outside the housing.
Baxi oil burners guarantee very stable combustion, thus reducing pollutant emissions.
These burners are suitable for burning fuel oil with a maximum viscosity of 6 cSt at 20°C.
High-pressure mechanical atomization system with highly efficient combustion.
Fully automatic operation.
Complete flameout protection via photoresistor.
Automatic combustion chamber purging before each ignition.
Variable heating element and thermostat preset to 55°C.
External air regulator.
Secure electrical connections.
Very low noise level.
Removable electrode-nozzle assembly from the rear.
Solenoid valve integrated into the fuel pump.
Electrical connector integrated into the housing.
Power supply: single-phase 230 V - 50 Hz.

Technical specifications
Fuel flow rate (min/max): 1.8/3.2 kg/h.
Power: 21.3/38 kW.
Current: 0.85 A.
Maximum power consumption: 180 W.
Dimensions
Type: Oil burner
Height: 247 mm
Width: 234 mm
Depth: 320 mm
Weight: 11 kg
Net weight: 10 kg.
