Baetulenn Baeheat B30 24 kW heat pump

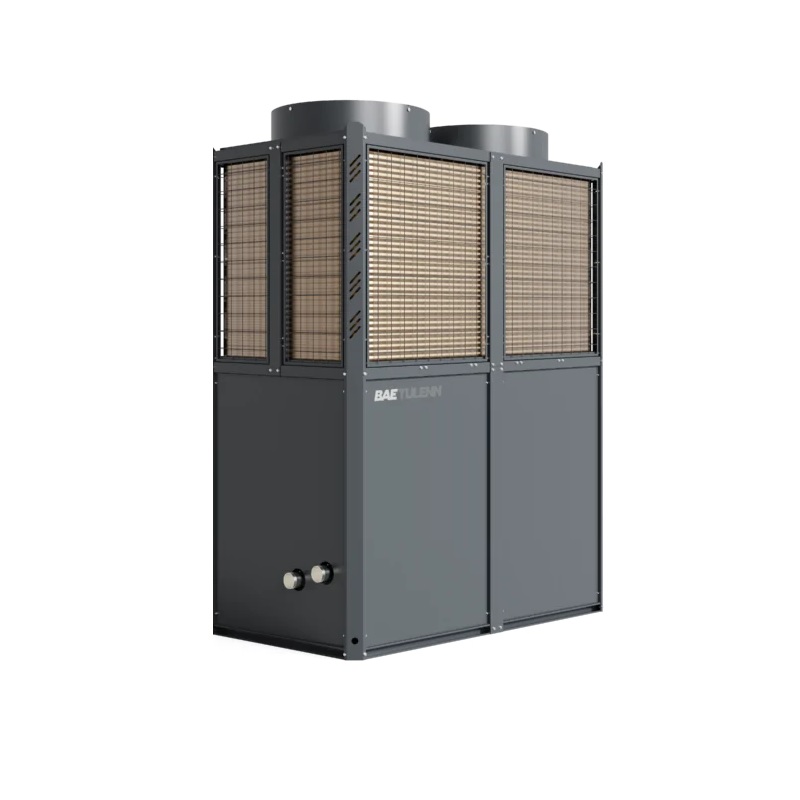

Baetulenn Baeheat B30 24 kW Heat Pump

BAEHEAT B30 is the Baetulenn brand's high-power heat pump range for renewable heat production.
Its high power makes the BAEHEAT B30 an ideal product for the residential market as well as the tertiary sector for high-end production at high temperatures and high consumption.
Maximum flow temperature: 95ºC
Sheet steel casing coated with weather-resistant polyester paint. Sturdy structure with galvanized steel support frame.
Compressor
High-quality Copeland Scroll compressors, specifically designed for heat production with a heat pump, with a much wider operating range for different atmospheric temperatures, specially designed for high suction and temperature
exhaust and condensing systems at high temperatures and pressures, higher efficiency, reduced noise, superior reliability, and a longer service life.
Fans
Vertical fans reduce noise levels thanks to their high power efficiency. External Battery
The hydrophilic aluminum external heat exchanger adopts a cross-type multi-flow design to make heat exchange more uniform; the design greatly improves the heat exchange capacity and efficiency of exchange between the aluminum foil and the circulating air.
The GOLDEN FINN coating on the heating coils provides superior corrosion resistance, especially in marine environments. This technology uses an epoxy coating that not only protects against salt corrosion but also improves heat exchange efficiency.
GOLDEN FINN Treatment
The GOLDEN FINN coating on the heating coils provides superior corrosion resistance, especially in marine environments. This technology uses an epoxy coating that not only protects against salt corrosion but also improves heat exchange efficiency. Waterfront Exchange
Shell and Tube Heat Exchanger: Adopts a high-efficiency internally threaded copper coil, whose heating surface area is 3.6 times that of a conventional smooth coil. The larger diameter water loop design ensures smooth water flow, thus improving energy efficiency.
Includes a flow switch for anti-freeze protection.
High-energy efficiency configuration to increase the unit's overall performance. Controller
Based on the reading of the temperature sensor installed in the water return pipe, the controller manages the operation of the entire system.
Frost protection
Intelligent defrosting by pressure and temperature
Hourly and weekly programming
Nominal heating output: 24.00 kW
Heating output / Consumption (AW 7/65): 19.00 / 6.51 kW
SCOPDHW (Medium climate, Tamb. 7ºC): 3.02 ºC
SCOPDHW (Warm climate, Tamb. 14ºC): 3.39 ºC
Operating range (Min-Max): -10 / 48 ºC
Frame and tube changer: 2.58 m³/h
Connection diameter: DN40
Power supply: 380-420 N / 3 / 50 V / Ø / Hz
Maximum current: 25.49 A
Maximum power: 13.42 kW
Dimensions
Anchor: 820 mm
Length: 1600 mm
Height: 1600 mm
Weight: 280 kW
