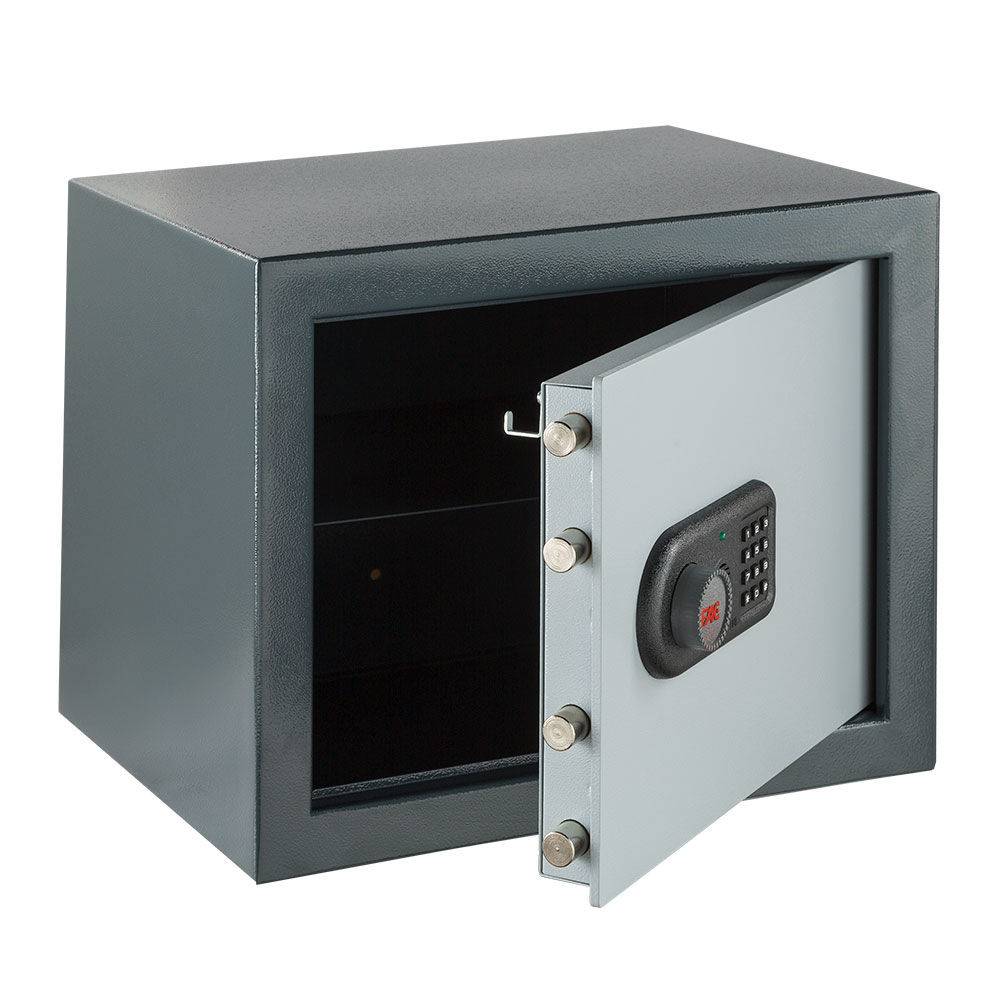

Arca flows Electric Fac overlay 103-esp.
 - Exterior measurements: 380 x 485 x 350 mm.
 - Interior measurements: 375 x 480 x 280 mm.
 - Door: 6 mm steel sheet. With 4 pins of 20 mm. Of ø.
 - Weight: 26 kg.
 - This safe is designed to work with an electronic combination opening system and a double bitted keyed lock.
 Its main components, as well as the materials used in them, are the following:
> Welding: all the welds for the manufacture of the safes are made with the addition of mig-mag continuous wire material .
> opening and closing system
 elements
> mechanical lock: double bitted key, with double bit key.
> electronic lock: integrated electronic circuit made of smd, with non-volatile memory. Possibility of programming user codes. User passwords allow combinations from 0 to 20 digits, which means being able to enter more than 10,000,000,000,000 different combinations. It also has a low battery detector and blocking due to accumulation of errors.
> opening: the opening is made based on the correct use of the electronic key, which unlocks an electromagnet allowing the free horizontal movement of the side levers , by means of a double bitted lock, which is activated by means of a knob making a 360º turn clockwise.
> closing: closing is done by turning the knob in an anti-clockwise direction, leaving the system locked again by means of the electromagnet.
 > anchoring: autonomous safety box prepared for fixing with 3 holes in the bottom of the drawer and 4 in the base of ø 8 mm. The fixing system (screws, metal plugs, chemical plugs, etc.) will depend on the surface where the safe is to be installed (wood, concrete, etc.).
 More information at attached technical sheet.
