Home/DIY and home automation/Heaters and boilers/Heat pump/Wolf FHA-06/07-230V 8.0 kW Air Source Heat Pump. Monobloc (230 V) R32
Please sign in so that we can notify you about a reply

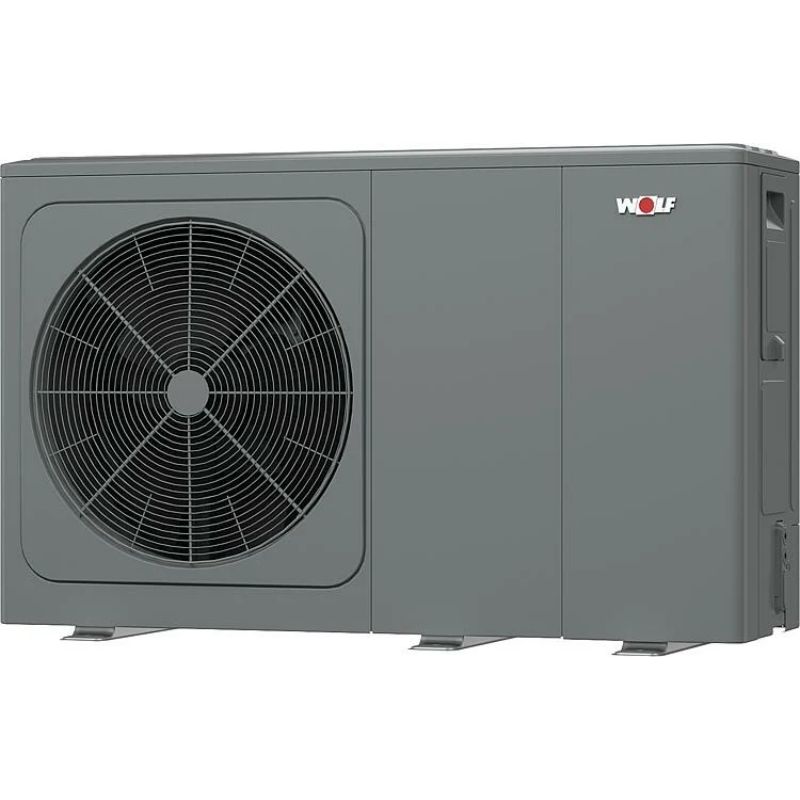

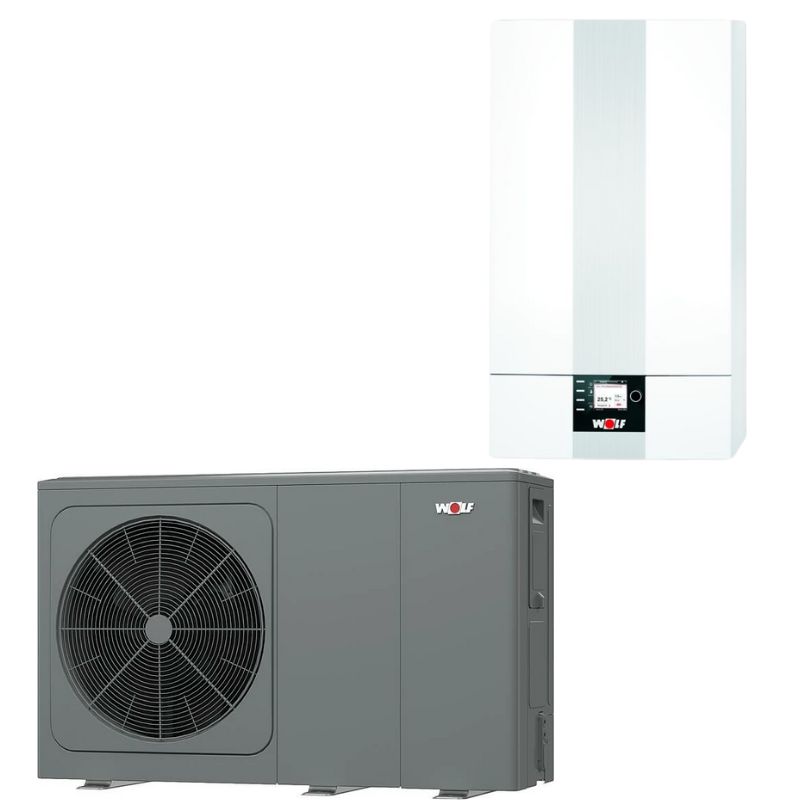

Wolf FHA-06/07-230V 8.0 kW Air Source Heat Pump. Monobloc (230 V) R32
The Wolf FHA 06/07-230V model stands out for its excellent energy efficiency, rated A++. It offers remarkable heating power ranging from 2.8 to 7.7 kW, with a COP of 5.2, and a cooling power range of 2.8 to 6.8 kW, with an EER of 4.4. Its ability to reach temperatures of up to 65°C ensures efficient and quiet operation, with low noise levels. It uses R32/675 refrigerant, recognized for its low environmental impact, and offers the option of models with or without electric heaters, thus adapting to the specific needs of each project.
Models available: with or without electric heater. Heating energy class W35: A+++, D: A++
Heating energy class W55: A+++, D: A++
Seasonal energy efficiency ηs, average climate, W35%: 167
Seasonal energy efficiency ηs, average climate, W55%: 129
Heating mode, power range, A7/W35, kW: 2.8-7.7
COP A7/W35: 5.2
Cooling mode, power range, A35/W18, kW: 2.8-6.8
EER A35/W18: 4.4
Max. Without heater (°C): 65
Sound pressure (reduced mode at 3 m), dB(A): 38
Refrigerant: R32/675
Supply/return/DHW connections: 28 mm
Required protection for heater: 35 A (1 wire) - [16 A (3 wire)] (Type B)
Control power supply: 1 wire (3 wires) / 230 V / 50 Hz
Required protection for indoor unit: 16 A (Type B)
Protection rating: IP20
Minimum primary flow rate: 13 l/min
Nominal water flow rate (5K): 20 l/min
Available pressure at nominal flow rate: 740 mbar
Maximum permissible operating pressure: 3 bar
Supply/return connections: R 1"
Compressor type: Twin rotary
Compressor rotation frequency range: 30-96 rpm
Nominal fan flow rate: 2770 m³/h
Maximum ErP sound power: 58 dB(A)
Maximum sound power in night mode: 55 dB(A)
Power supply: 1fi (3 wires): 230 V / 50 Hz
ODU protection required: 25 A (Type B)
Standby consumption: 12 W
Protection rating: IP24
Indoor unit
Dimensions (W x H x D): 440 x 790 x 340 mm
Weight (empty): 27 kg
Outdoor unit
Dimensions (W x H x D): 1295 x 718 x 429 mm
Weight: 79 kg
The Wolf FHA 06/07-230V model stands out for its excellent energy efficiency, rated A++. It offers remarkable heating power ranging from 2.8 to 7.7 kW, with a COP of 5.2, and a cooling power range of 2.8 to 6.8 kW, with an EER of 4.4. Its ability to reach temperatures of up to 65°C ensures efficient and quiet operation, with low noise levels. It uses R32/675 refrigerant, recognized for its low environmental impact, and offers the option of models with or without electric heaters, thus adapting to the specific needs of each project.
Models available: with or without electric heater. Heating energy class W35: A+++, D: A++
Heating energy class W55: A+++, D: A++
Seasonal energy efficiency ηs, average climate, W35%: 167
Seasonal energy efficiency ηs, average climate, W55%: 129
Heating mode, power range, A7/W35, kW: 2.8-7.7
COP A7/W35: 5.2
Cooling mode, power range, A35/W18, kW: 2.8-6.8
EER A35/W18: 4.4
Max. Without heater (°C): 65
Sound pressure (reduced mode at 3 m), dB(A): 38
Refrigerant: R32/675
Supply/return/DHW connections: 28 mm
Required protection for heater: 35 A (1 wire) - [16 A (3 wire)] (Type B)
Control power supply: 1 wire (3 wires) / 230 V / 50 Hz
Required protection for indoor unit: 16 A (Type B)
Protection rating: IP20
Minimum primary flow rate: 13 l/min
Nominal water flow rate (5K): 20 l/min
Available pressure at nominal flow rate: 740 mbar
Maximum permissible operating pressure: 3 bar
Supply/return connections: R 1"
Compressor type: Twin rotary
Compressor rotation frequency range: 30-96 rpm
Nominal fan flow rate: 2770 m³/h
Maximum ErP sound power: 58 dB(A)
Maximum sound power in night mode: 55 dB(A)
Power supply: 1fi (3 wires): 230 V / 50 Hz
ODU protection required: 25 A (Type B)
Standby consumption: 12 W
Protection rating: IP24
Indoor unit
Dimensions (W x H x D): 440 x 790 x 340 mm
Weight (empty): 27 kg
Outdoor unit
Dimensions (W x H x D): 1295 x 718 x 429 mm
Weight: 79 kg
